INSTALLATION - 70CM

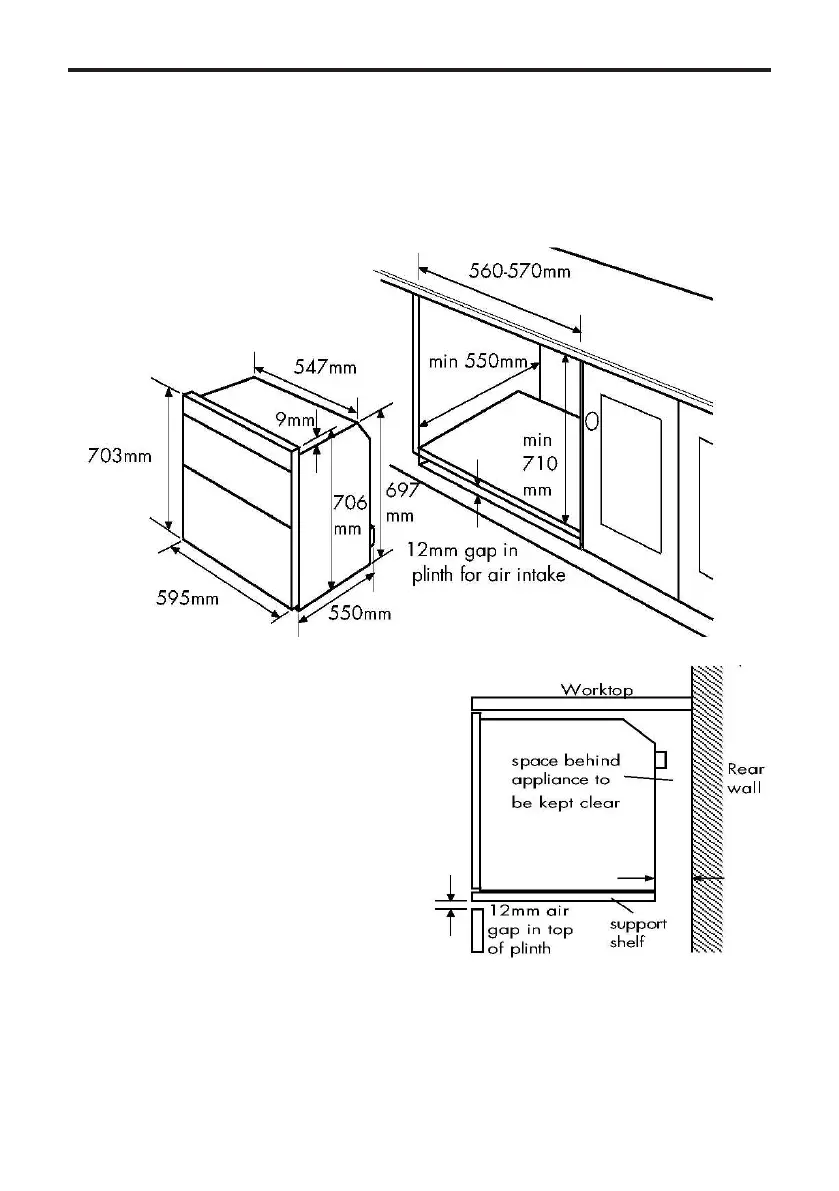

Method 3: Housing unit with internal
height 710mm or more
Note:Youwillnotneedthe4runnersand
2 trims that are packed with the oven for
this installation.
1. When installed in a typical 600mm
deep built in housing unit, the false back
should be removed from the housing unit
to provide the necessary depth for instal-
lation.
2. When the false back is removed, it is
normally the case that the support shelf
for the appliance leaves a gap between
the back edge and the wall of approxi-
mately 80mm.
3. If no gap occurs between the back
edge of the shelf and the wall behind the
unit, you must create a gap of at least
30mm by shortening the shelf.
Removeanyxingsthatmaypreventen-
try of the oven into housing, or obstruct
the gas inlet pipe. The cabinetry should
bekeptstructurallysoundbyxingto
adjacentcabinets,ooror
worktop.
