Connect to the electricity supply
Warning: This appliance must be
earthed.
The appliance must be installed by a
competent electrician using a double
pole control unit of 30 ampere minimum
capacity with 3mm minimum contact
separation at all poles.
We recommend that the appliance is
connected by a qualified electrician
who is a member of the N.I.C.E.I.C.
and who will comply with the I.E.E.
and local regulation.
1. Access to the mains terminal is
gained by opening the terminal
block cover at the rear of the
appliance (use a small flat-bladed
screwdriver).
2. Connection should be made with
6.0mm
2
twin and earth cable.
3. First strip the wires, then push the
cable through the cable clamp in
the terminal block cover.

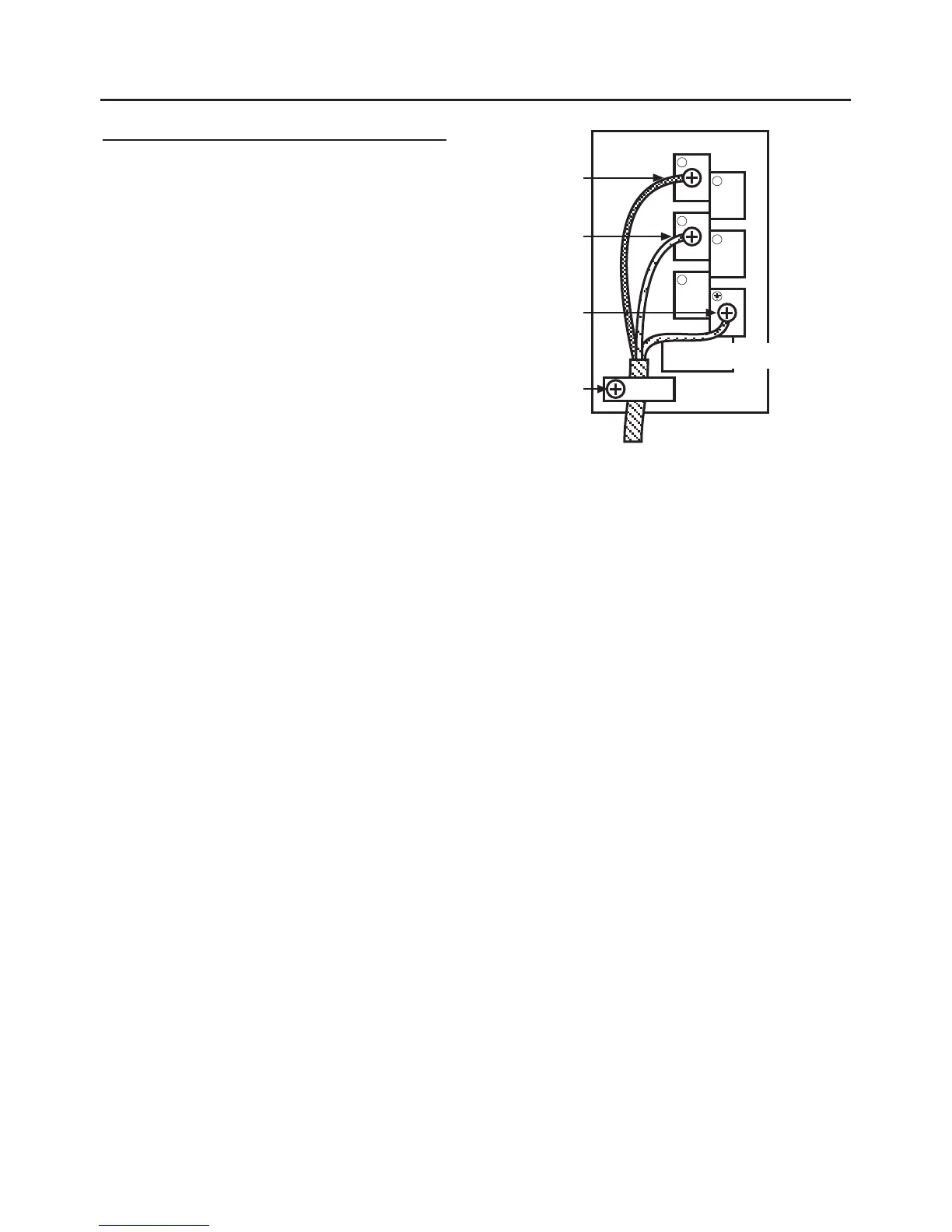

4. Connect the cable to the terminal
block and tighten the cable clamp
screw (see diagram).
5. Close the terminal box, ensuring
that the cover is engaged on the
locking tabs.
Important: ensure that you route all
mains and electrical cables well clear
of any adjacent heat source.
34
Installation Instructions
