This appliance is adjusted for NATURAL GAS at 20mbar ONLY.
The hob is suitable for conversion to Liquid Petroleum Gas BUTANE (G30) at 28-30 mbar and PROPANE
(G31) at 37 mbar by the following procedure using the kit supplied.
Replace the injectors with the corresponding injector from the table on page below.
First remove the burner caps and rings and with a socket spanner “B”, unscrew injector “A” (see fig.7).
The adjustment of the reduced rate position is as follows (fig. 8):
Light the burner and turn the knob to reduced rate position.
Remove the knob “M” which is simply inserted onto tap stem.
Insert a small screwdriver “C” into the top shaft “F” and turn the bypass screw left or right until flame of
the burner is conveniently regulated to the low position.
Make sure that when turning quickly from “Full on” position
to reduced rate position that the burner does not extinguish.
5. INSTALLATION INSTRUCTIONS

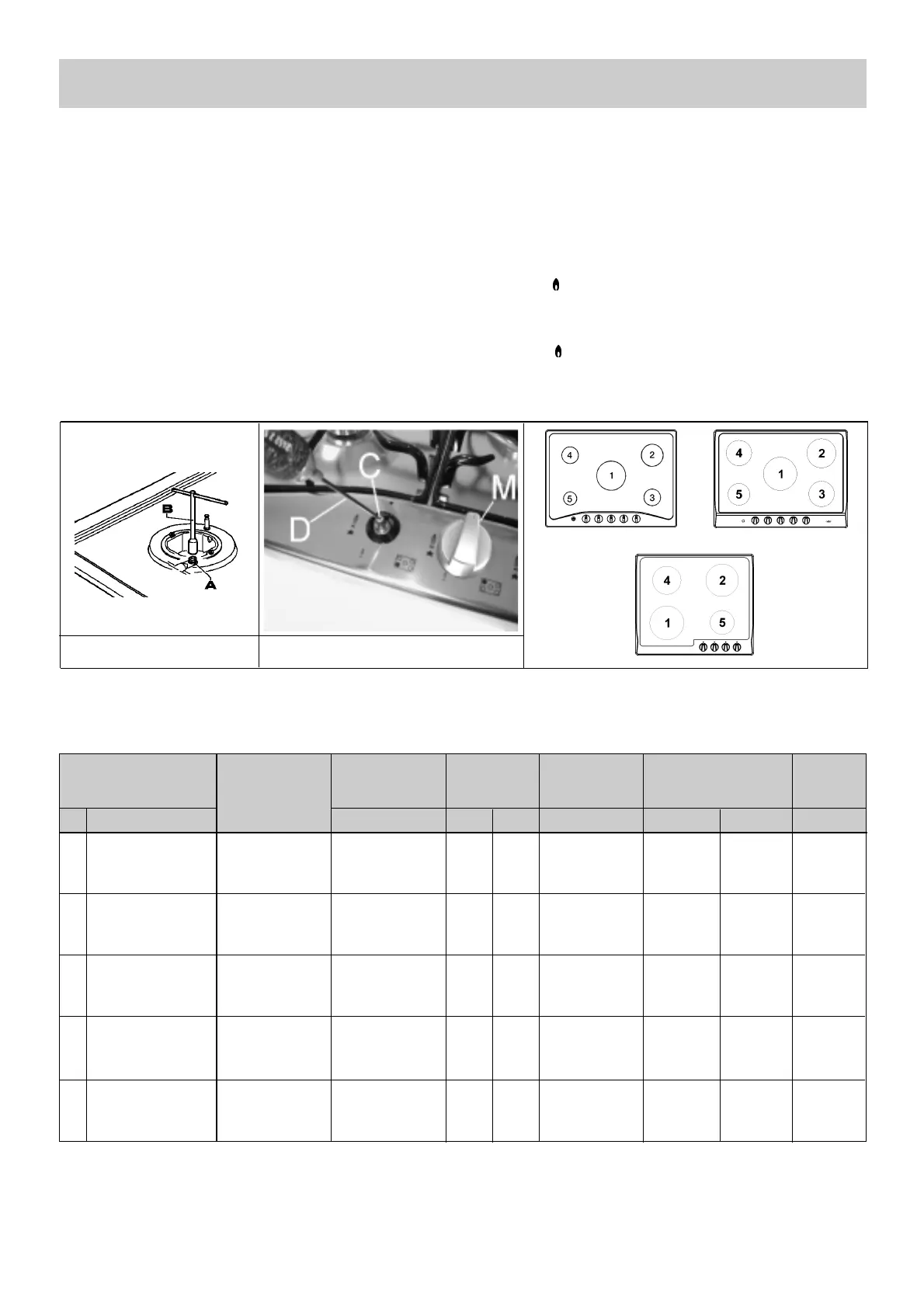

FIG. 7 FIG. 8
BUTANE 28 - 30 225 90 1400 3100 62
1 ULTRA RAPID PROPANE 37 222 90 1400 3100 62
NATURAL 20 295 121 Y 1400 3100 62
BUTANE 28 - 30 127 65 500 1750 32
4
SEMIRAPID
PROPANE 37 125 65 500 1750 32
REAR LEFT
NATURAL 20 167 97 Z 500 1750 32
BUTANE 28 - 30 102 58 500 1400 32
3
SEMIRAPID
PROPANE 37 100 58 500 1400 32
FRONT RIGHT
NATURAL 20 133 85 Y 500 1400 32
BUTANE 28 - 30 204 83 750 2800 41
2 RAPID PROPANE 37 200 83 750 2800 41
NATURAL 20 267 117 S 750 2800 41
BUTANE 28 - 30 73 50 400 1000 30
5 AUXILIARY PROPANE 37 71 50 400 1000 30
NATURAL 20 95 72 X 400 1000 30
BURNERS
N° DESCRIPTION
GAS
NORMAL
PRESSURE
NORMAL
RATE
INJECTOR
DIAMETER
BY
PASS
NOMINAL HEAT
INPUT (W)
mbar g/h l/h 1/100 mm MIN. MAX. 1/100 mm
BURNER TECHNICAL DATA TABLE
