5

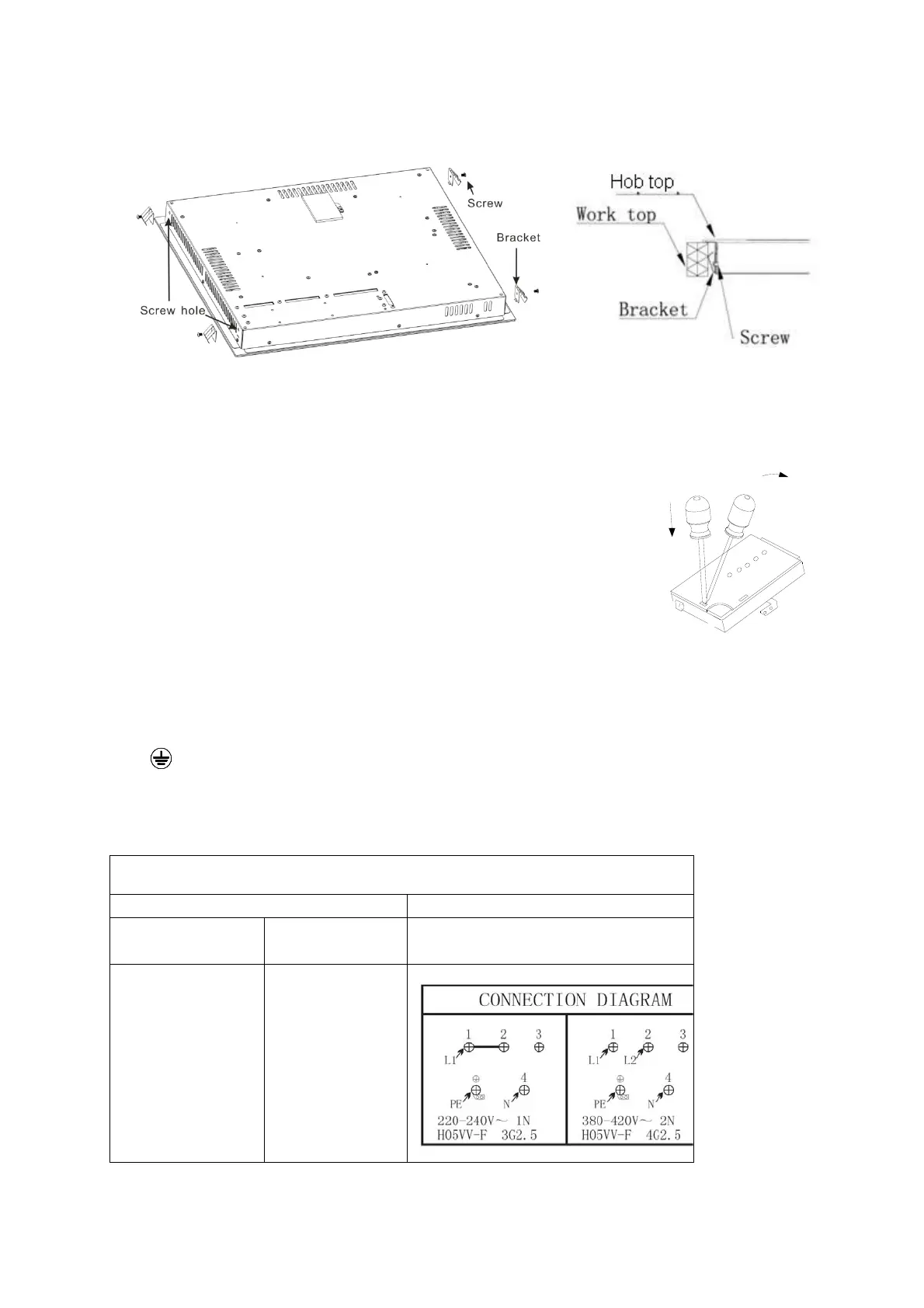

the bracket to the hob. These screws MUST be securely tightened. Depends on
different models,there may be 4-5 pieces of brackets for the hob.
Fitting guidelines
The ceramic hob is manufactured to work with one-phase
alternating current.The voltage rating of the ceramic hob
heating elements is 220-240V. Adapting the ceramic hob to
operate with two-phase current is possible by appropriate
bridging in the connection box according to the connection
diagram below. The connection diagram is also found on the
cover of the connection box. Remember that the connection
wire should match the connection type and the power rating
of the ceramic hob.
The connection cable must be secured in a strain-relief clamp.
Warning!
Remember to connect the safety circuit to the connection box terminal marked
with .The electricity supply for the ceramic hob must have a safety switch which
enables the power to be cut off in case of emergency. The distance between the
working contacts of the safety switch must be at least 3mm.
Before connecting the ceramic hob to the power supply it is important to read the
information on the data plate and the connection diagram.
wires for each domino hob with touch control models
Adaptive voltage range and wires The wiring diagram
220-240 1N～
50-60Hz
380-420 2N～
50-60Hz
KADO K 1/5
H05VV-F 3G2.5
H05VV-F
4G2.5
2
1
