Belmed PC-7 - Yoke Block Stand Installation; Stand Assembly and Flowmeter Attachment; Rubber Goods and Supply Connections

Installation Instructions
Flowmeter on Yoke Block Stand
Mobile stand assembly: Remove packaging from the base and column.
Push tapered end of column into base (gure 13).
Flowmeter attachment: Remove ½ in. diameter height adjustment rod
from column. Hand tighen the end of threaded rod into mounting adapter
located on bottom of owmeter. Lock rod into owmeter adapter by
tightening nut with ¾ in. open end wrench while holding rod. Replace rod
into column and tighten toggle screw at desired height (gure 2).
Rubber goods: Connect breathing bag to bottom of bag tee. Connect
90 adapter to front of tee. Connect corrugated breathing tube to 90°
adapter. Connect nasal inhaler to other end of breathing tube (gure 6).
Connect gas supply hoses to DISS ttings located on bottom of owmeter
(gure 5).
Test machine.
Note: If optional O2 resuscitator is purchased with machine, plug hose end
into female quick connect located on bottom of machine. Depress button
to determine O2 ows through resuscitator. For demand ow test, breathe
through face mask (gure 15).

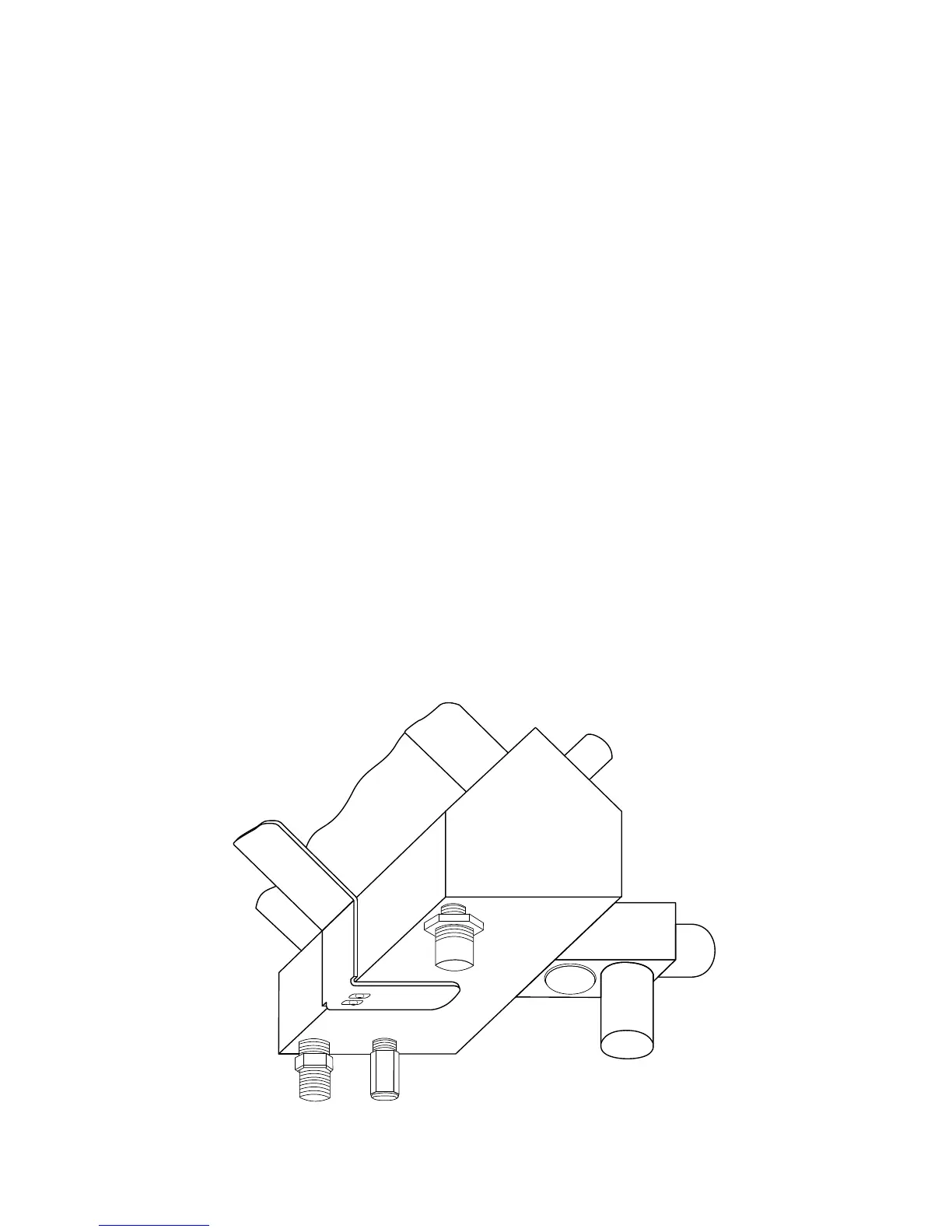

gure 2
Flowmeter Connection
to Mobile Stand
6
