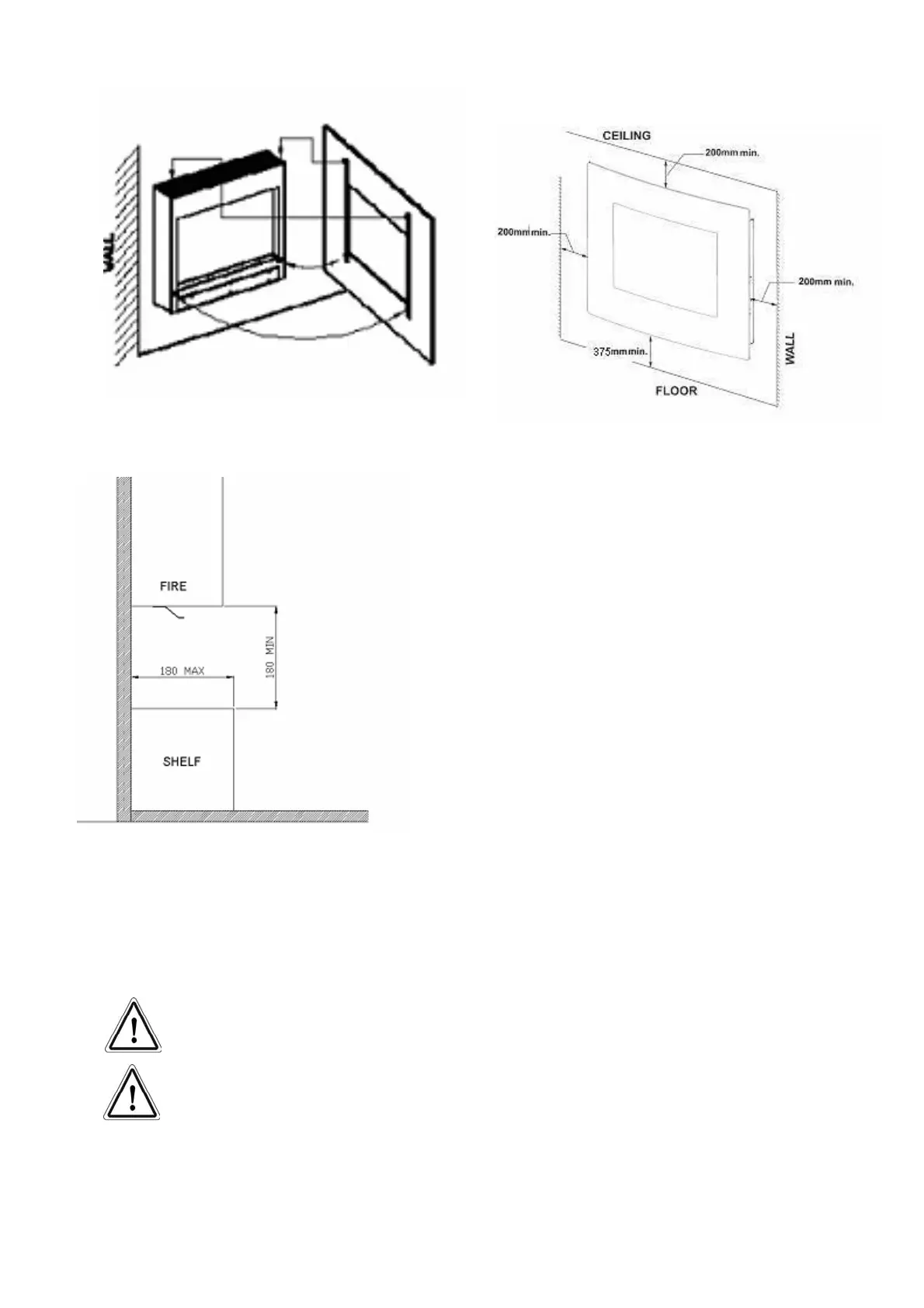

Diagram 3 Diagram 4 (Clearances – no deflector bracket)
Diagram 5 (Bottom Clearances – Deflector Bracket Fitted
Please note all other clearances remain the same)
Operating Instructions
This appliance can be operated by both remote control and manual button. Once the unit has been properly connected to an earthed electrical
outlet, turn on the main switch located on the left hand side of the appliance. A beep should be heard when the power is first applied.
CAUTION! The unit’s power cord must be connected to a properly grounded and
protected 220-240V outlet. Always use ground fault protection where
required by the electrical code.
WARNING! Do not operate the unit if it is damaged or has malfunctioned. If you
suspect the unit is damaged, please call a qualified service technician to
inspect and to replace any part of the electrical system if necessary.
NOTE! To use both remote and manual functions the manual on/off switch must be in ‘ON’
position.
