Benassi MC 3300 - Wheel Adjustments; Adjusting Wheel Track (Flange); Removing Wheel Spacers

OPERATION AND MAINTENANCE MANUAL
Page 13 of 22
In some versions of the machine, you can adjust the track of the wheels, for example to pass more easily
through narrow places.
You can modify the track of the wheels by inverting the wheels: take off the wheels, then assemble them
again placing outside the internal face and vice versa
Besides, you can adjust the wheels in the following ways as well:

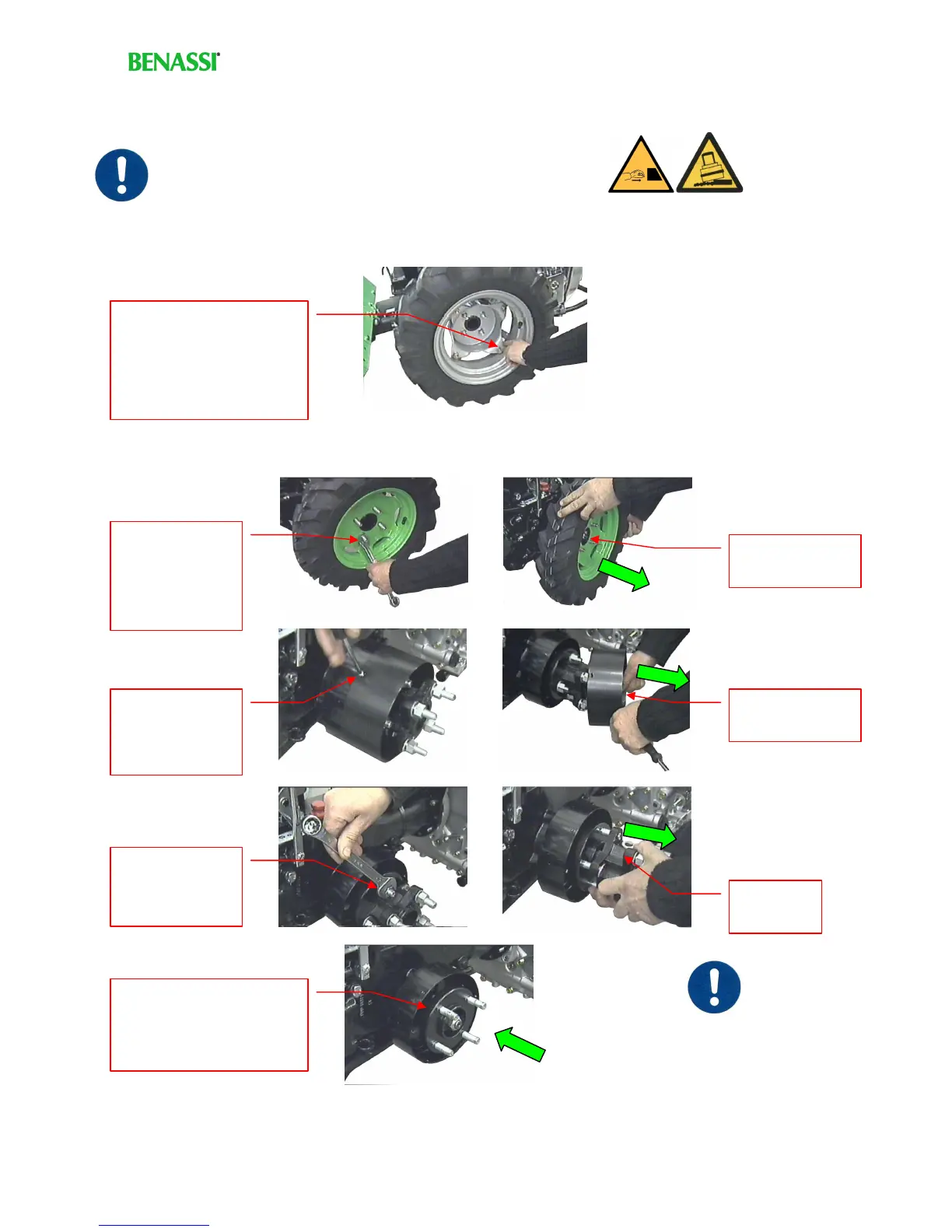

Picture 11 – Adjusting wheels with flange
Picture 12 - Taking off the wheels spacers
ONLY TRAINED AND
INFORMED STAFF SHOULD PERMORM THESE
OPERATIONS. TURN OFF THE MACHINE AND SET IT ON A FIRM
BEARING IN ORDER TO RAISE THE WHEELS FROM THE GROUND.
DANGER OF
BRUISING AND
OVERTURNING
Loosen the
screws of the
wheels with a
suitable spanner
(one wheel at a
time)
Take the wheel
out of the hub
Adjust the position of the
flange in order to place the
wheel more to the inside
or to the outside (only
versions with adjustable
rims)
Loosen the
screws on the
side with a
screwdriver
Take out the
spacer case
Loosen the
screws of the
spacer with a
suitable spanner
Take out
the spacer
Assemble the wheel
directly on the axle,
without spacer nor case
After adjusting
the machine, all the
screws should be well tightened and
the implements stable.
Make sure that the machine is
configured symmetrically and is
perfectly stable.
