Benassi MC 3300 - Tilling Depth Adjustment; Adjusting Tilling Depth

OPERATION AND MAINTENANCE MANUAL
Page 9 of 22
LARGHEZZA (mm)
280
370
460
570
VOLPINO
360
480
630
760
CASTORO
CUTTER WIDTH (mm)
Version of the machine with cutters
In this version the machine has cutters to till the soil. The external parts of the cutters and of the protective
case can be disassembled, so you can vary the width of the machine.
The widths you can obtain are as follows.

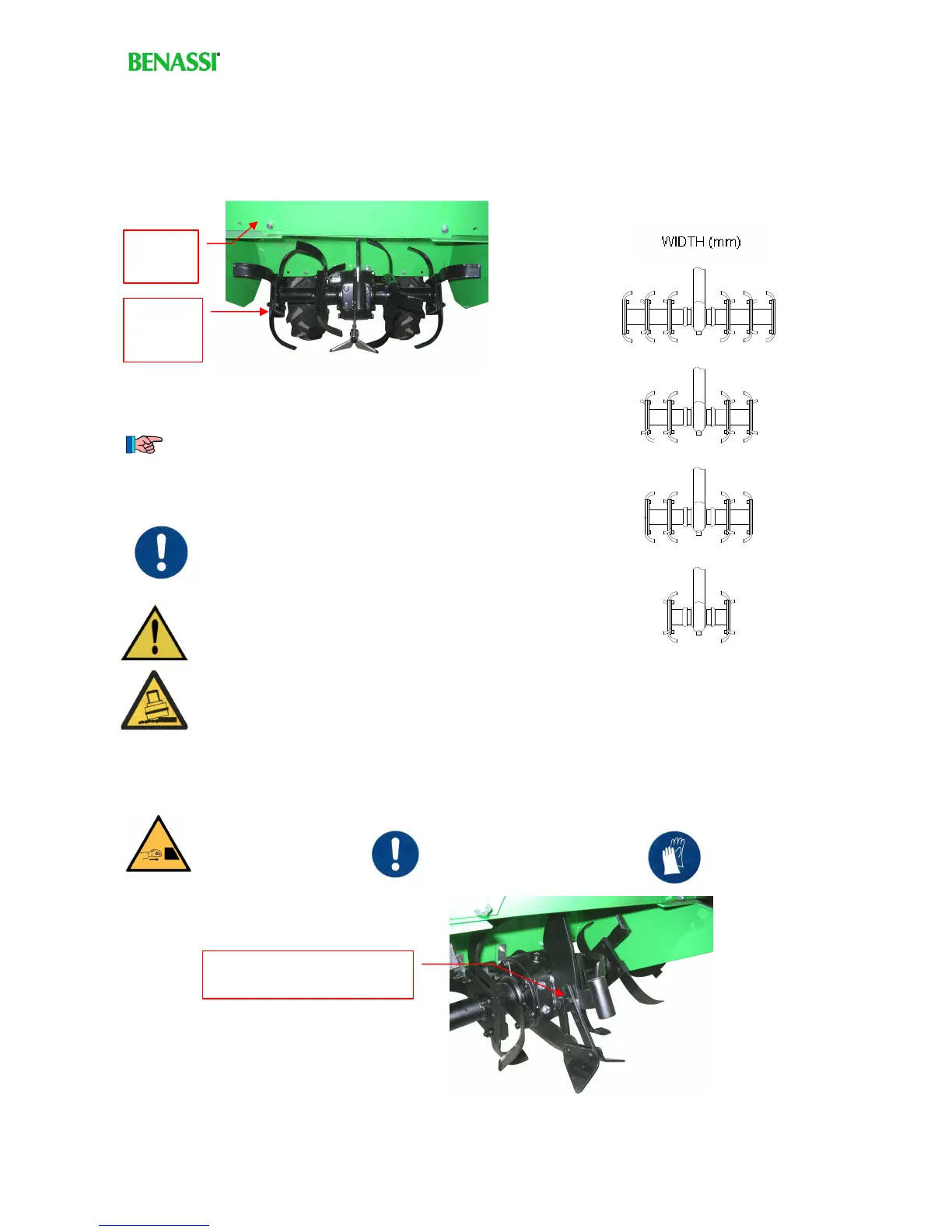

Picture 4 – Machine: version with cutters
To assemble the implements, consult the manuals
provided by the producing firm.
Adjusting the tilling depth
The hoe-shaped cutters have a device to adjust the depth of tilling of the soil.
Figura 5 – Adjusting the tilling depth
Protecti
ve case
Hoe-
shaped
cutters
Tilling depth adjuster
OPERATIONS TO
PERFORM WHEN THE
MACHINE IS TURNED
OFF AND STABLE
DANGR OF
BRUISING AND
CRUSHING
WEAR PROPER
GLOVES
WHATEVER WIDTH YOU DESIRE, THE
CUTTERS
MUST BE SET SYMMETRICALLY
WITH THE AXE OF THE MACHINE.
DANGER OF OVERTURNING AND OF
INSTABILITY: IF THE CUTTERS ARE NOT
ASSEMBLED SY
MMETRICALLY, THE
MACHINE IS UNSTABLE, DANGEROUS
AND CAN OVERTURN.
