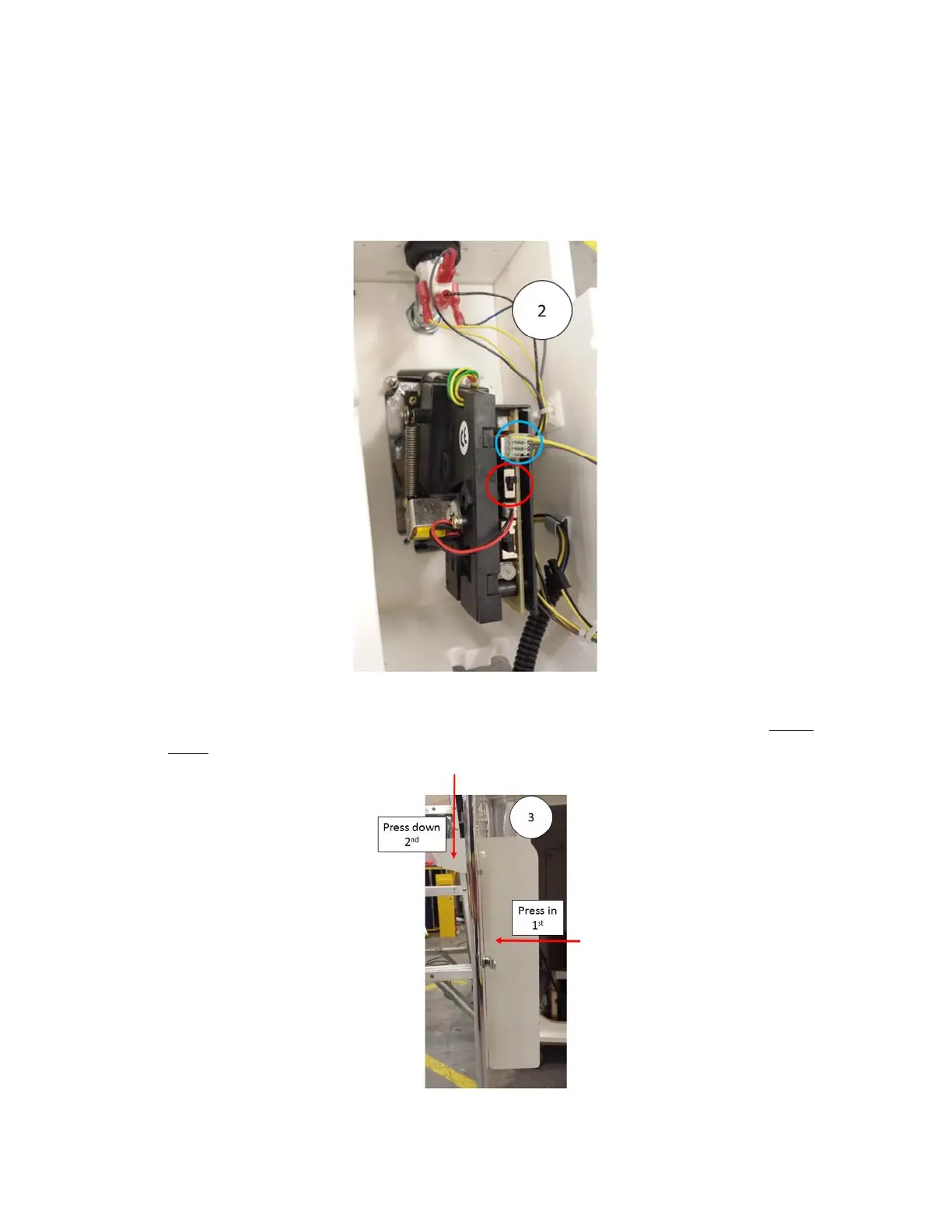

- Make sure the coin mech wires inside the button assembly shown in②. The wire connection
should be so the yellow wire (12V) is on the top (Blue Circle). The switch just below the wire
connection is positioned up (“NO” position, red circle).
*Note: there are location indicators written on the side of the coin mech to assist you.
- Take the two coin chute panels, face them so there is a slot in-between that will allow the coin
to travel to the coin box in the cabinet. Place the 2 panels in the door and lightly press in and
down on the panels to lock in place as shown in ③.
