Benchmark BG4650E - Wiring Diagram BG11,500 E

56
BG SERIES

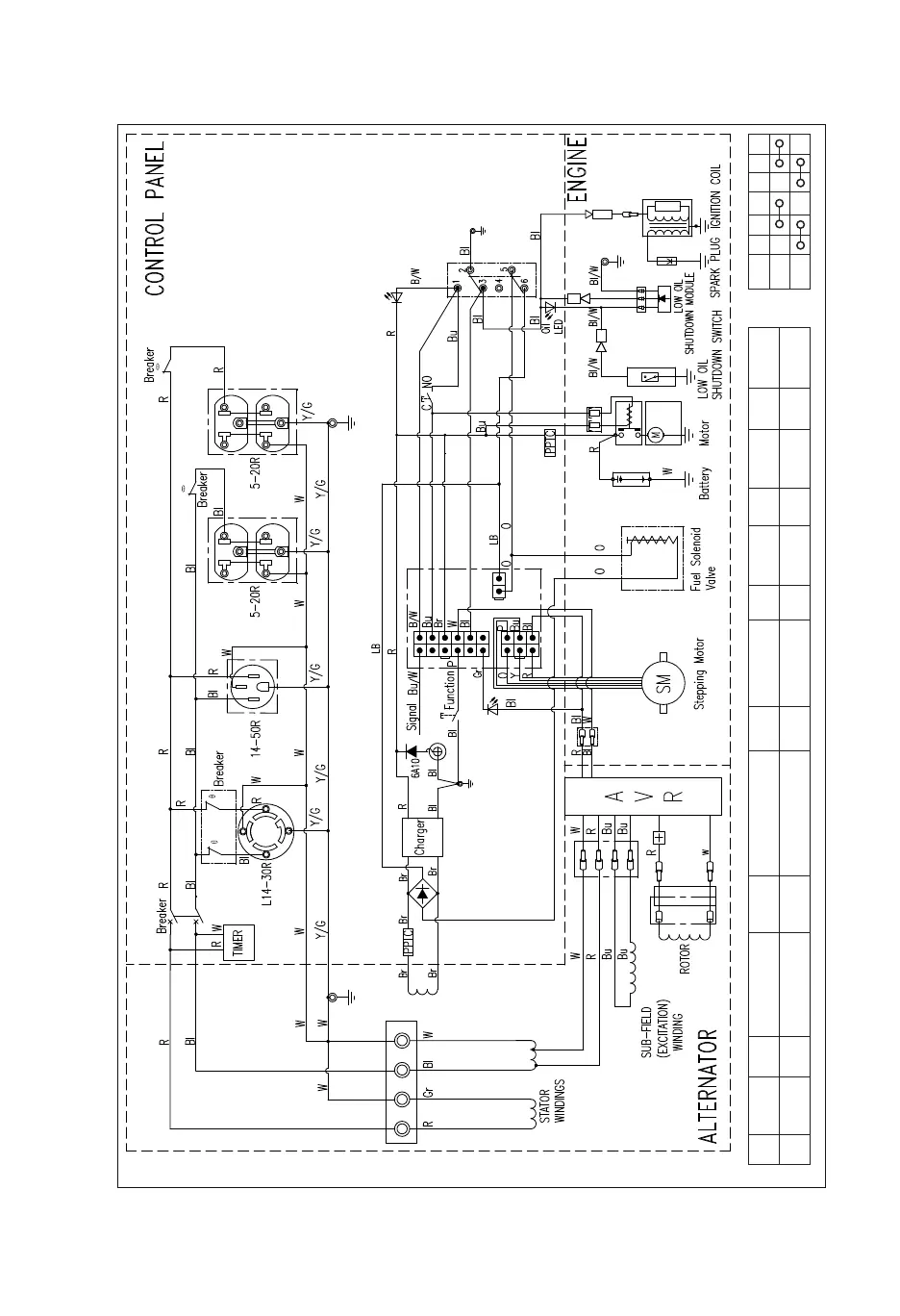

WIRING DIAGRAM BG11,500E
Black Brown
Bl Br
Yellow/Green
Orange
Y/G
O
Brown/Red Black and White
Br/R Bl/W
Blue Light Blue
Bu LB
Green Gray
G Gr
W WhiteBlack
Red
Bl R
ENGINE SWITCH CONNECTIONS
OFF
1 2 3 4 5 6
ON
