Instruction Manual for LA4 with 1.0.X Firmware – REV A Page 29
Performance Graphs

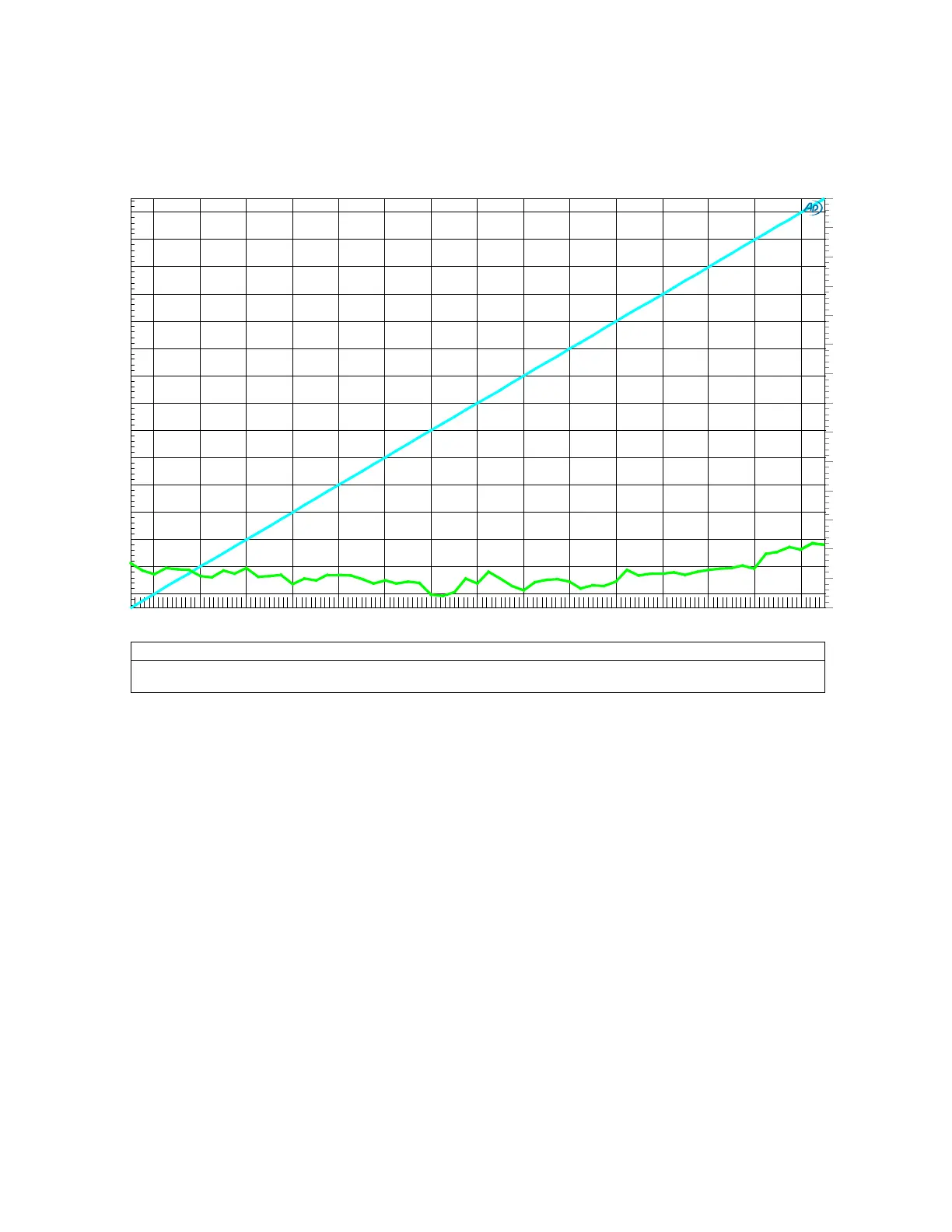

Graph 1 - Stepped Gain Control - THD vs. Gain (-15 dB to +15 dB)
The relay-controlled stepped gain controls are a key feature of the LA4. The stepped gain control is
designed to provide volume control over a wide operating range without adding any significant
noise or distortion.
This plot shows that the stepped gain control produces almost no measureable THD. Over a range
of -15 dB to +15 dB, the THD is between -120 dB (0.0001%) and -140 dB (0.00001%) and is near
the measurement limits of the AP2722 test system! This measurement includes the balanced input
and output buffers. The LA4 provides a virtually distortion-free signal path with gain control.
Notes:
• The cyan curve shows the gain and uses the left-hand (dBr A) scale to show the gain in dB.
This scale is dB relative to the input level. The input level was 10 dBu throughout the test.
• The green curve shows the THD using a 1 kHz test tone. The THD is plotted in dB relative to
the output level and uses the right-hand (dB) scale. The output level was adjusted from -5
dB to +25 dBu using the stepped attenuator.
• Balanced inputs to balanced outputs.
Attenuator_THDvsGain_P15toN15.at27
ColorSweep Trace
Line Style Thick
Data Axis
Comment
1 1 Cyan Solid 4 Anlr.Level B
Left Gain dBr A
1 2
Green Solid 4
Distortion.Ch.1 Harm Sum1 Ratio Right THD dB
