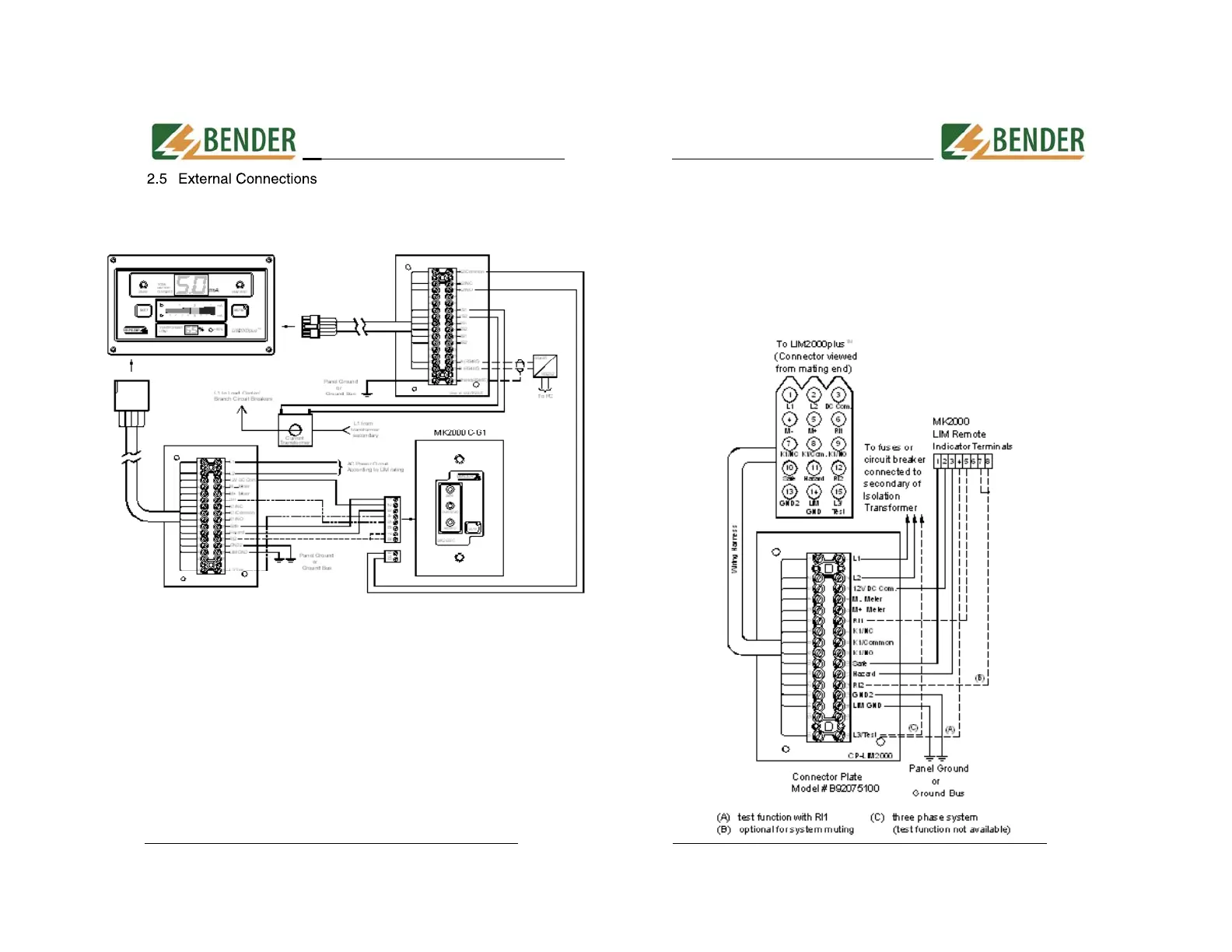

2.5.1 Connector assembly
(CP-LIM2000)
Connections between the LIM, the Remote Indicator and the
isolated power supply are made via this cable assembly,
designed for integration into panels, headwalls and other
equipment.
The terminal strip works best with 18 ga. wire.
The multiconductor harness has a length of 20”.
