2. General Information2. General Information
(CP-LIM2000CB)
Connections between the LIM, the Remote Indicator, the load
monitoring CT and the RS485-Interface are made via this cable
assembly, designed for integration into panels, headwalls and
other equipment.
The terminal strip works best with 18 ga. wire.
The multiconductor harness has a length of 20”.

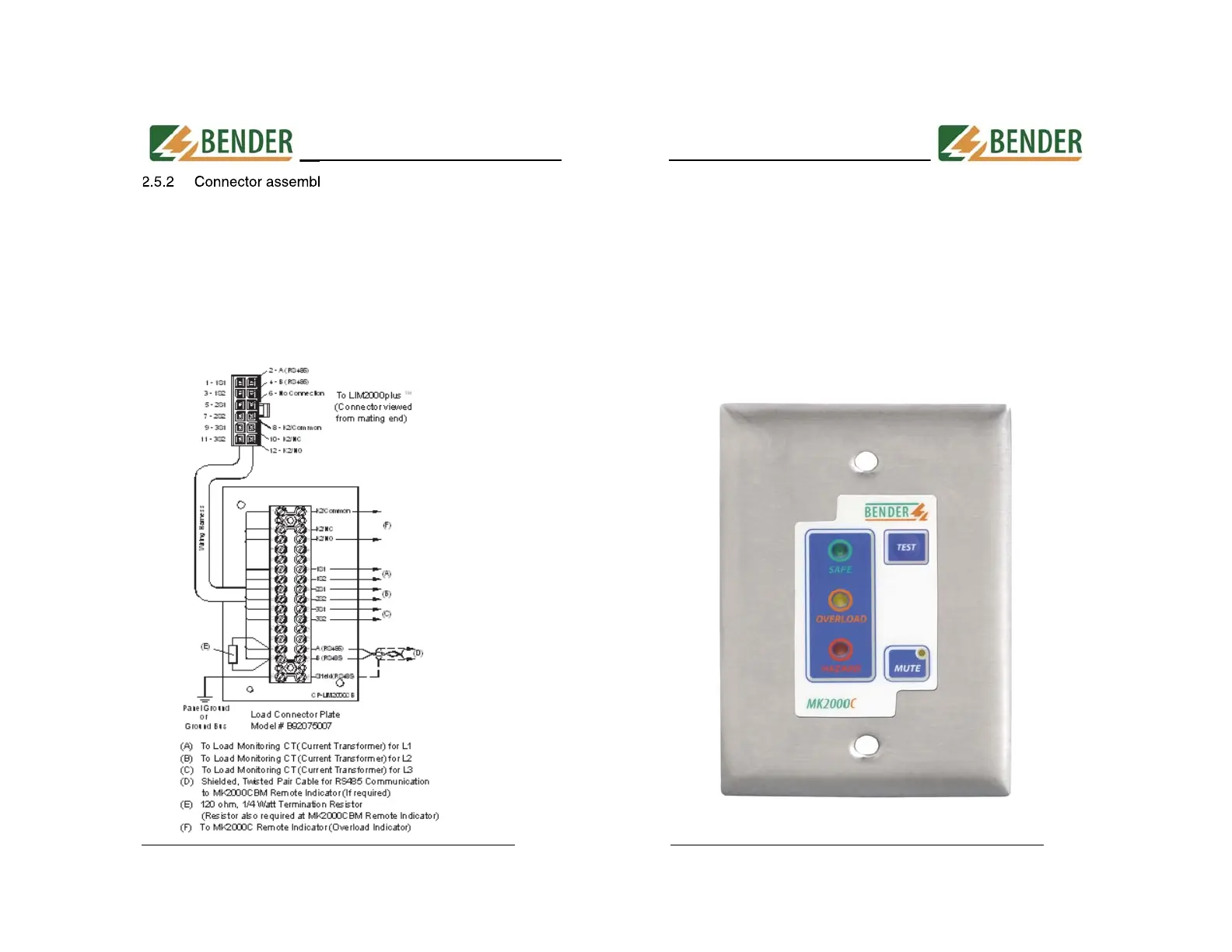

2.5.1 Remote Indicator
The MK2000 Remote Indicator series permanently mounts into
standard one- to xxx-gang electrical boxes. Low voltage wiring
connects them via the connector assembly CP-LIM2000 to the
Line Isolation Monitor.
The remotes can duplicate the audible and visible “SAFE”,
“HAZARD” and “OVERLOAD” (optional) signals of the LIM.
A “MUTE” button can either silence the remote buzzer (local
muting) or all buzzers in the system (system muting). The
optional “TEST” button can remotly perform a function test of the
LIM.
