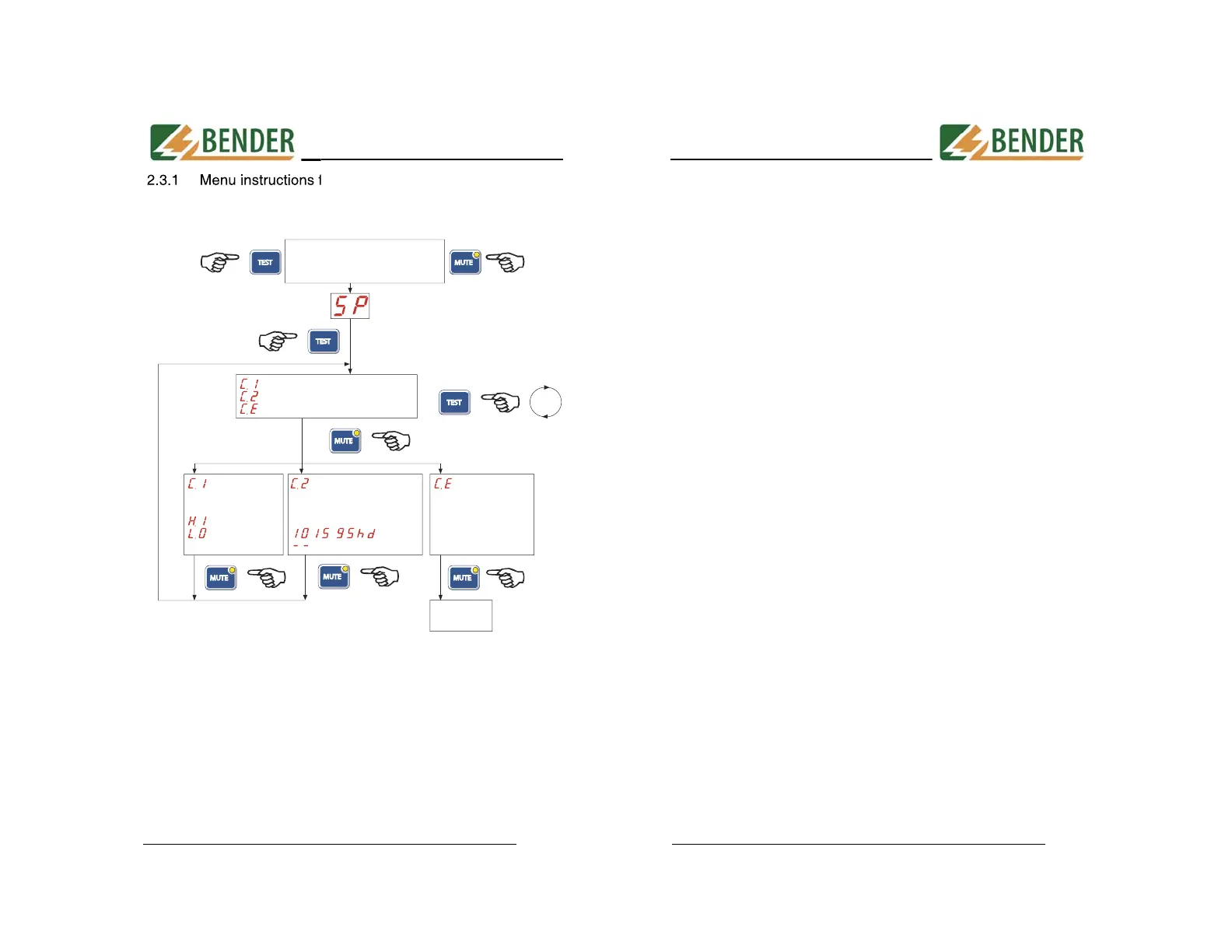

Menu instructions for the LIM2000plus™
2. General Information
14
15
2. General Information
Buzzer volume
Max. transformer current (optional)
Quit menu and activate parameters
Buzzer volume
Sets the intensity of
the buzzer volume
loud
quiet
Response value of the
load monitoring. Adjustments
in 5% steps between 10%
and 100% of used CT.
, ... , (100),
(off).
Start menu
(push TEST and MUTE button
simultaneously)
MUTE
MUTE
MUTE
MUTE
TEST
MUTE
TEST
quit menu and
store new parameters
menu
END
TEST
2.4 Error-Codes Listing
ER 1.0 Ground error LIM-GNDor GND interrupted
ER 2.0 AD converter calibration failed; hardware failed
error
ER 3.0 Measuring circuit test failed; hardware mistake
ER 4.0 Tolerance between actual system voltage and
calibrated system voltage has been increased
ER 4.5 Tolerance between actual signal voltage and
calibrated system voltage has been increased
ER 5.0 Hardware defect; missing system trigger
ER 6.0 Program sequence interrupted; EMI interference
ER 6.5 Program sequence interrupted; stack point
indication too high
ER Error in the current measuring circuitry
