Diagnostic
Port
To Frame
Diagnostic
Port Bracket

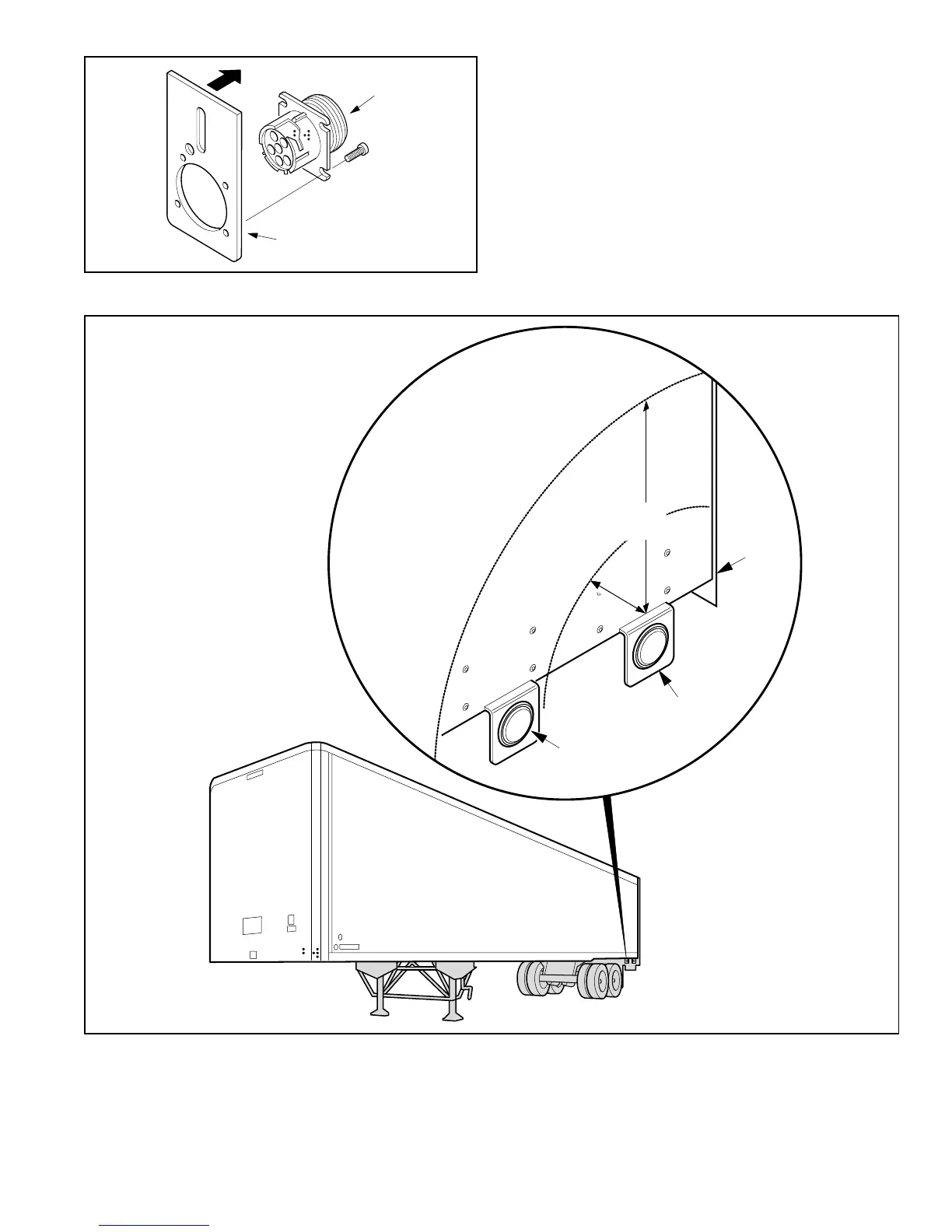

FIGURE 21 - Diagnostic Port Installation (Standard)
ABS
23.6"
(600mm)
5.9"
(160mm)
Rear
of
Trailer
Rear
Side Marker
ABS
Warning
Lamp
FIGURE 22 - Warning Light Location
Install the Diagnostic Port (Standard System)
On standard systems, the diagnostic port is installed on
the road side of the trailer, on the frame forward of the
trailer axle(s). To install the diagnostics port, bolt or weld
the diagnostic port bracket to the trailer frame.
Install the Trailer Mounted Warning Light
The warning light is mounted on the road side of the trailer,
forward of the marker light according to the following
drawing.
