BENDIX A-18 TRAILER ABS - Page 19

19
Front
3/8" O. D. Nylon Tubing
3/8" O. D. Nylon Tubing (Alt. 1/2" O. D.)
3/8" I. D. Hose
Key

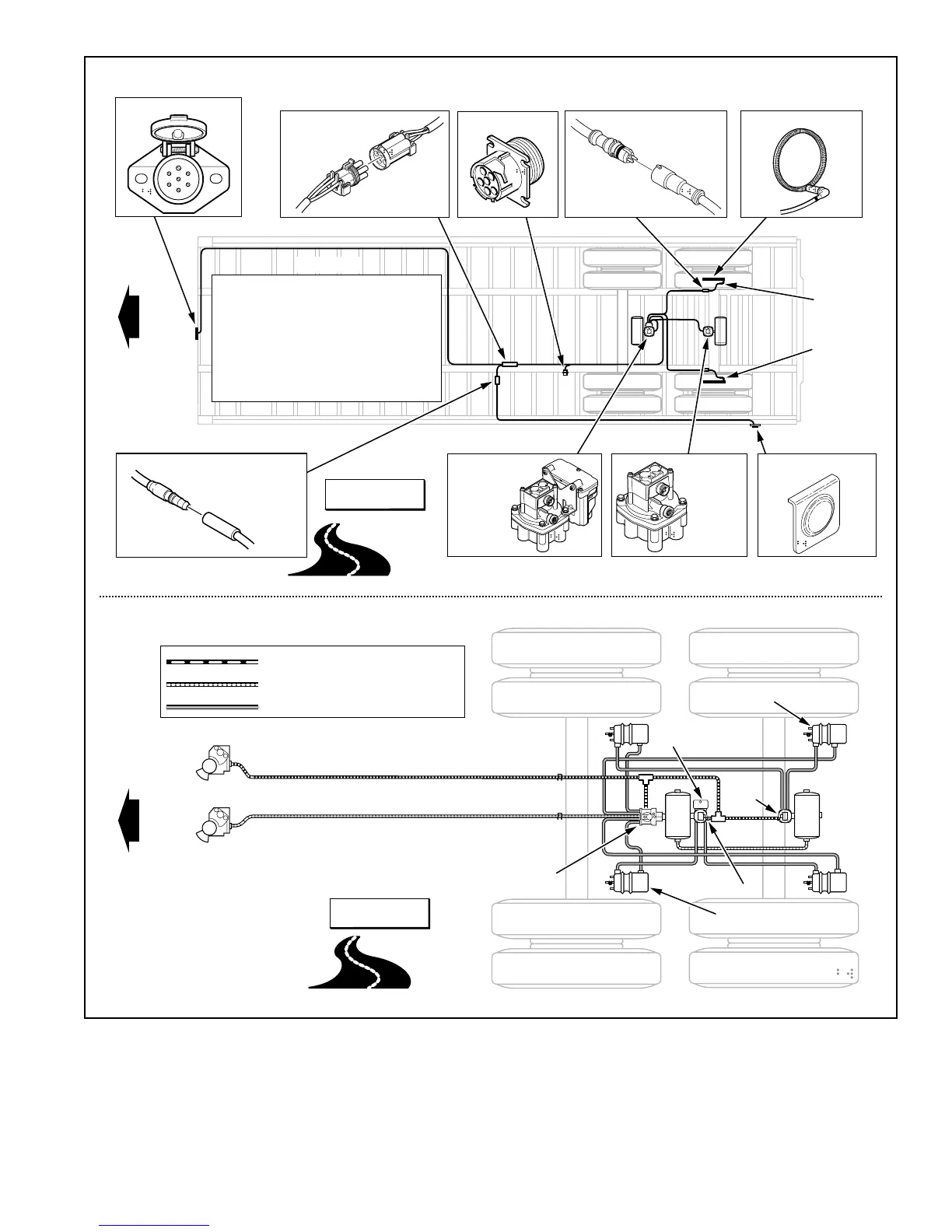

2S-2M Air System Configuration (Top View)
Gladhand
Gladhand
TEV or STEV
Spring Brake Control
Res. Res.
Emergency Brake Chamber
Service Brake Chamber
ABS
ECU
Relay Valve A
Relay
Valve
B
Supply Line
Service (Control) Line
Power Cable
2S-2M Electrical Configuration (Top View)
J560 Connector
Trailer
Side
ABS Warning LampECU
Relay
Valve A
Diagnostic Port
Wheel Sensor
Speed Sensor
Sensor B
Sensor A
Front
ABS
Stand
Alone
Relay
Valve B
ECU
Side
Wheel
Side
Warning
Light Side
Harness Side
Warning Lamp Connector
ECU Side
Road Side
Top View
Road Side
Top View
Description Quantity
ECU/Relay Valve 1
Stand Alone Relay Valve 1
Sensor/Diagnostic Cable 1
Valve/Power Cable 1
Sensors — 0.4m Cable 2
Sensor Friction Sleeve 2
Parts List
FIGURE 24 - Typical 2S-2M ABS Electrical and Air System
