BENDIX Sheppard

10
Pin 1-18: 1241374-2 Pin 19-25: 1-968851-1

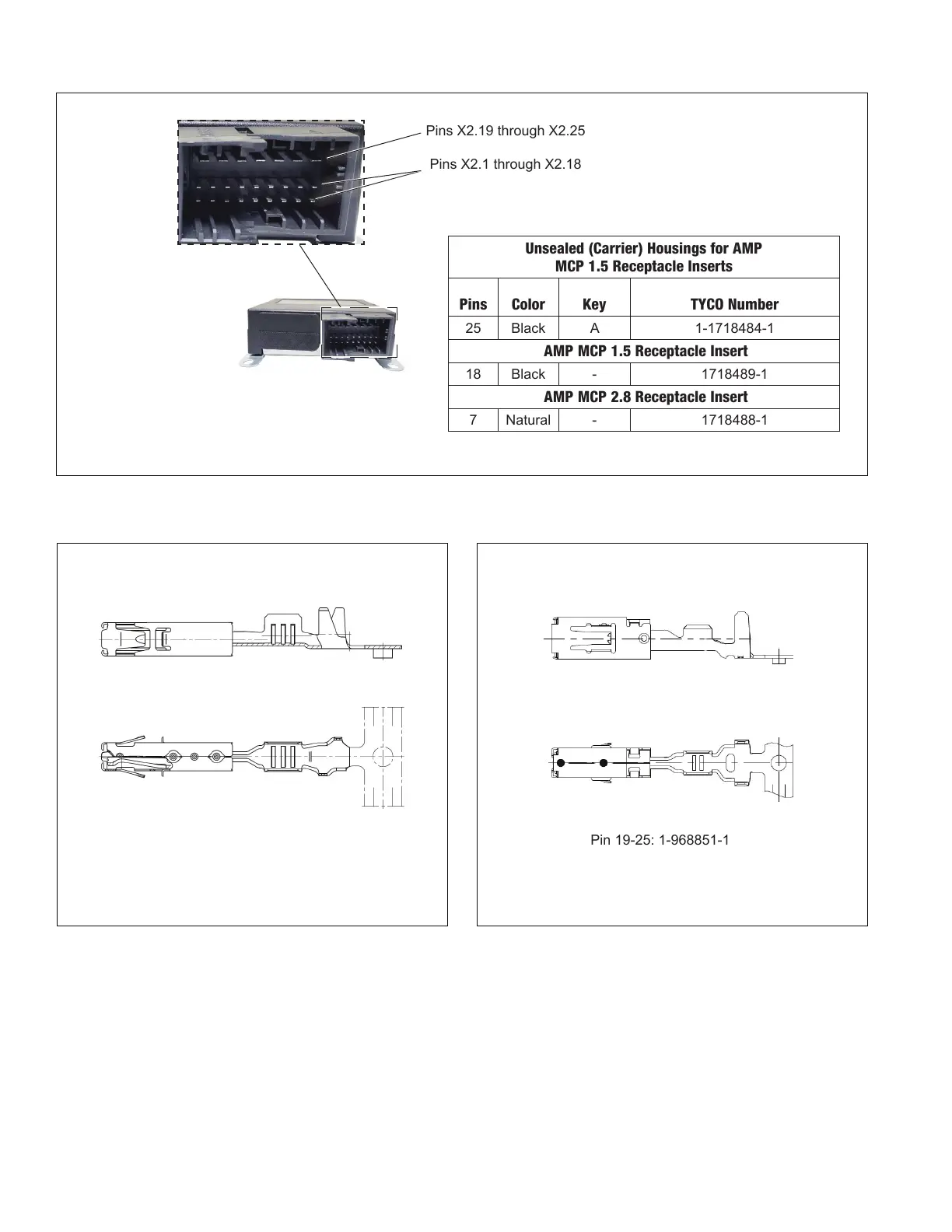

Figure 9 – Terminals for Connector X2
CONNECTOR PIN IDENTIFICATION
Pins X2.1 through X2.18
Pins X2.19 through X2.25
Unsealed (Carrier) Housings for AMP
MCP 1.5 Receptacle Inserts
Pins Color Key TYCO Number
25 Black A 1-1718484-1
AMP MCP 1.5 Receptacle Insert
18 Black - 1718489-1
AMP MCP 2.8 Receptacle Insert
7 Natural - 1718488-1
Figure 8 – Connector X2
