BENDIX SR-7 SPRING BRK MODULATING VALVE

3
PP-DC
™
VALVE
SYSTEM FOR A 4X2 OR 6X4
STRAIGHT TRUCK WITH
PP-DC PARKING CONTROL
™
SR-7 Valve w/single check
Ref: 5010914
™

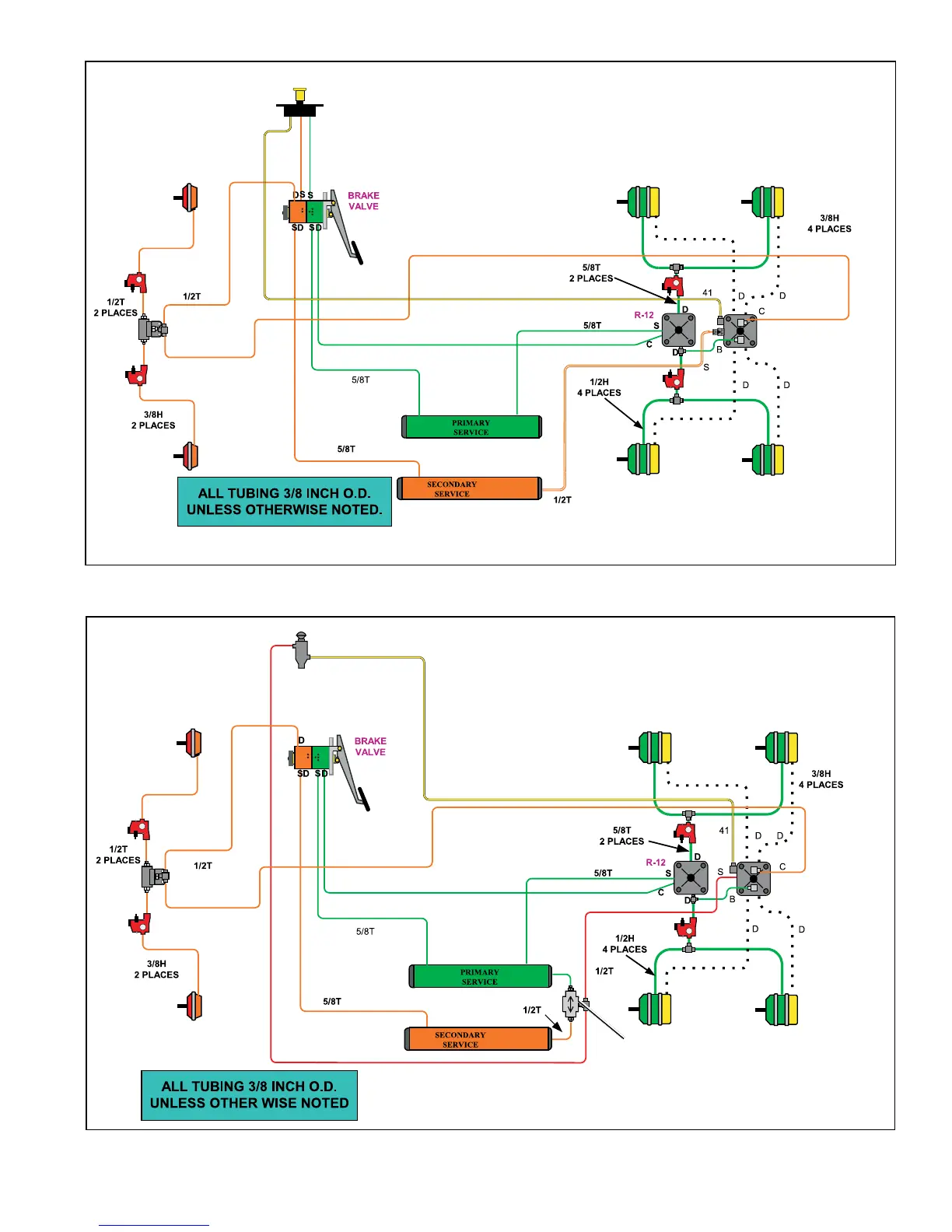

FIGURE 3 - SYSTEM SCHEMATIC WITH PP-DC
™
PARK CONTROL
FIGURE 4 - SYSTEM SCHEMATIC WITH PP-1
™
PARK CONTROL AND DC-4
™
DOUBLE CHECK VALVE
SYSTEM FOR A 4X2 OR 6X4
STRAIGHT TRUCK WITH
PP-1 PARKING CONTROL
™
PP-1
VALVE
™
SR-7 valve
w/o single check
™
DC-4
™
VALVE
