BENDIXKing KNS 80 - Along Track;Crosstrack Error Chart

Along Track/Crosstrack Error
Legend:
Flightpath
Along
track (distance) error l
Crosstrack (coursewidth) error A Qnm
WAY POINT 0

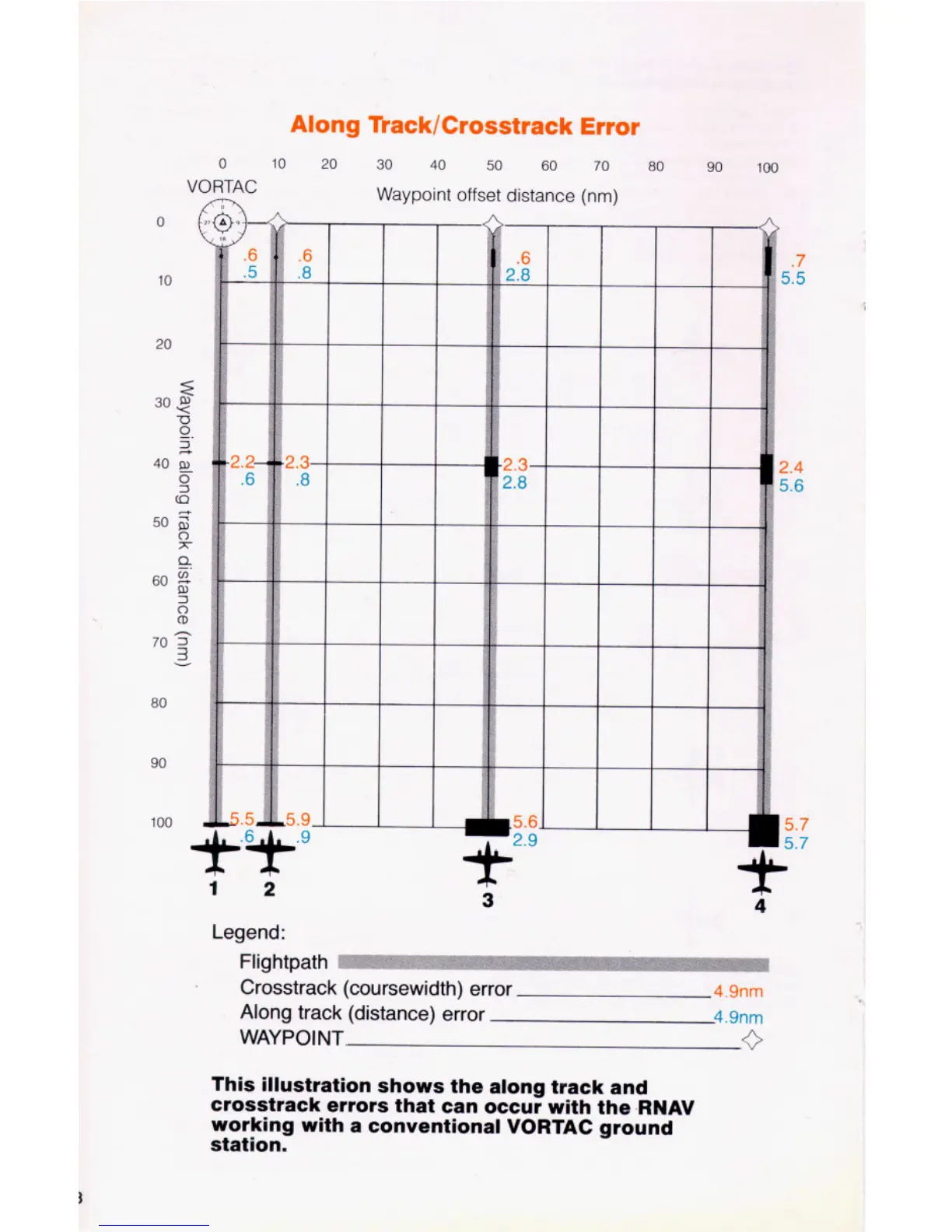

This illustration shows the along track and
crosstrack errors that can occur with the
RNAV
working with a conventional VORTAC ground
station.
