SP-7XE/F Full-Rise Scissor Lift 27 P/N 5900010 — Rev. B3 — September 2023
Level the Lift Platforms
The Lift Ramp Assemblies must be parallel and square to each other
before leveling and shimming can be effective. Both Ramps must be
resting on the Top Safety Lock to perform this procedure.
To Level the Platforms:

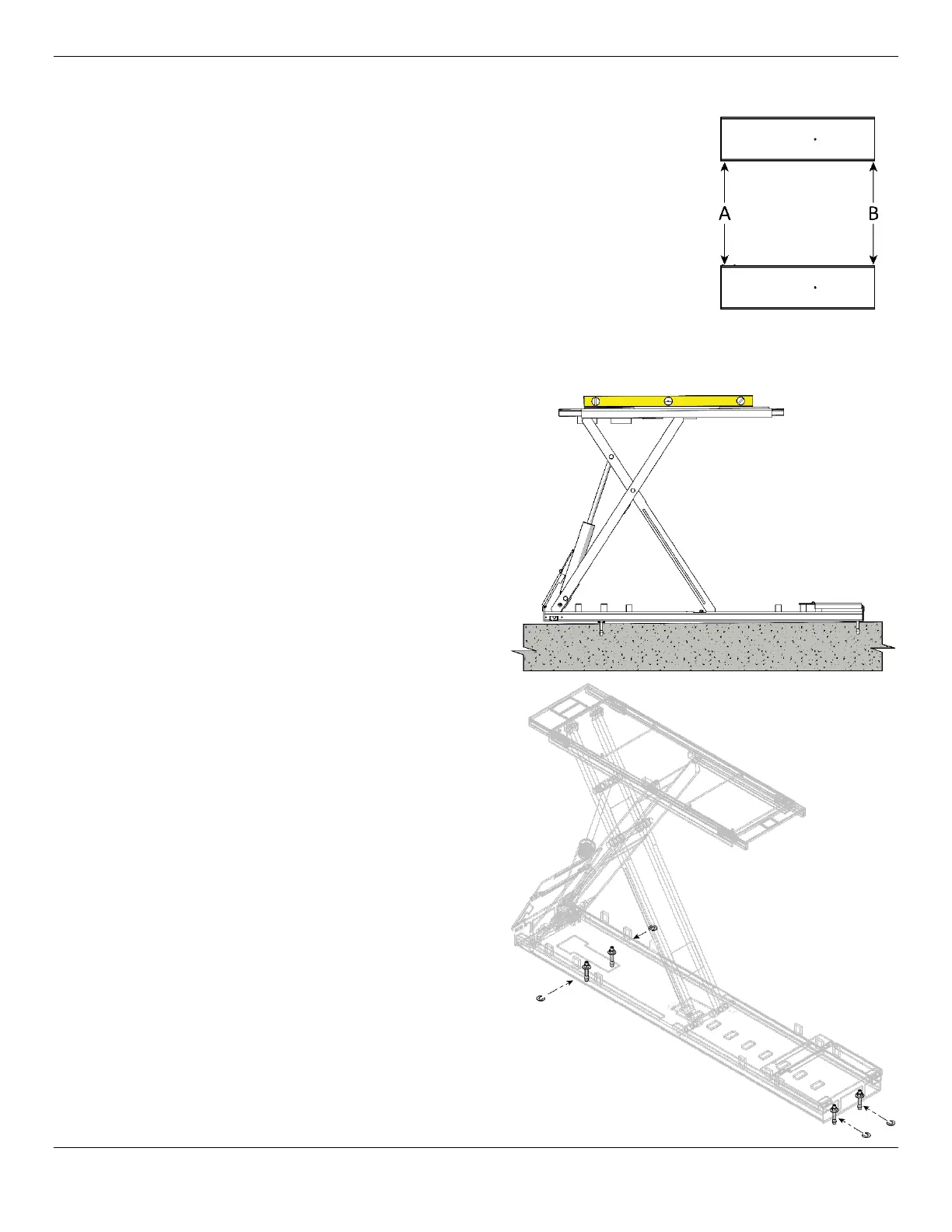

1. Verify the Ramp Assemblies are still within the chalk lines and parallel
to each other by measuring the A and B dimensions. Adjust their
positions until the A and B dimensions are equal. Refer to the figure on
the right.
2. Begin by leveling lengthwise front to back. The Lift Ramps will be leveled to the highest point on
the concrete floor. To find the highest point, use a four-foot level across the top of the Ramps or
across the base of the Lift Ramps. Observe
the bubble position to determine the
direction and magnitude of the slope
pointing to the highest area.
3. Beginning at the corner closest to the
highest point, shim each Anchor Bolt hole
location until each Lift Ramp is Level front to
back.
Four Anchor Bolt openings are located on the
Base of the Ramps, two at the rear and one at
the front of each frame.
Important:
Use slotted Shims around
each Anchor Bolt location to help prevent the
concrete from cracking near the Anchor Bolts.
Refer to the figures on the right.
Level both Lift platforms.
