BendPak SP-7XE - Wiring Diagram

SP-7XE/F Full-Rise Scissor Lift 62 P/N 5900010 — Rev. B3 — September 2023

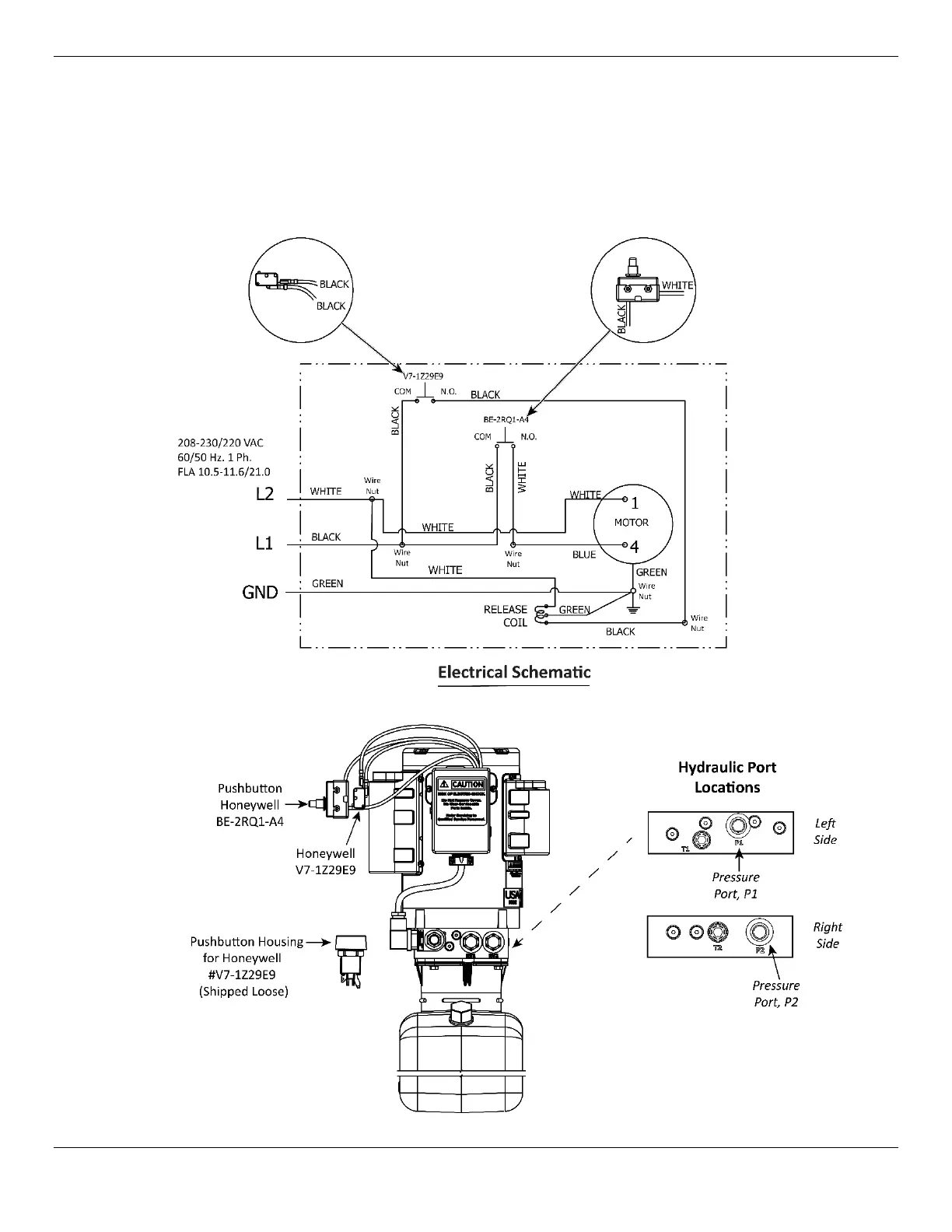

Wiring Diagrams
⚠ WARNING All electrical work must be performed by a licensed Electrician in accordance with
all applicable local and national electrical codes. Damage caused by improper
electrical installation may void your warranty.
5585442
