If the light spot reaches two objects with different distances, as shown in Figure 3, the output distance value
will be a value between the actual distance values of the two objects. For a high accuracy requirement in
practice, the above situation should be noticed to avoid the measurement error.

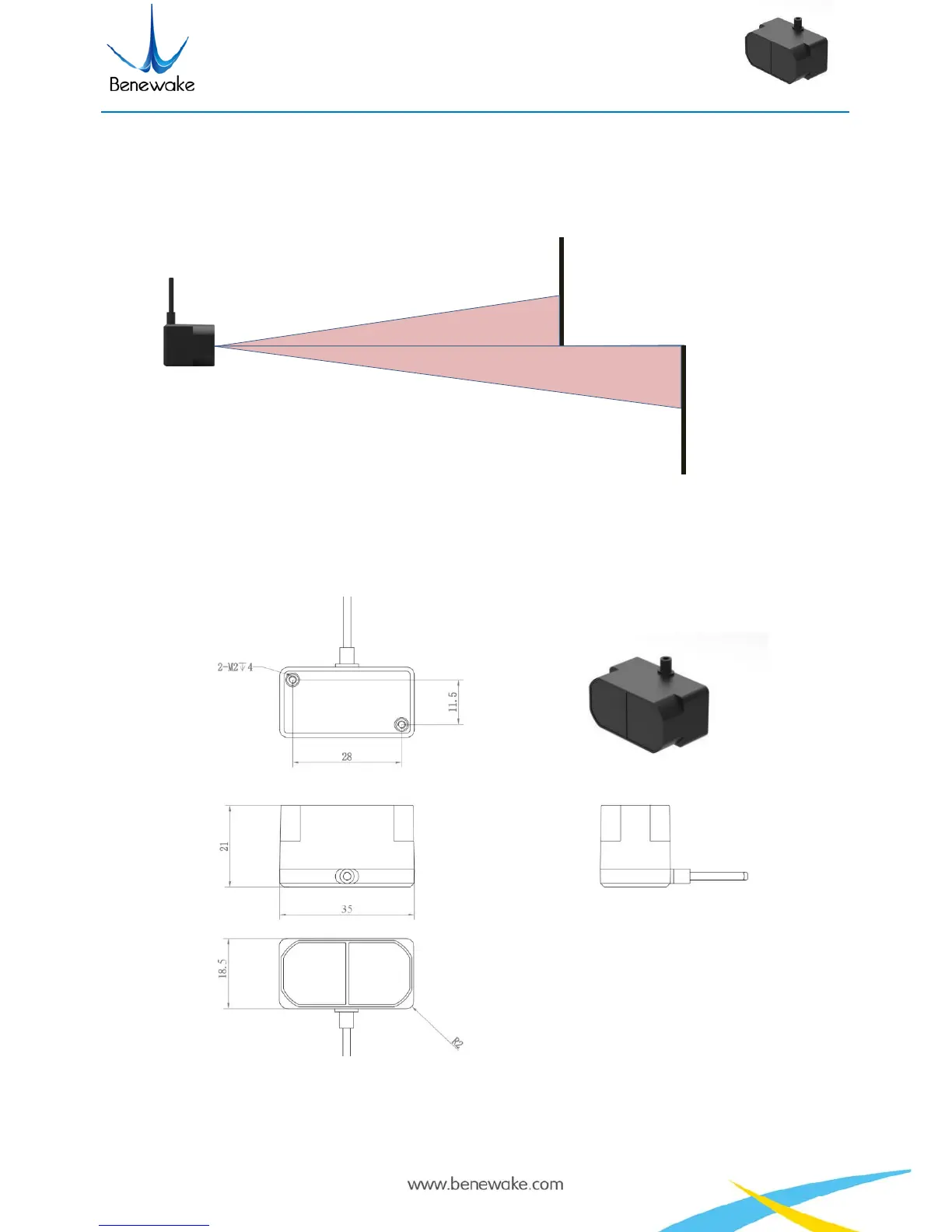

Figure 3 Distance Measurement in the case of Two Objects of Different Distances
3 Appearance and Structure
3.1 Product Structure
Figure 4: Constructional Drawing of TFmini Plus
M2 positioning screw was recommended, and please choose an appropriate length according to
installation requirements.
Dist1
Dist2
Dist
Dist2 > Dist > Dist1
