Beninca THINK - Connection of Safety Devices

3
24Vac 24Vac COM NC
RX1 TX1
24Vac - 12 24Vac - 11
COM - 15
PHOT 1 - 18
24Vac 24Vac COM NC
RX3 TX3
Photo TEST - 14 Photo TEST - 13 Photo TEST - 14 Photo TEST - 13
Photo TEST - 14 Photo TEST - 13 Photo TEST - 14 Photo TEST - 13
24Vac - 12 24Vac - 11
COM - 15
PHOT 3 - 20
24Vac 24Vac COM NC
RX2 TX2
24Vac - 12 24Vac - 11
COM -15
PHOT 2 - 19
24Vac 24Vac COM NC
RX4 TX4
24Vac - 12 24Vac - 11
COM - 15
PHOT 4 - 21
18171615141312 2019 21 2211 23 24 25 26 27 28 29
PHOT 1 PHOT 2 PHOT 3 24Vac PHOT 4 COM Phototest

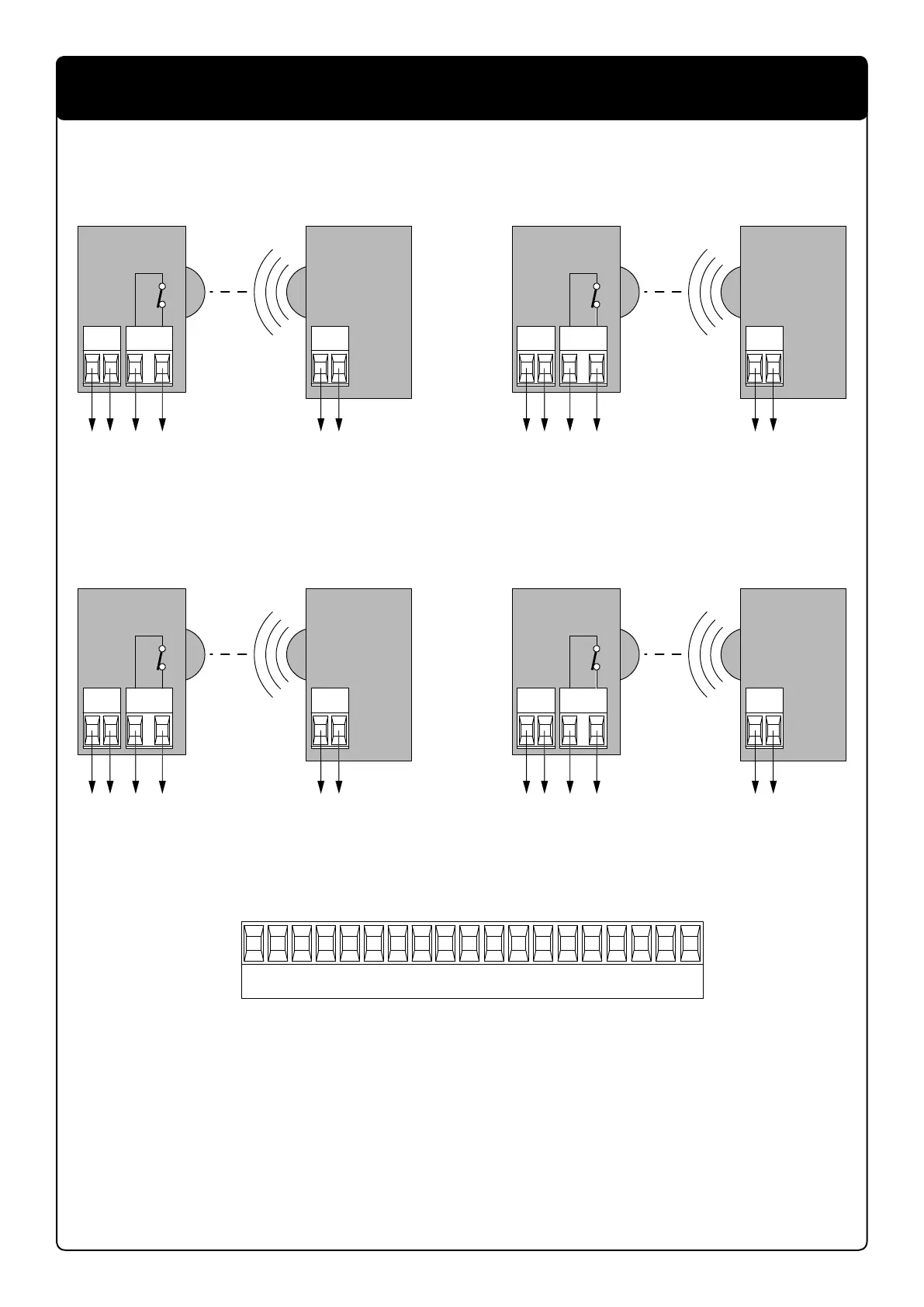

Collegamento dispositivi di sicurezza verificati / Connection of tested safety devices
Anschluss geprüfter Sicherheitsvorrichtungen / Branchement dispositifs de sécurité vérifiés
Conexión de los dispositivos de seguridad verificados / Połączenia sprawdzanych urządzeń bezpieczeństwa
