17
Diagnostics

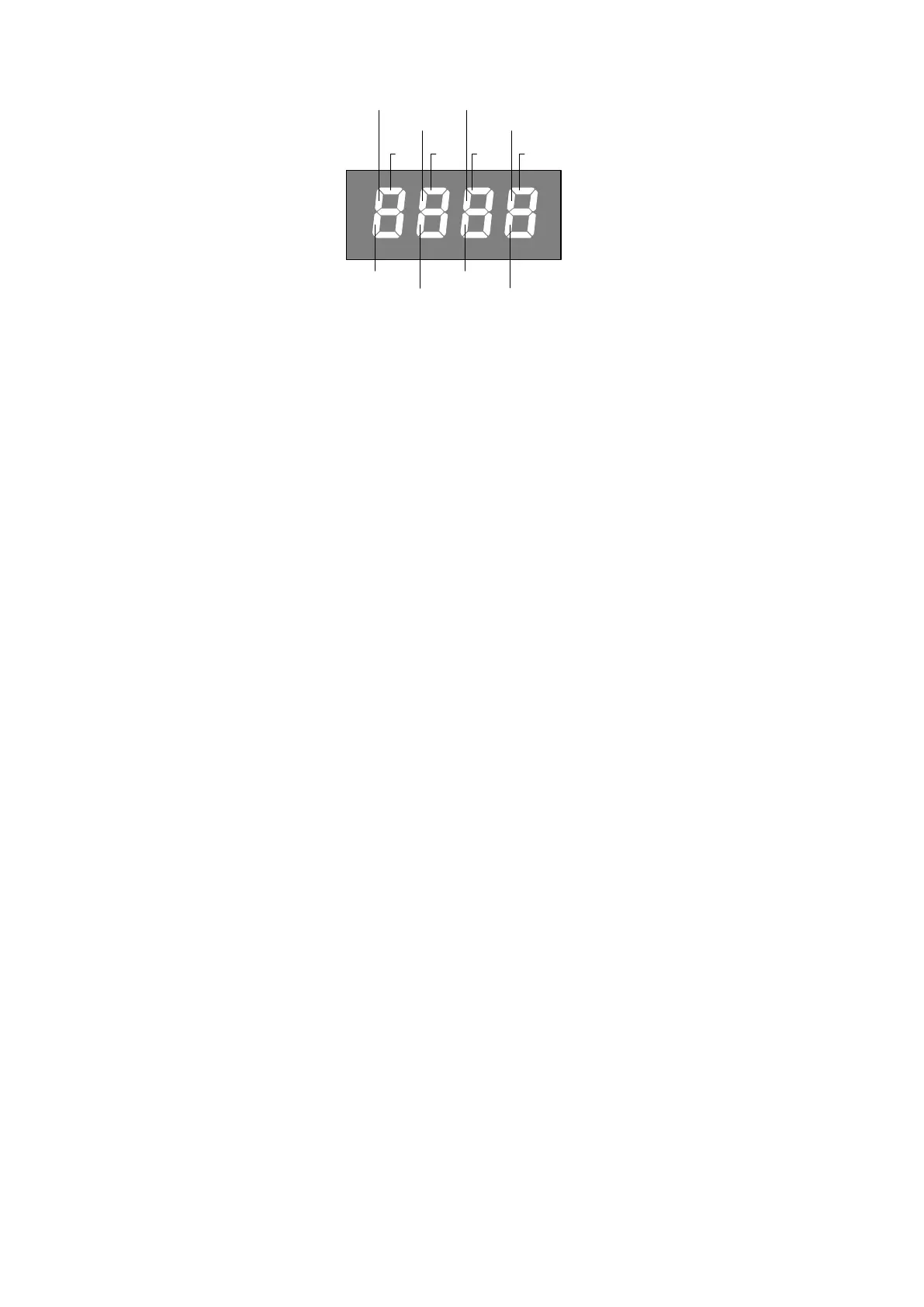

Each input is matched to one segment of the display; in the event of activation, it switches on according to the following diagram.
PHOT1
SWC
STOP
SWO
PHOT3
PHOT4
PHOT2
DAS
P.P. PED OPEN CLOSE
The Normally Closed (N.C.) inputs are represented by vertical segments. The Normally Open (N.O.) inputs are represented by
horizontal segments.
Error messages
The control unit checks the correct operation of the safety devices.
In the event of faults the following messages can be displayed:
ERR1 Error, check photocells. Check connections and the correct operation of photocells.
ERR2 Activation of the anti-crash amperometric sensor. Check the presence of any obstacles.
ERR3 Check of single failure has negative result. Contact the technical assistance.
ERR4 Triggering of the motor protection switch. Check the value of the parameter SAFM and check the motor consumption.
ERR5 Lack of one of the three phases. Check the correct connection of power supply of the three-phase mains.
Fuses
F1 Protection fuse, accessories
F2 Protection fuse, logic board
F3 Protection fuse, flashing light and electric brake.s
F4 Primary protection fuse of the transformer.
Waste Disposal
If the product must be dismantled, it must be disposed according to regulations in force regarding the differentiated waste disposal
and the recycling of components (metals, plastics, electric cables, etc..). For this operation it is advisable to call your installer or a
specialised company.
