BenQ FP51G User Manual

7 How to install your monitor hardware

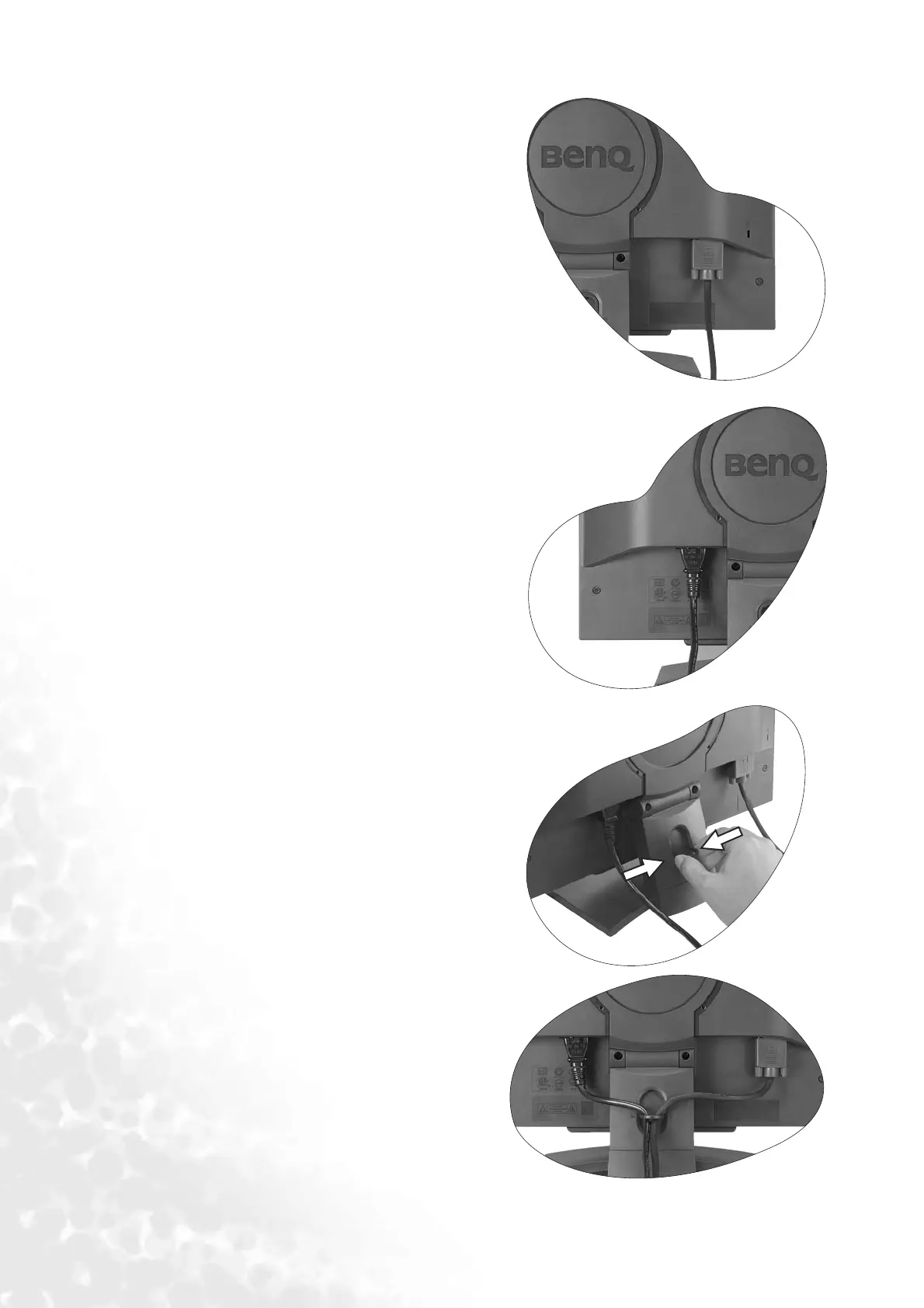

2. Connect the video cable.
Connect the plug of the D-Sub cable (at the end without
the ferrite filter) to the monitor D-Sub socket. Connect
the other plug of the D-Sub cable (at the end with the
ferrite filter) to the computer video D-Sub socket.
Tighten all finger screws to prevent the plugs from
accidently falling out during use.
3. Connect the power cable to the monitor.
Plug one end of the power cord into the socket labelled
’POWER IN’ on the rear of the monitor. Do not connect
the other end to a power point just yet.
4. Route the cables via the loose bracket.
Release the cable retaining clip by squeezing the clip
inwards as illustrated. Position the cables together and
reinsert the clip over them to retain the cables neatly in
place behind the monitor stand.

BenQ FP51G Specifications

Panel Specifications

LCD Size	15.0"
Display Area	304.1 x 228.1 mm
Pixel Pitch	0.297 mm
Brightness	250 cd/m2
Contrast Ratio	400:1
Viewing Angle	120/100 (L/R;U/D, CR>=10)
Response Time	12 ms
Display Colors	16.2 million

Monitor Specifications

Resolution	1024 x 768 (XGA)
Horizontal Frequency	31 - 63 KHz
Vertical Frequency	56 - 75 Hz
Video Bandwidth	25 - 80 MHz
Input Connector	D-Sub
Power Supply	90~264 AC, Built-in
Power Consumption (On mode)	30 W (max)
Power Consumption (Power saving mode)	1 W/120V, 2 W/240V

Weight and Dimensions

Net Weight	8.2 Lbs
Gross Weight	10.1 Lbs
Dimensions	338 x 331 x 136 mm
CTN Dimensions	395 x 380 x 120 mm
