BenQ FP93G User Manual

12 How to install your monitor hardware

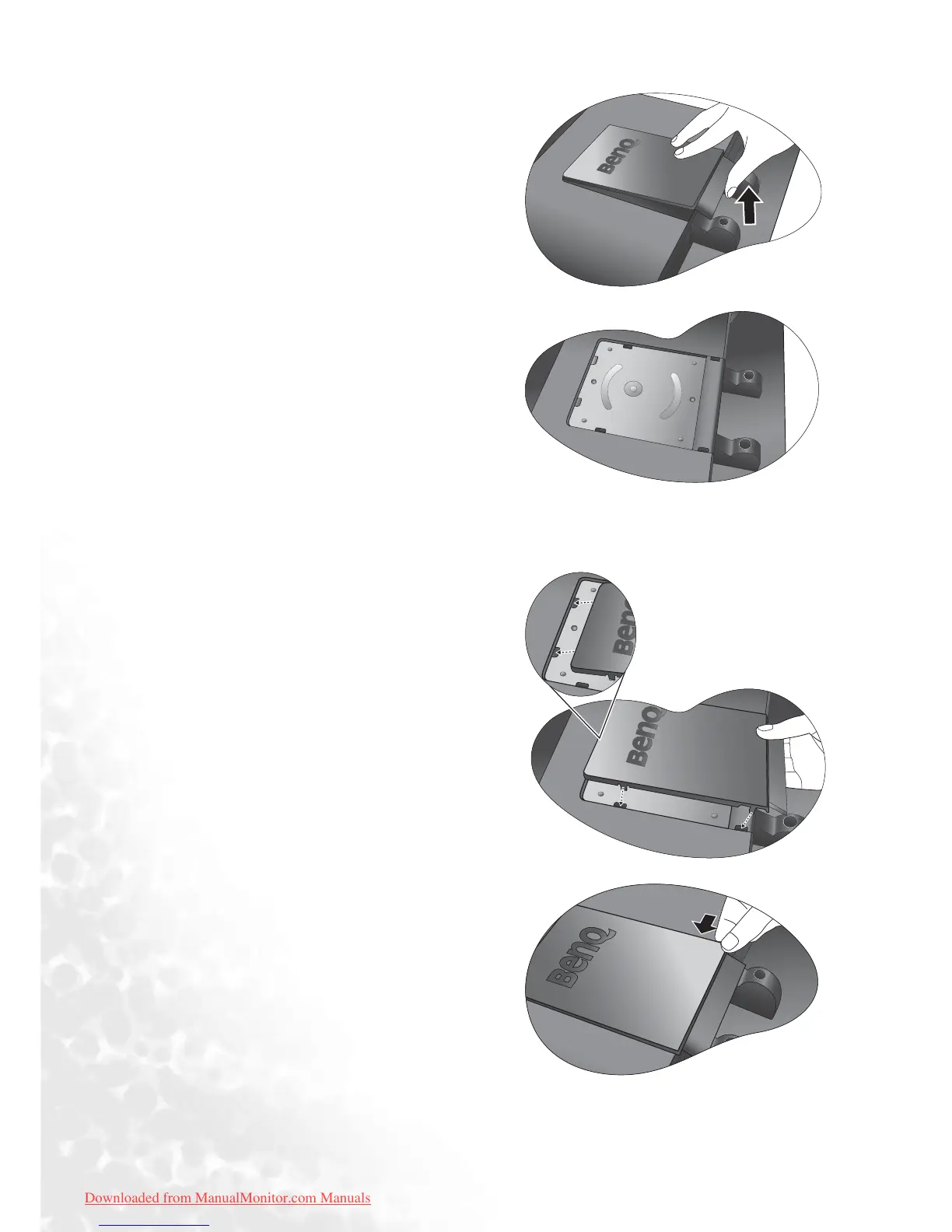

To attach the rear cover:
3. Remove the rear cover.
Pull around the edge of the rear cover and slightly lift it to
reveal the screw plate at the back of the monitor.
4. Follow the instruction manuals of the wall mount
bracket you purchased to complete the installation.
1. Tilt the rear cover forward and insert the two tabs on
the front edge into the recesses of the screw plate.
No tools are required.
2. Position the two tabs on left side of the rear cover to
fit into the grooves in the screw plate.
3. Push the other two tabs on the right side of the rear
cover inward so that they could snap into the aligned
grooves.
There will be a clicking sound as the rear cover is
perfectly attached.
Downloaded from ManualMonitor.com Manuals

BenQ FP93G Specifications

Panel Specifications

LCD size	19.0"
display area	376.3 x 301.1 mm
pixel pitch	0.294 mm
brightness	300 cd/m²
contrast	700:1
viewing angle	140/135
response time	6 ms
display colors	16.2 million

Monitor Specifications

resolution	1280 x 1024 (SXGA)
horizontal frequency	31 - 81 KHz
vertical frequency	60 - 76 Hz
video bandwidth	25 - 135 MHz
input connector	D-sub, DVI
power consumption (on mode)	40 W (max)
power consumption (power saving mode)	1W/120V, 2W/240V

Dimensions and Weight

dimensions	410 x 404.2 x 168.2 mm
net weight	11.0 lbs
gross weight	14.3 lbs
