5
240Vac,cold
star,25°C
60A(max)
Earth Leakage Current
Hi-pot
Power Line Transient
CCFL Operation range
Power cord
√
To be determined by the
business country.

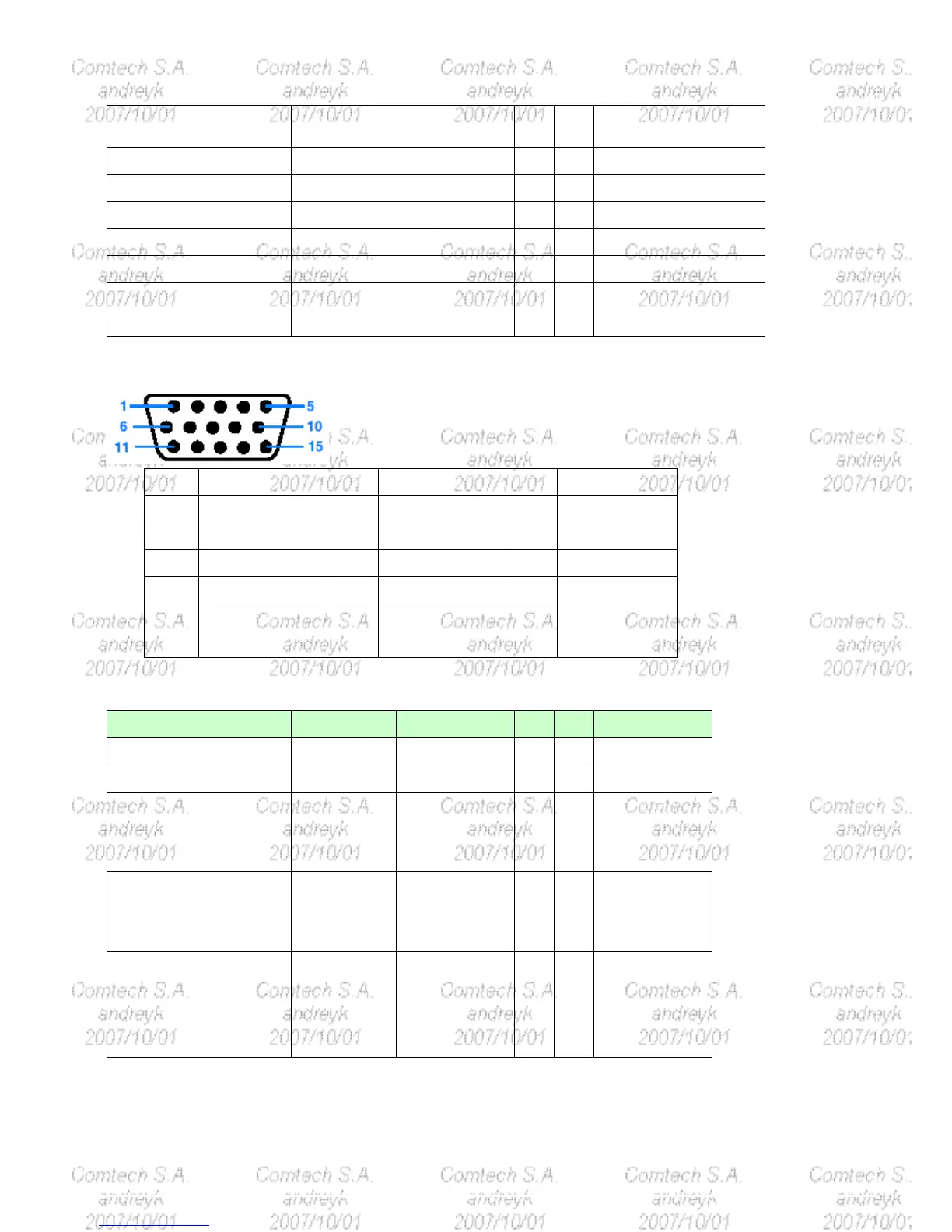

2.2 Signal interface
Pin Symbol Pin Symbol Pin Symbol
1 Red+ 6 Red_GND 11 GND
2 Green+ 7 Green_GND 12 DDC_DAT
3 Blue+ 8 Blue_GND 13 Hsync
4 NC 9 5V_VGA 14 Vsync
5 Cable
Detect
10 GND 15 DDC_CLK
2.3 Video Performance
Item condition Spec OK NA Remark
Max. support Pixel rate 135.000MHz
√
Max. Resolution
1280×1024
√
Rise time+Fall time <25% of
minimum pixel
clock period
√
Refer to VESA
VSIS Standard
V1R2
Setting Time after
overshoot/undershoot
<5% final
full-scale value
√
Refer to VESA
VSIS Standard
V1R2
Overshot/undershoot <12% of step
function voltage
level over the full
voltage range
√
Refer to VESA
VSIS Standard
V1R2
