RS232 command control
RS232 pin assignment
No. Serial No. Serial
1
N.C
6
N.C
2
RXD
7
Short with pin8
3
TXD
8
Short with pin7
4
N.C
9
N.C
5
Ground

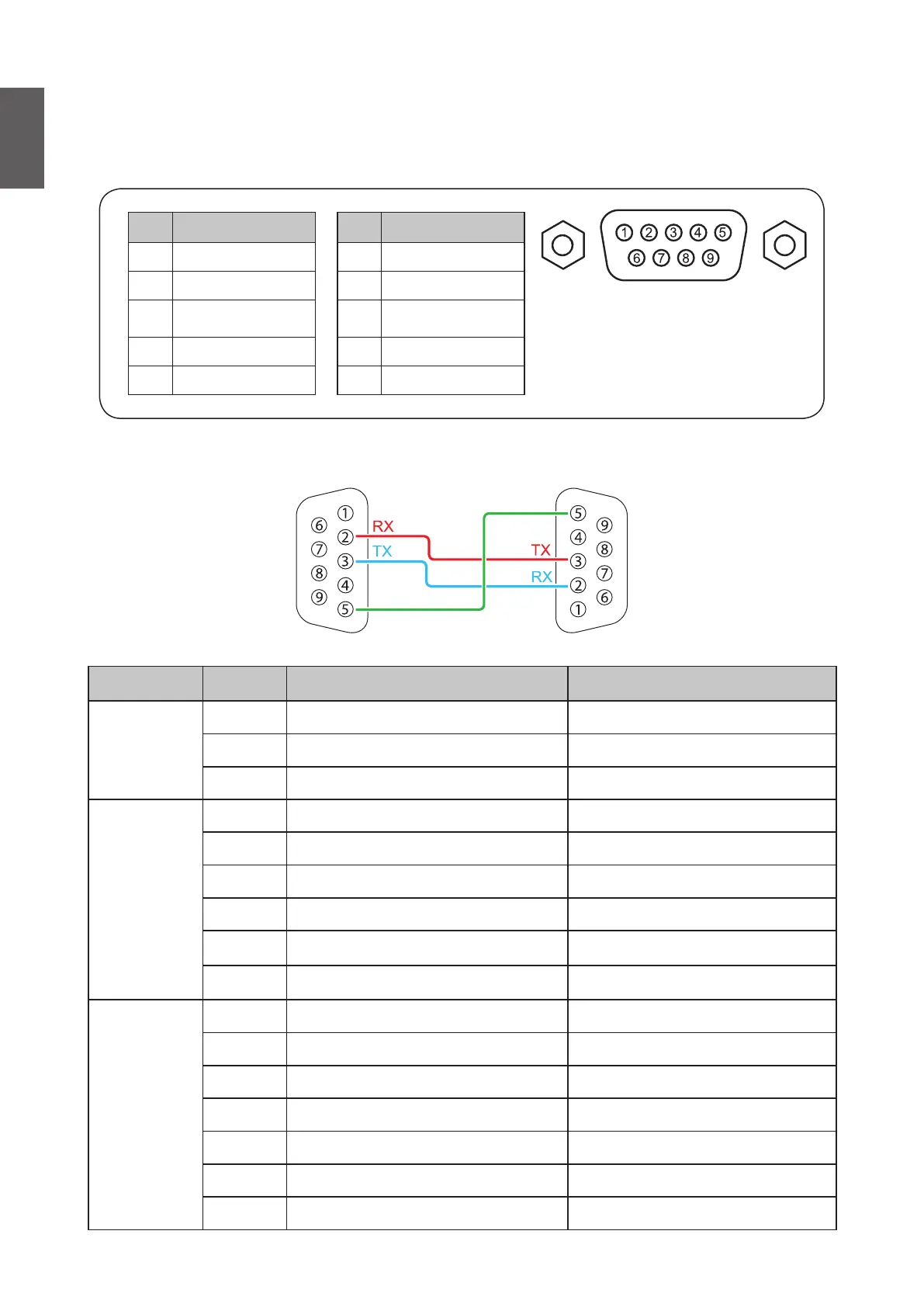

RS232 serial port with a crossover cable
Function Type Operation ASCII
Power Write Power On <CR>*pow=on#<CR>
Write Power O <CR>*pow=o#<CR>
Read Power Status <CR>*pow=?#<CR>
Source
Selection
Write COMPUTER/YPbPr <CR>*sour=RGB#<CR>
Write HDMI(MHL) <CR>*sour=hdmi#<CR>
Write HDMI 2(MHL2) <CR>*sour=hdmi2#<CR>
Write HDBaseT <CR>*sour=hdbaset#<CR>
Write DisplayPort <CR>*sour=dp#<CR>
Read Current source <CR>*sour=?#<CR>
Audio Control Write Mute On <CR>*mute=on#<CR>
Write Mute O <CR>*mute=o#<CR>
Read Mute Status <CR>*mute=?#<CR>
Write Volume + <CR>*vol=+#<CR>
Write Volume - <CR>*vol=-#<CR>
Write Volume level for customer <CR>*vol=value#<CR>
Read Volume Status <CR>*vol=?#<CR>
