Introduction 7

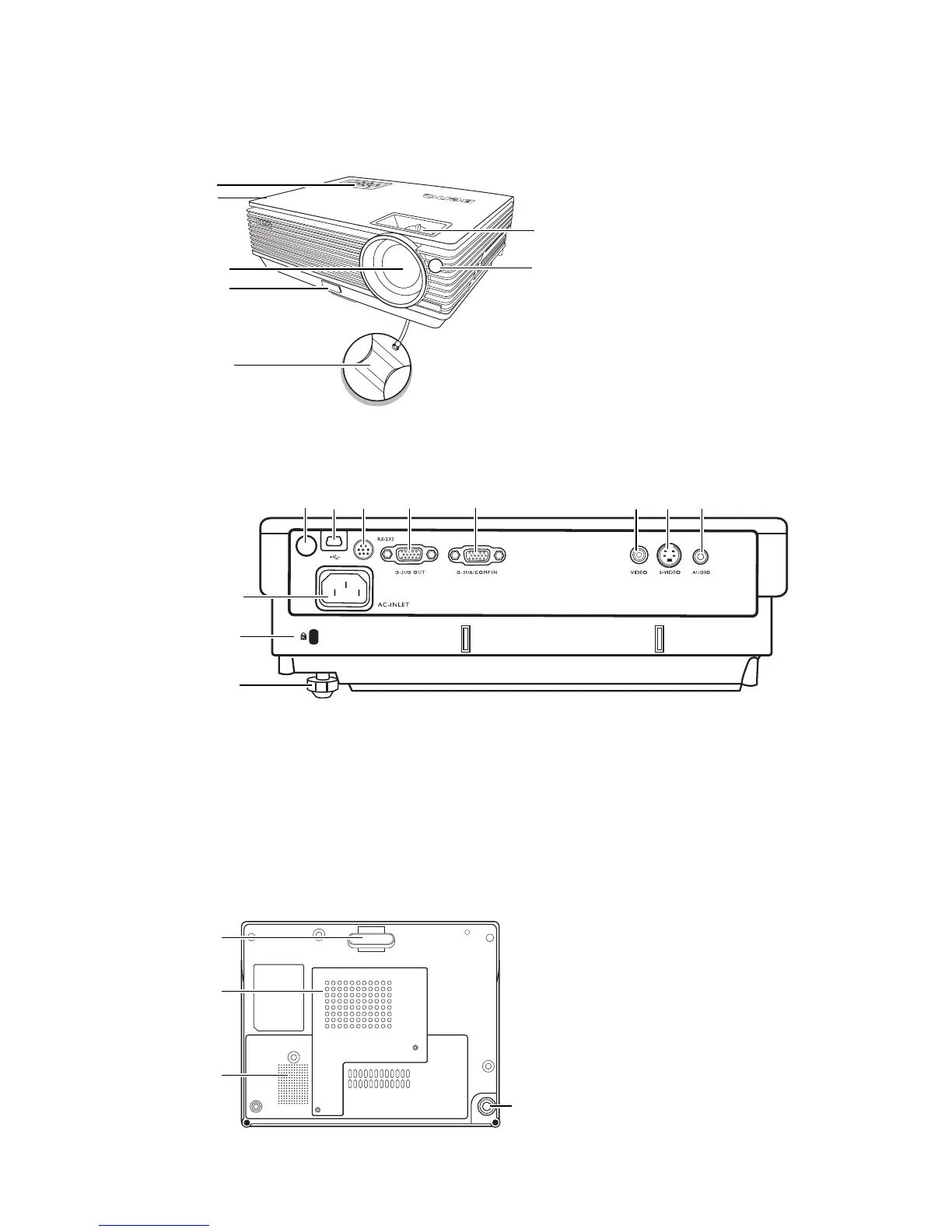

Projector exterior view
Front/upper side
Rear side
See "Connection" on page 17 for details.
Lower side view
1. External control panel
(See "Projector" on page 8 for
details.)
2. Vent (heated air exhaust)
3. Projection lens
4. Quick-release button
5. Lens cap
6. Focus ring and Zoom ring
7. Front IR remote sensor
7
6
2
3
4
5
1
8. Rear adjuster foot
9. Kensington anti-theft lock slot
10. AC power cord inlet
11. Rear IR remote sensor
12. USB socket
13. RS232 control port
14. RGB signal output socket
15. RGB (PC)/Component video (YPbPr/
YCbCr) signal input socket
16. Video input socket
17. S-Video input socket
18. Audio socket
11
12
13
14 15 16 17 18
8
9
1
0
19. Quick-release foot
20. Lamp cover
21. Speaker grill
22. Rear adjuster foot
2
0
2
1
19
22
