53

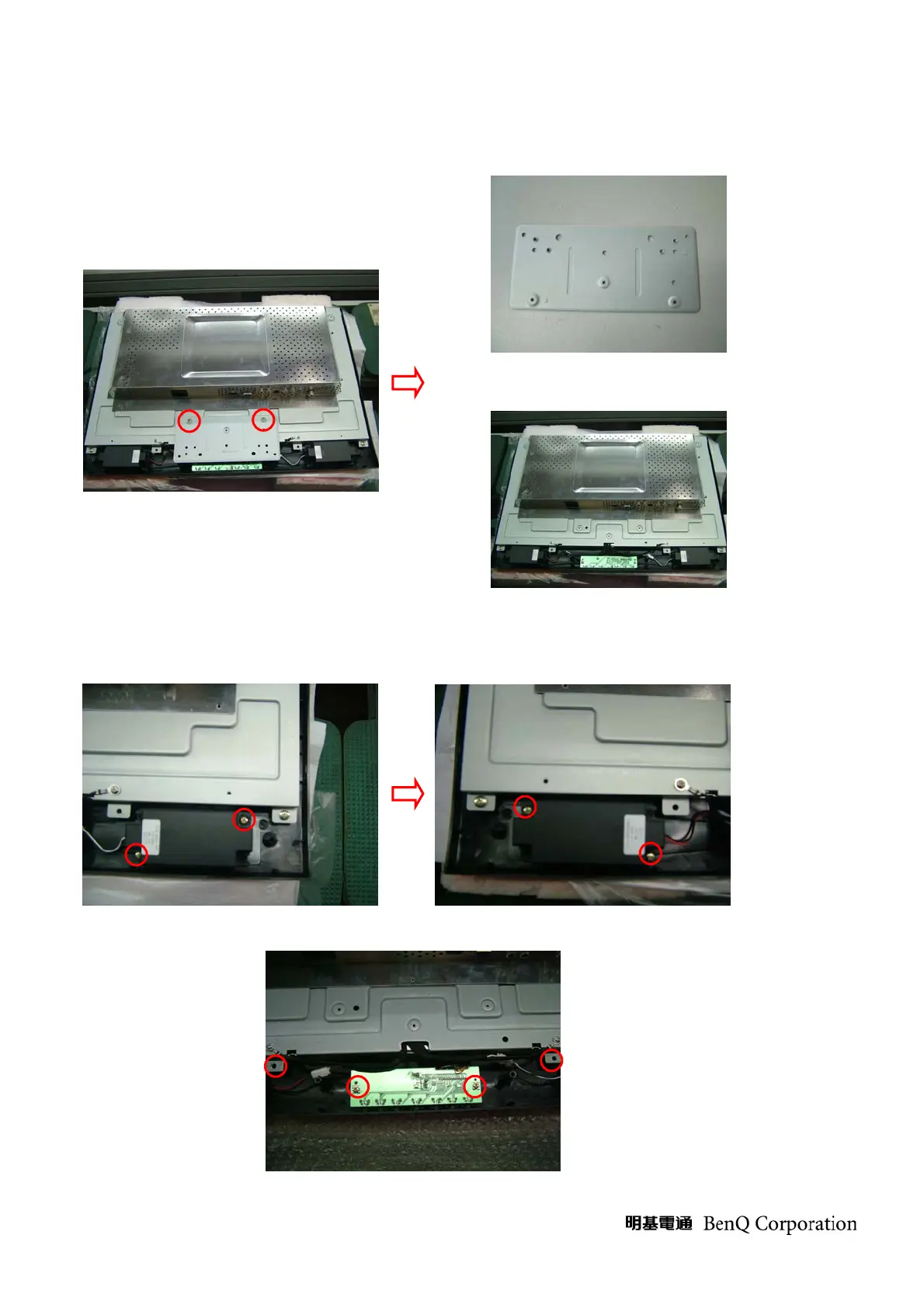

3. Disassembly of Main Board, Power Board, Front Cover and Panel Unit.
3.1. Unscrew 2 screws to remove Bracket fix.
3.2. Unscrew 8 screws to move Speaker and KeyPad Board .
Bracket fix
