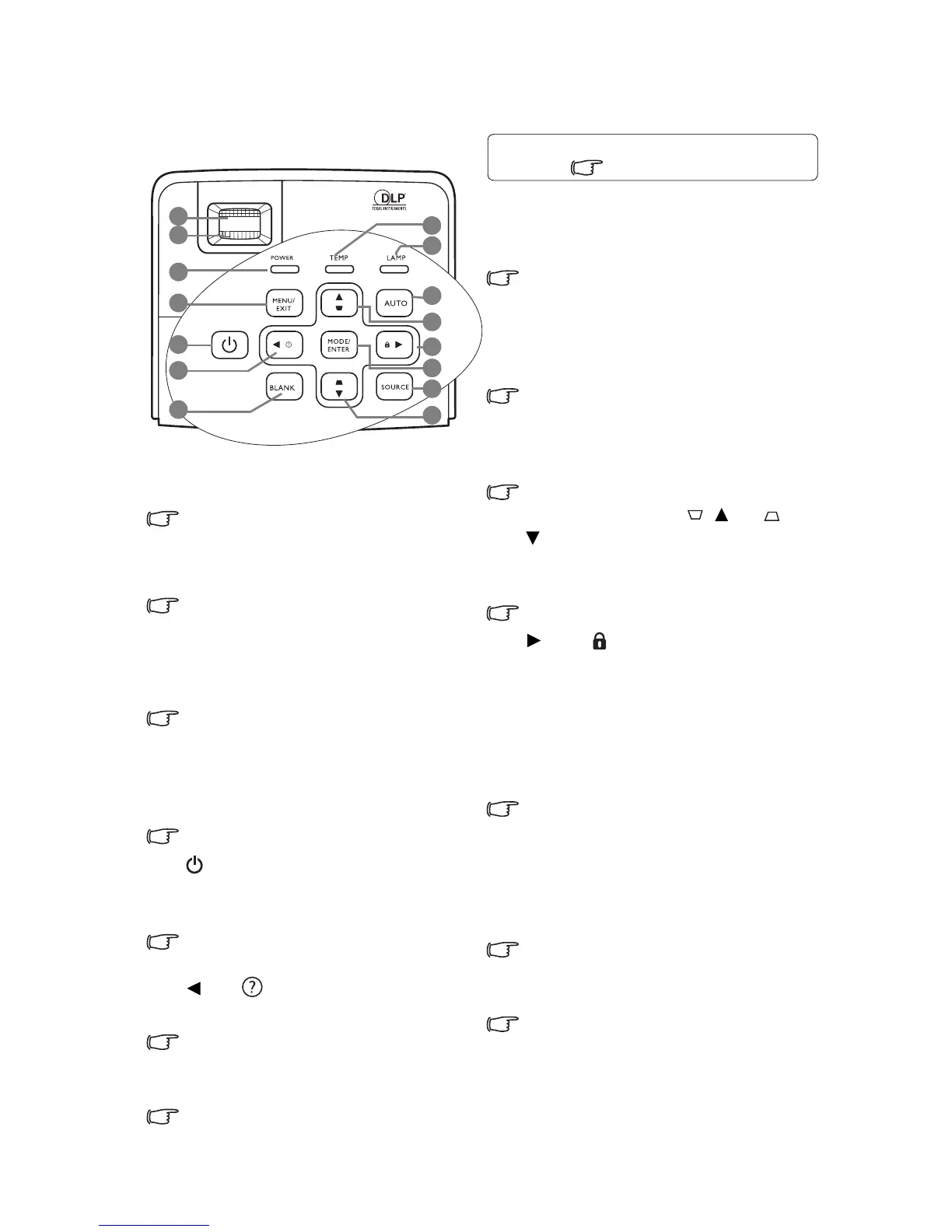

Controls and functions
Projector
8. TEMPerature warning light
Lights up red if the projector's
temperature becomes too high.
"Indicators" on page 58
9. LAMP indicator light
Indicates the status of the lamp. Lights up
or flashes when the lamp has developed a
problem.
"Indicators" on page 58
10. AUTO
Automatically determines the best picture
timings for the displayed image.
"Auto-adjusting the image" on page 24
11. Keystone/Arrow keys ( / Up, /
Down)
Manually corrects distorted images
resulting from an angled projection.
"Correcting keystone" on page 28
12. Right/
Activates panel key lock.
When the On-Screen Display (OSD)
menu is activated, the #6, #11, and #12
keys are used as directional arrows to
select the desired menu items and to make
adjustments.
"Locking control keys" on page 38, "Using
the menus" on page 25
13. MODE/ENTER
Selects an available picture setup mode.
Activates the selected On-Screen Display
(OSD) menu item.
"Selecting a picture mode" on page 32
14. SOURCE
Displays the source selection bar.
"Switching input signal" on page 29
1. Focus ring
Adjusts the focus of the projected image.
"Fine-tuning the image size and clarity" on
page 24
2. Zoom ring
Adjusts the size of the image.
"Fine-tuning the image size and clarity" on
page 24
3. POWER indicator light
Lights up or flashes when the projector is
under operation.
"Indicators" on page 58
4. MENU/EXIT
Turns on the On-Screen Display (OSD)
menu. Goes back to previous OSD menu,
exits and saves menu settings.
"Using the menus" on page 25
5. Power
Toggles the projector between standby
mode and on.
"Starting up the projector" on page 23,
"Shutting down the projector" on page 43
6. Left/
Starts the FAQ function.
"Utilizing FAQ function" on page 37
7. BLANK
Used to hide the screen picture.
"Hiding the image" on page 37
1
5
11
10
12
14
11
13
6
9
8
3
4
7
2
For details, see the info provided behind the
hand sign .
