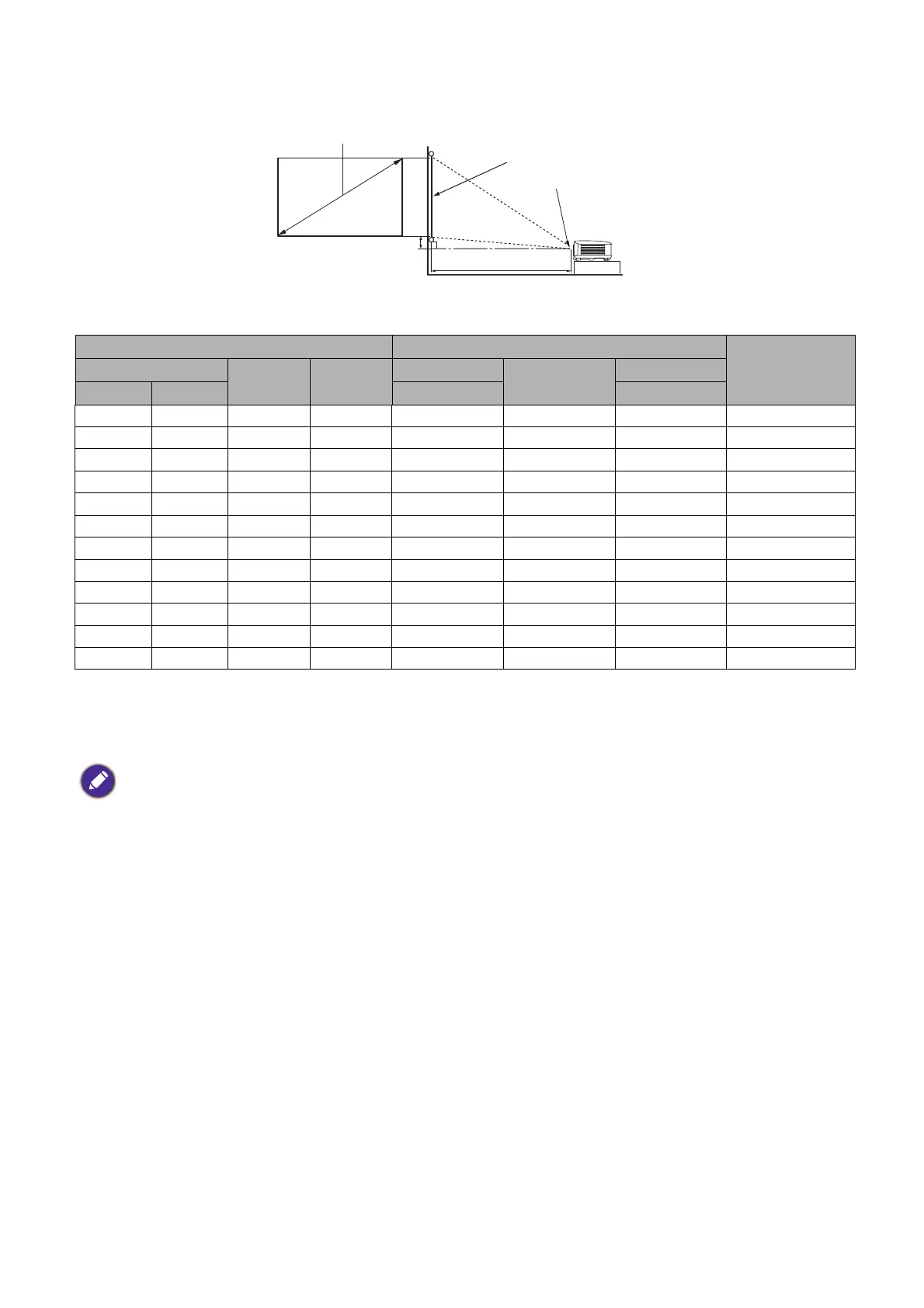

14 Positioning your projector
MW605/MW605w
• The screen aspect ratio is 16:10 and the projected picture is in a 16:10 aspect ratio
For example, if you are using a 120-inch screen, the recommended projection distance is 4200 mm.
• If your measured projection distance is 5200 mm, the closest match in the "Projection distance (mm)"
column is 5250 mm. Looking across this row shows that a 150'' (about 3.8 m) screen is required.
Screen size Projection distance (mm)
Offset (mm)Diagonal
H (mm) W (mm)
Min distance
Average
Max distance
Inch mm (max. zoom) (min. zoom)
35 889 471 754 1168 1225 1282 0
40 1016 538 862 1335 1400 1465 0
50 1270 673 1077 1669 1750 1831 0
60 1524 808 1292 2003 2100 2197 0
80 2032 1077 1723 2671 2800 2929 0
100 2540 1346 2154 3339 3500 3662 0
120 3048 1615 2585 4006 4200 4394 0
150 3810 2019 3231 5008 5250 5492 0
200 5080 2692 4308 6677 7000 7323 0
220 5588 2962 4739 7345 7700 8056 0
250 6350 3365 5385 8346 8750 9154 0
300 7620 4039 6462 10016 10500 10985 0
All measurements are approximate and may vary from the actual sizes.
BenQ recommends that if you intend to permanently install the projector, you should physically test the projection
size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this
projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your
installation location.
H
W
Projection distance
Center of lens
Screen
16:10 Screen diagonal
Offset
