Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
In the connections shown below, some cables may not be included with the projector (see "Shipping contents"
on page 8). They are commercially available from electronics stores.
The connection illustrations below are for reference only. The rear connecting jacks available on the projector
vary with each projector model.

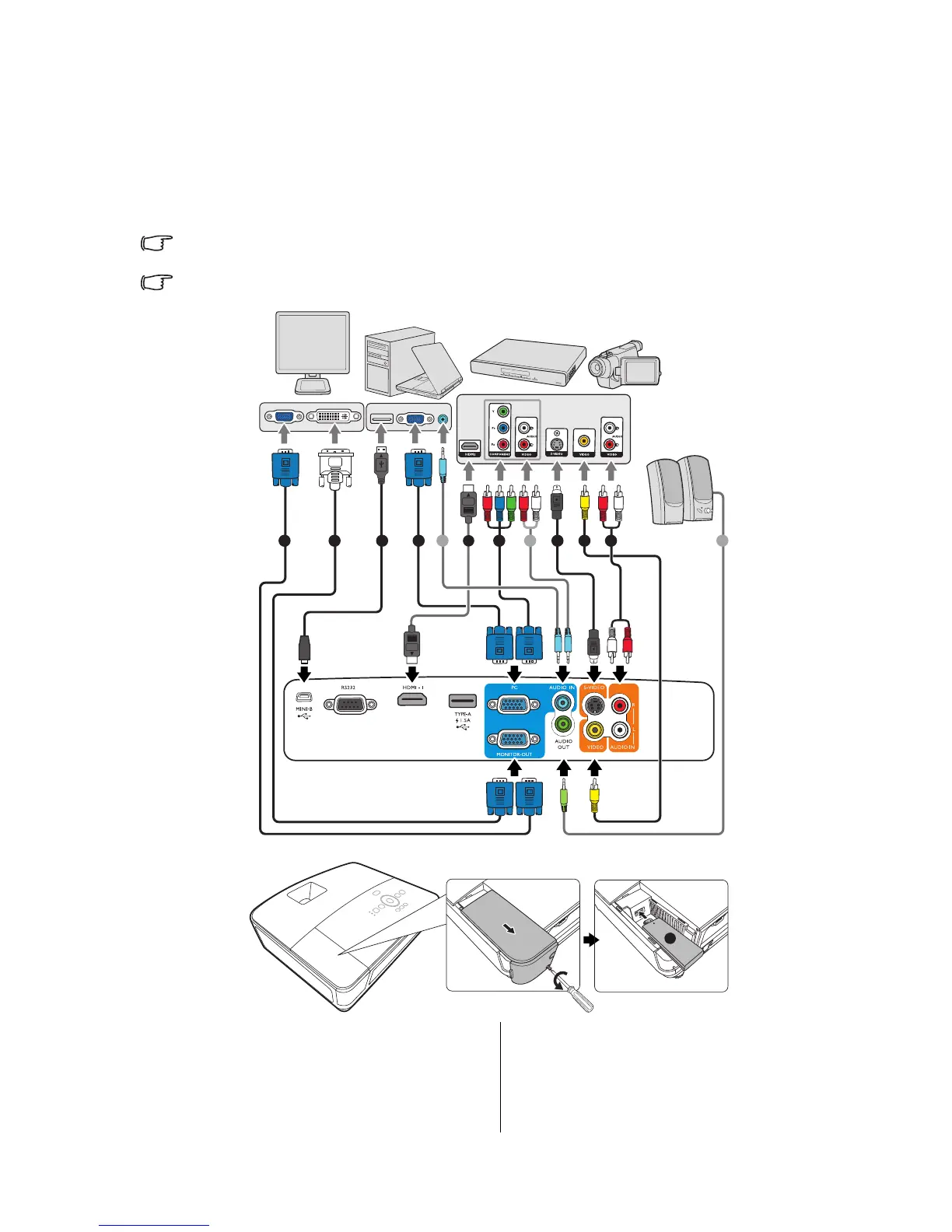

1. VGA cable
2. VGA to DVI-A cable
3. USB cable
4. Component Video to VGA (D-Sub)
adapter cable
5. S-Video cable
6. Video cable
7. Audio cable
8. HDMI cable
9. QCast dongle
7 7 7
4
1 2 13
58 76
a
b
9
To Next Page
