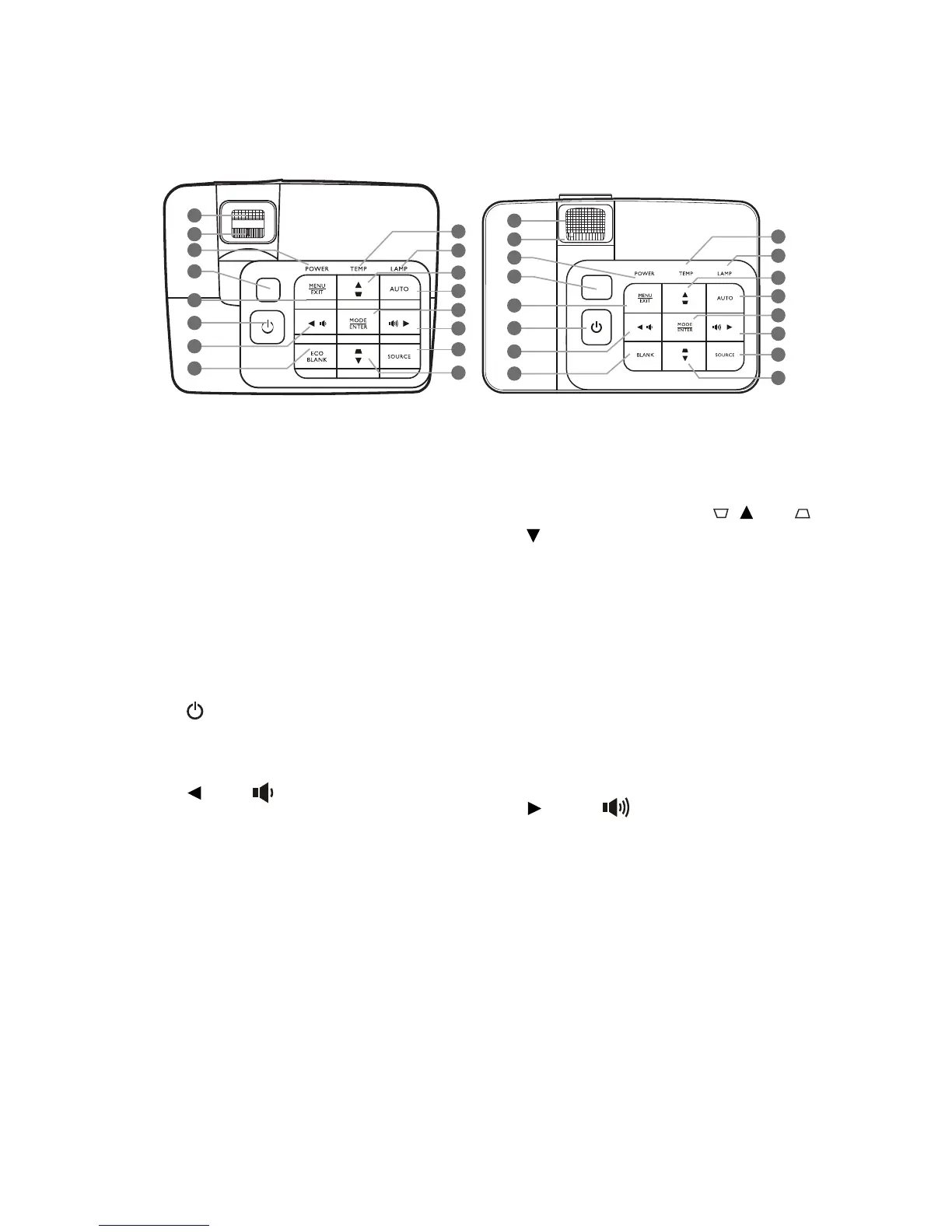

Controls and functions
Projector
1. Focus ring
Adjusts the focus of the projected image.
2. Zoom ring
Adjusts the size of the image.
3. POWER indicator light
Lights up or flashes when the projector is
under operation.
4. Top IR remote sensor
5. MENU/EXIT
Turns on the On-Screen Display (OSD)
menu. Goes back to previous OSD menu,
exits and saves menu settings.
6. POWER
Toggles the projector between standby
mode and on.
7. Left/
Decreases the projector volume.
8. ECO BLANK
BLANK
Used to hide the screen picture.
9. TEMPerature warning light
Lights up red if the projector's
temperature becomes too high.
10. LAMP indicator light
Indicates the status of the lamp. Lights up
or flashes when the lamp has developed a
problem.
11. Keystone/Arrow keys ( / Up, /
Down)
Manually corrects distorted images
resulting from an angled projection.
12. AUTO
Automatically determines the best picture
timings for the displayed image.
13. MODE
Selects an available picture setup mode.
ENTER
Activates the selected On-Screen Display
(OSD) menu item.
14. Right/
Increases the projector volume.
When the On-Screen Display (OSD)
menu is activated, the #7, #11, and #14
keys are used as directional arrows to
select the desired menu items and to
make adjustments.
15. SOURCE
Displays the source selection bar.
