29 Menu operation
Display
Aspect Ratio

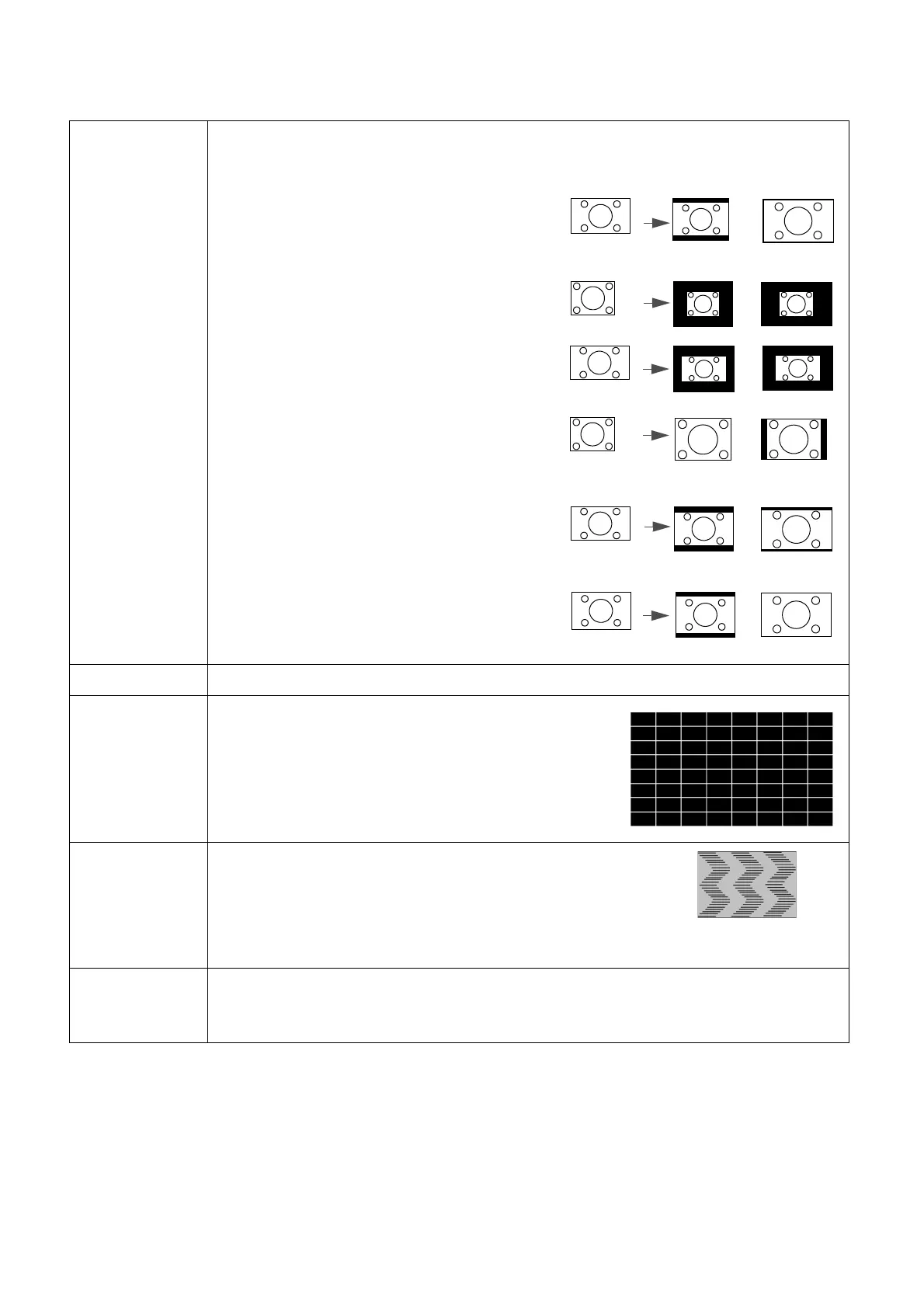

There are several options to set the image's aspect ratio depending on your input
signal source.
• Auto: Scales an image proportionally to fit
the projector's native resolution in its
horizontal or vertical width.
• Real: Projects an image as its original
resolution and resizes it to fit within the
display area. For input signals with lower
resolutions, the projected image will be
displayed in its original size.
• 4:3: Scales an image so that it is displayed in
the center of the screen with a 4:3 aspect
ratio.
• 16:9: Scales an image so that it is displayed in
the center of the screen with a 16:9 aspect
ratio.
• 16:10: Scales an image so that it is displayed
in the center of the screen with a 16:10
aspect ratio.
Keystone Corrects any keystoning of the image. See Correcting keystone on page 16.
Test Pattern
Adjusts the image size and focus and check that the
projected image is free from distortion.
PC &
Component
YPbPr Tuning
• Phase: Adjusts the clock phase to reduce image
distortion. This function is only available when a PC
signal (analog RGB) or YPbPr signal is selected.
• H. Size: Adjusts the horizontal width of the image.
This function is only available when a PC signal (analog RGB) is selected.
Position
Displays the position adjustment page. To move the projected image, use the
directional arrow keys. This function is only available when a PC signal (analog RGB)
is selected.
15:9 picture
(MX808STH)
(MW809STH)
To Next Page
