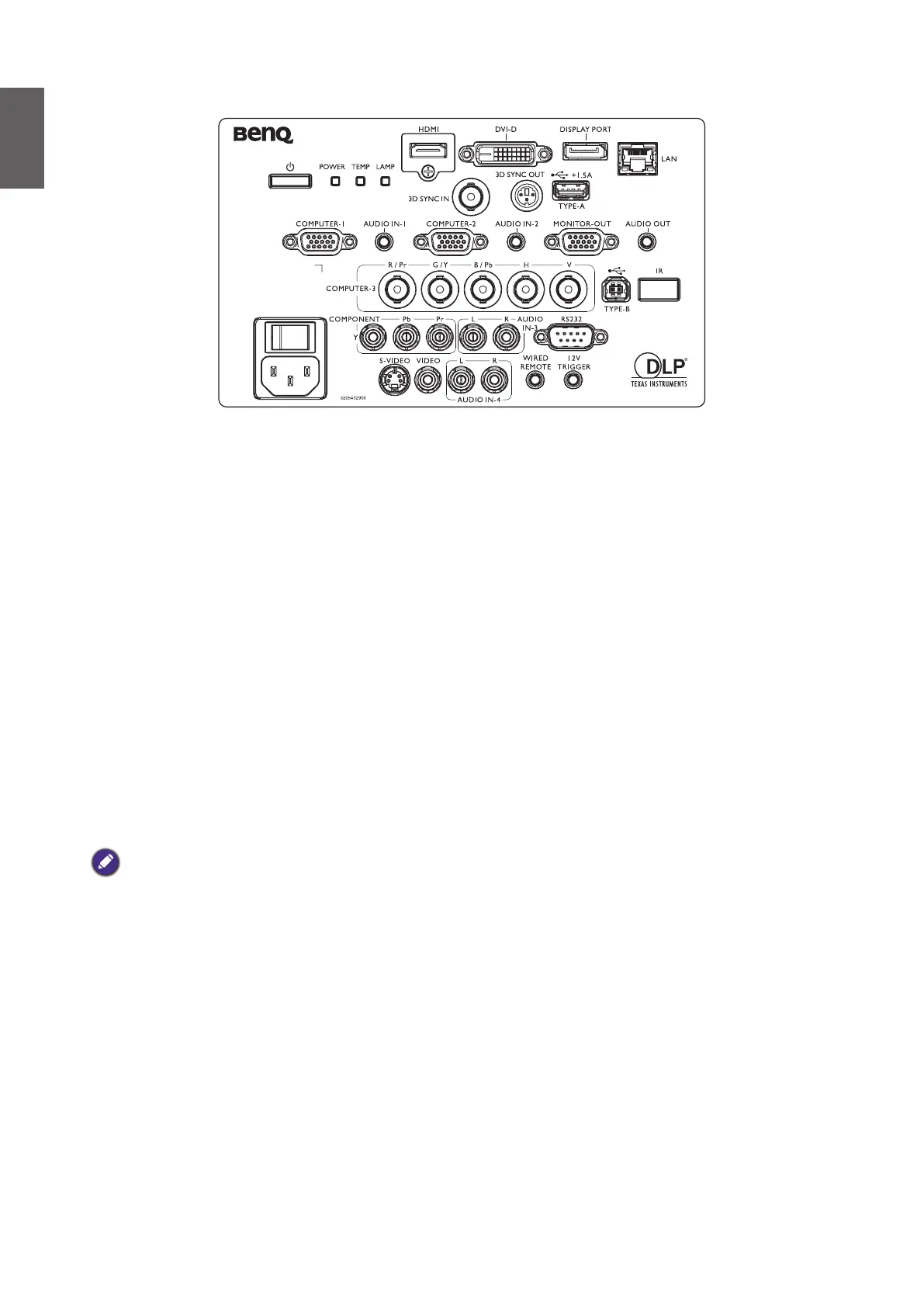

Terminals
HDMI
Connection to HDMI source.
DVI-D
Connection to DVI source.
DISPLAY PORT
Connection to DISPLAY PORT source.
LAN
For connection to RJ45 Cat5/Cat6 Ethernet cable to control the
projector through a network.
3D SYNC IN
Connect 3D sync in cable from a computer or an enabled device.
3D SYNC OUT
Connection to 3D IR sync signal transmitter.
USB 1.5A
Support 5V/1.5A output.
COMPUTER-1, COMPUTER-2
15-pin VGA port for connection to RGB, component HD source, or PC.
AUDIO IN-1/-2
Connection to an audio input source via an audio cable.
MONITOR OUT
Connection to other display equipment for concurrent playback display.
AUDIO OUT
Connection to a speaker or headset.
COMPUTER-3 (R/Pr, G/Y, B/Pb, H, V)
Connection to RGB signal with BNC type input terminal.
USB TYPE-B
Maintenance exclusive port for authorized maintenance personnel only.
COMPONENT (Y, Pb, Pr)
Connect to Component source.
AUDIO IN-3/-4(L/R)
Connection to an audio input source via an audio or audio L/R cable.
RS-232
Standard 9-pin D-sub interface for connection to PC control system and
projector maintenance.
S-VIDEO
Connection to S-VIDEO source.
VIDEO
Connection to a video source.
WIRED REMOTE
Connection to remote control for wire remote control.
12V TRIGGER
3.5mm mini earphone jack, employs 200mA display relay to provide
12(+/-1.5)V output and short circuit protection.
Caution:
Make sure the port is valid before inserting a wired remote controller. The remote controller may be damaged in
case of an invalid port, e.g. a wired remote controller is connected to trigger output.
