16 How to assemble your monitor hardware
6. Connect USB devices.

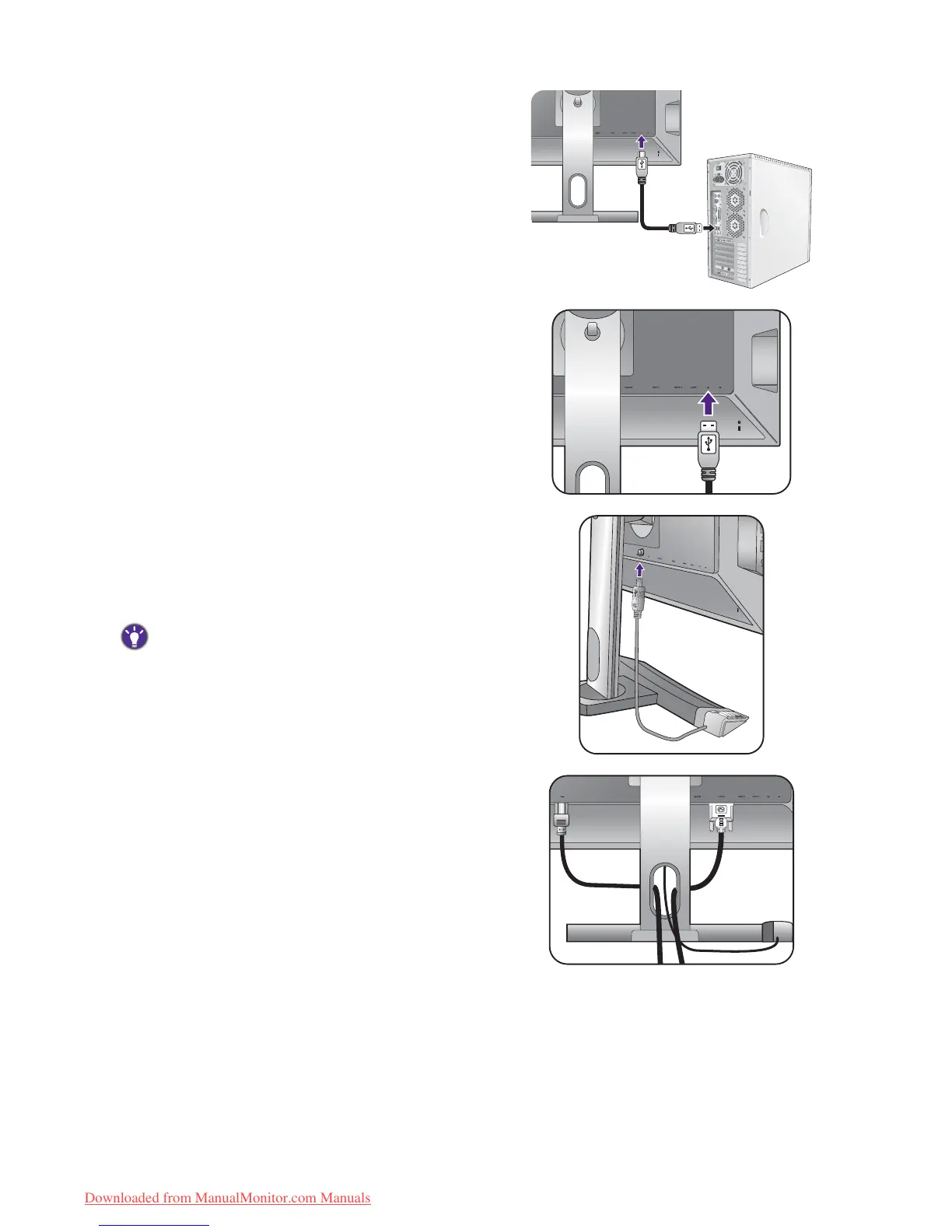

Connect the USB cable between the PC and the
monitor (via the upstream USB port at the back).
This upstream USB port transmits data between
the PC and the USB devices connected to the
monitor.
Connect USB devices via other USB ports
(downstream) on the monitor. These downstream
USB ports transmit data between connected USB
devices and the upstream port.
See picture on the right.
7. Connect the S Switch to the monitor.
Connect the S Switch to the S Switch socket found
on the back of the monitor. And place the S Switch
next to your monitor base.
You can place the S Switch either on the left or on the right
of the monitor base.
8. Organize the cables.
TV OUT
PDIF-OUT
SDIF-OUT
