5.2. Disassembly /Assembly
5.2.1 Disassembly SOP
Preparation before disassemble
1. Clean the room for disassemble
2. Identify the area for monitor
3. Check the position that the monitors be placed and the quantity of the monitor ;prepare the area for
material flow; according to the actual condition plan the disassemble layout
4. Prepare the implement, equipments, materials as bellow:
1) Press-fixture
2) Working table
3) Screw-driver
4) Knife*1
5) Glove
6) Cleaning cloth
7) ESD protection
ite
m

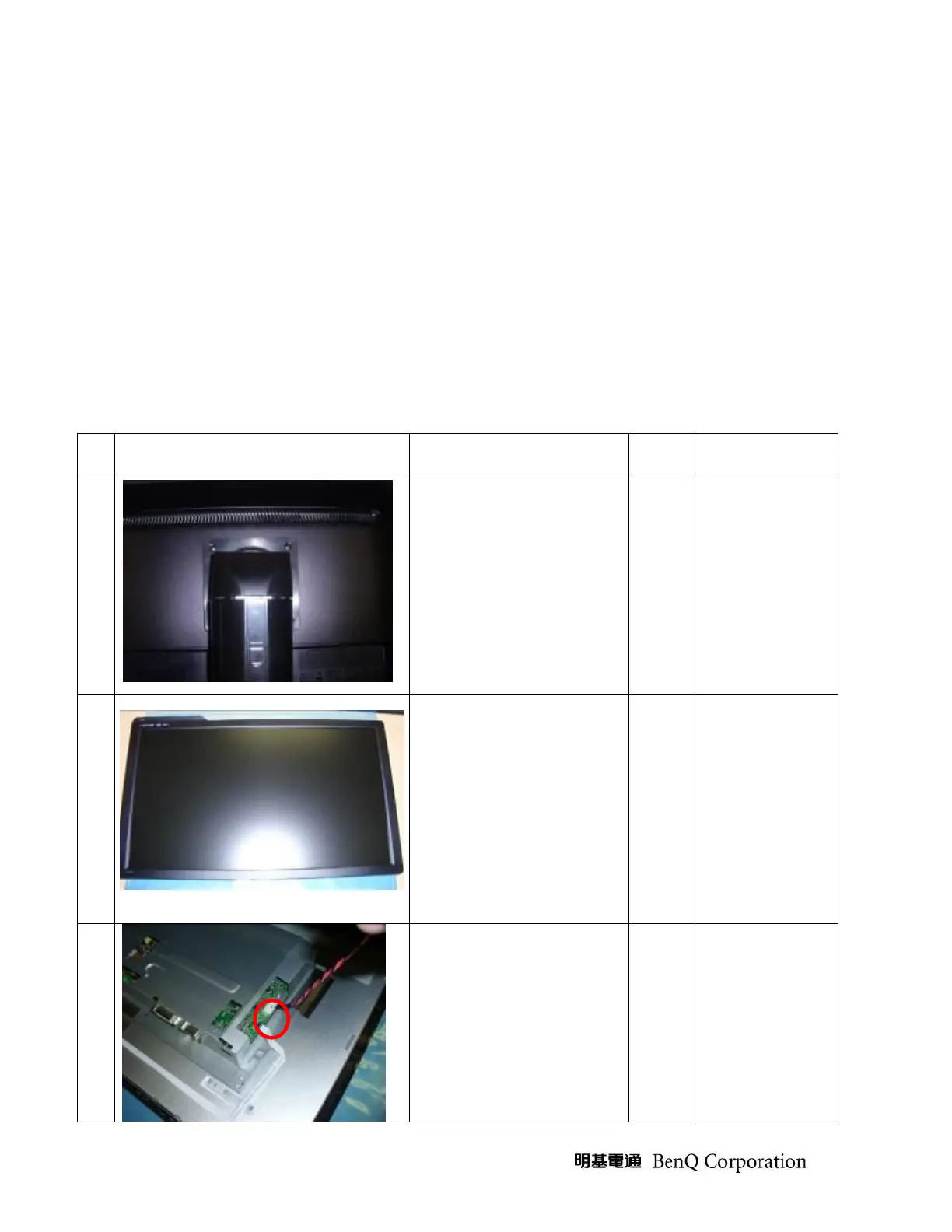

picture Operation Tool Notes
1
Disassemble the stand
4 screws. Take off the
stand .
Screw
-driver
2
Disassembly the BZL from
the monitor, notice the
disassembly order :
1.Left (1) parts of BZL
2.Top (2) parts of bezel
3.Bottom (3) parts of BZL
4. Right (4) parts of BZL
Don’t draw the BZL
When
disassembly the
BZL ,notice
don’t bend the
C/B .man must
wear glove
The purpose is
loose the BZL
3
Turn over the monitor，
Unlock the wires,
Dismantle the Rear cover
from the monitor.
