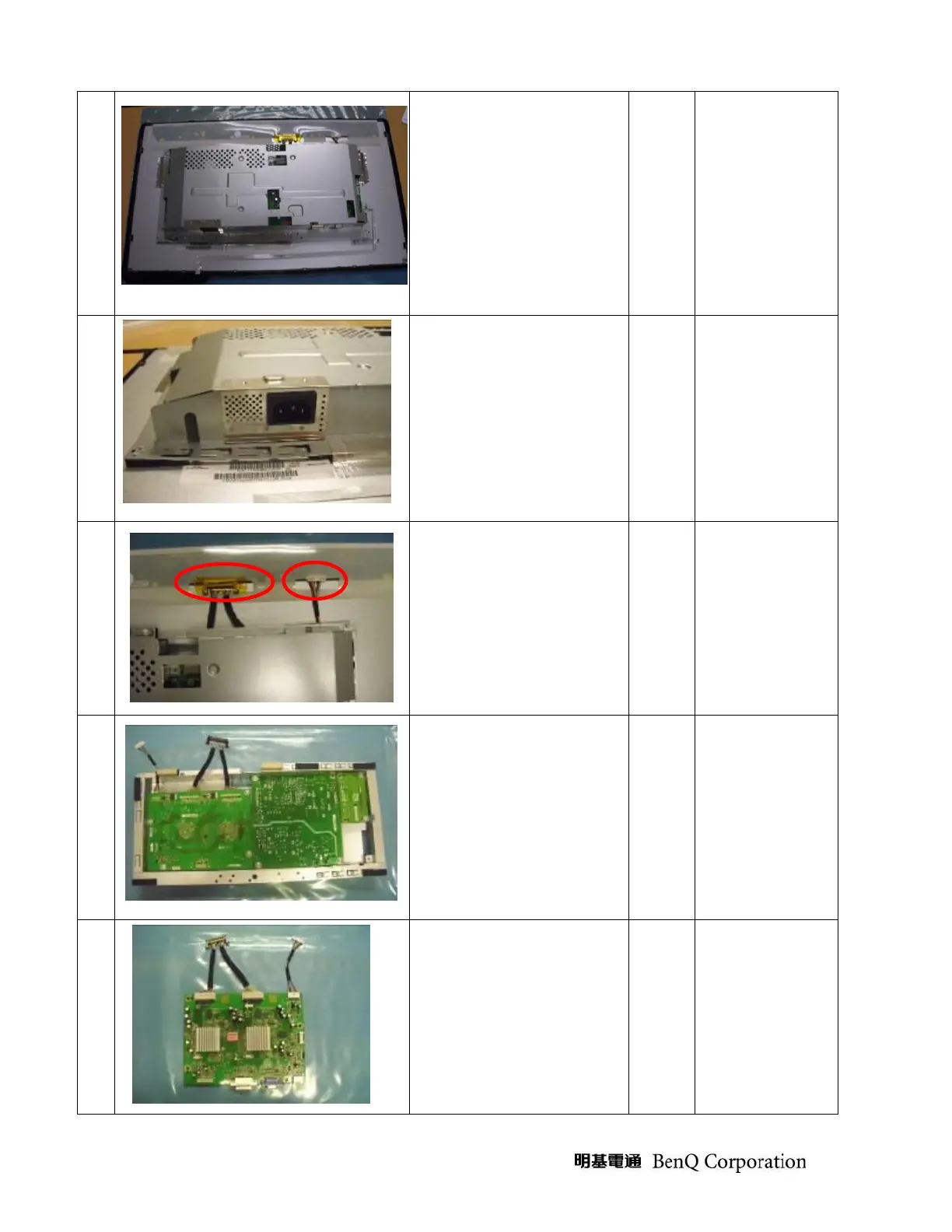

- 43 -
8
Tear down all Al foils
9
Disassembled the AC-soc
shielding .
10
Unlock the LVDS wire and
panel wire.
11
Disassembled the PCBA
shielding : 9 screws
Screw
-driver
12
Disassemble the PCBA
from Main-SHD and
disassemble the wire from
I/F BD
