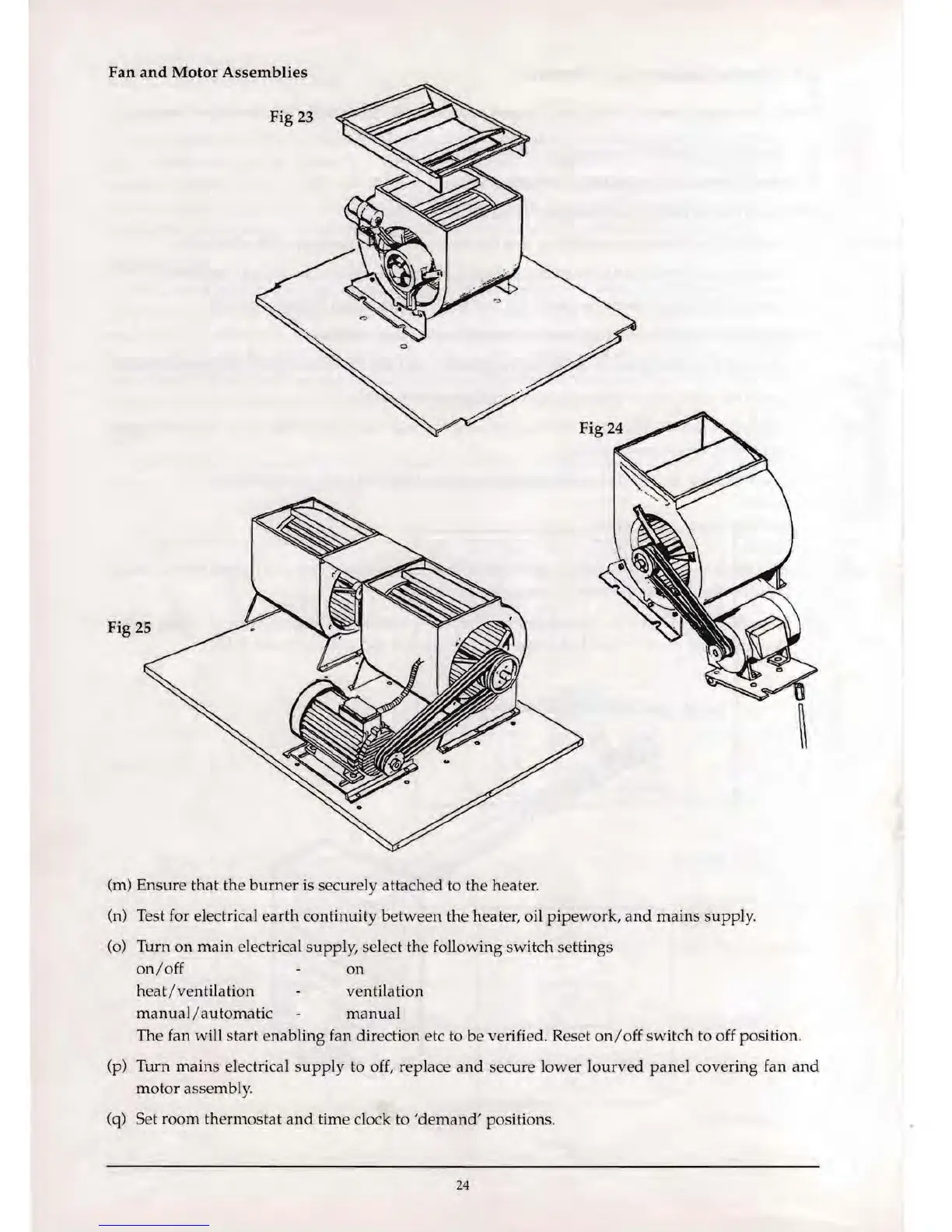

Fig 23
Fan and Motor Assemblies
Fig 25
(m) Ensure that the burner is securely attached to the heater.
(n) Test for electrical
earth continuity between the heater, oil pipework, and mains supp l y.
(0) Turn on main electrical supply, select the following switch settings
on/off on
heat/ventilation ventilation
manual/automatic manual
The fan will start enabling fan direction etc to be verified. Reset on/ off switch to off position.
(p) Turn
mains electrical supply to off, replace and secure lower lourved panel covering fan and
motor assembly .
(q) Set room
thermostat and time clock to 'demand' positions.
24
