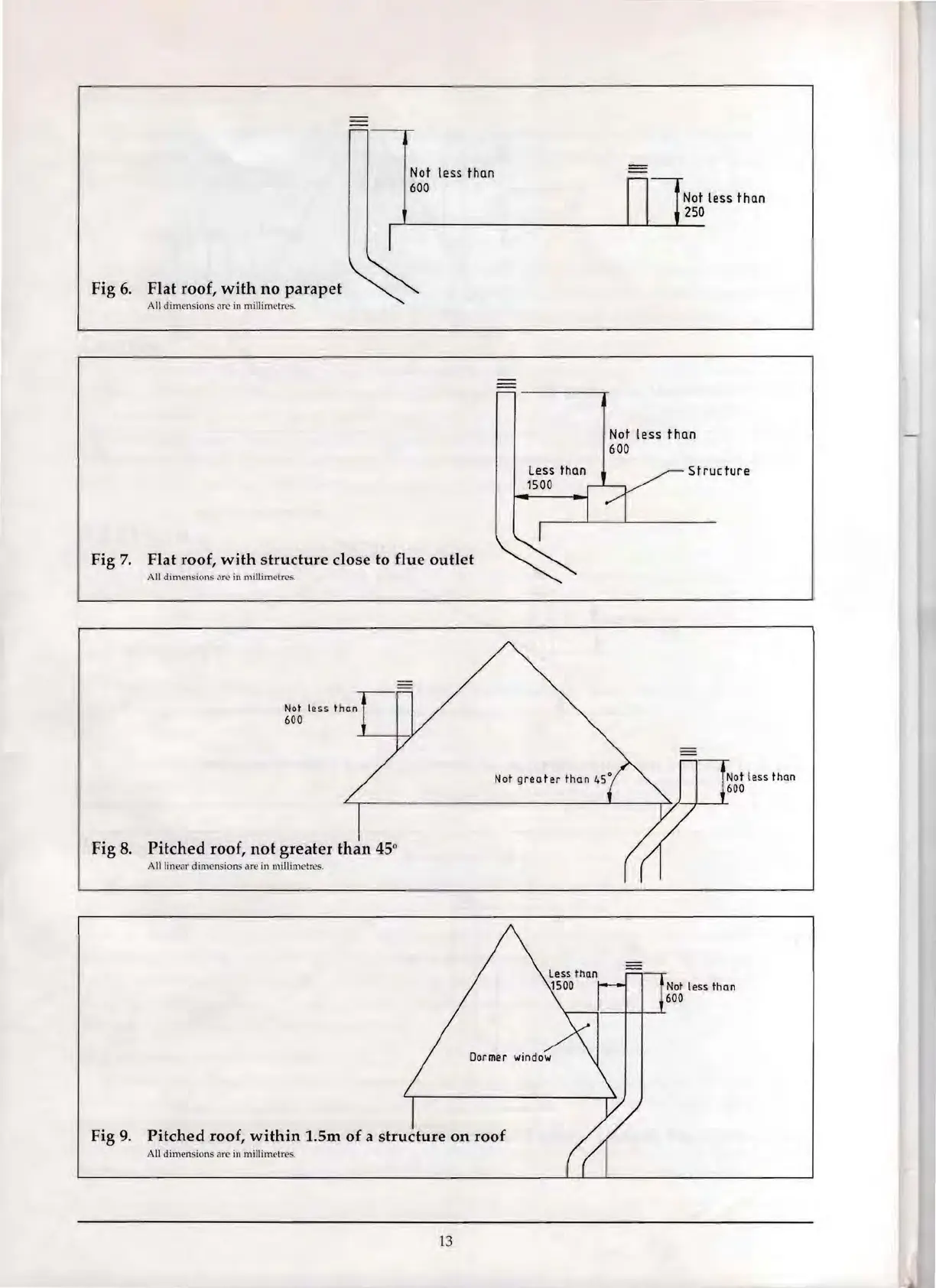

Fig 6.
Flat roof, with no parapet
All dim ens ions ,He' in millim ~ tr es.
Not I less than
600
structure
Fig 7. Flat roof, with structure close to flue outlet
All dimen Sions tln':- in millime trcs.
Not less than
600
Not greater than 45°
Not less than
600
Fig 8. Pitched roof, not greater than 45°
All Iin eCl I' dimens i ons are in millimetres.
Dormer window
Fig 9. Pitched roof, within l.5m of a structure on roof
All dimensi ons arc in millimctres.
Not less than
600
