BENSON OLYMPIC WH - Page 15

No~ less than
1000
I No~ less than
1000

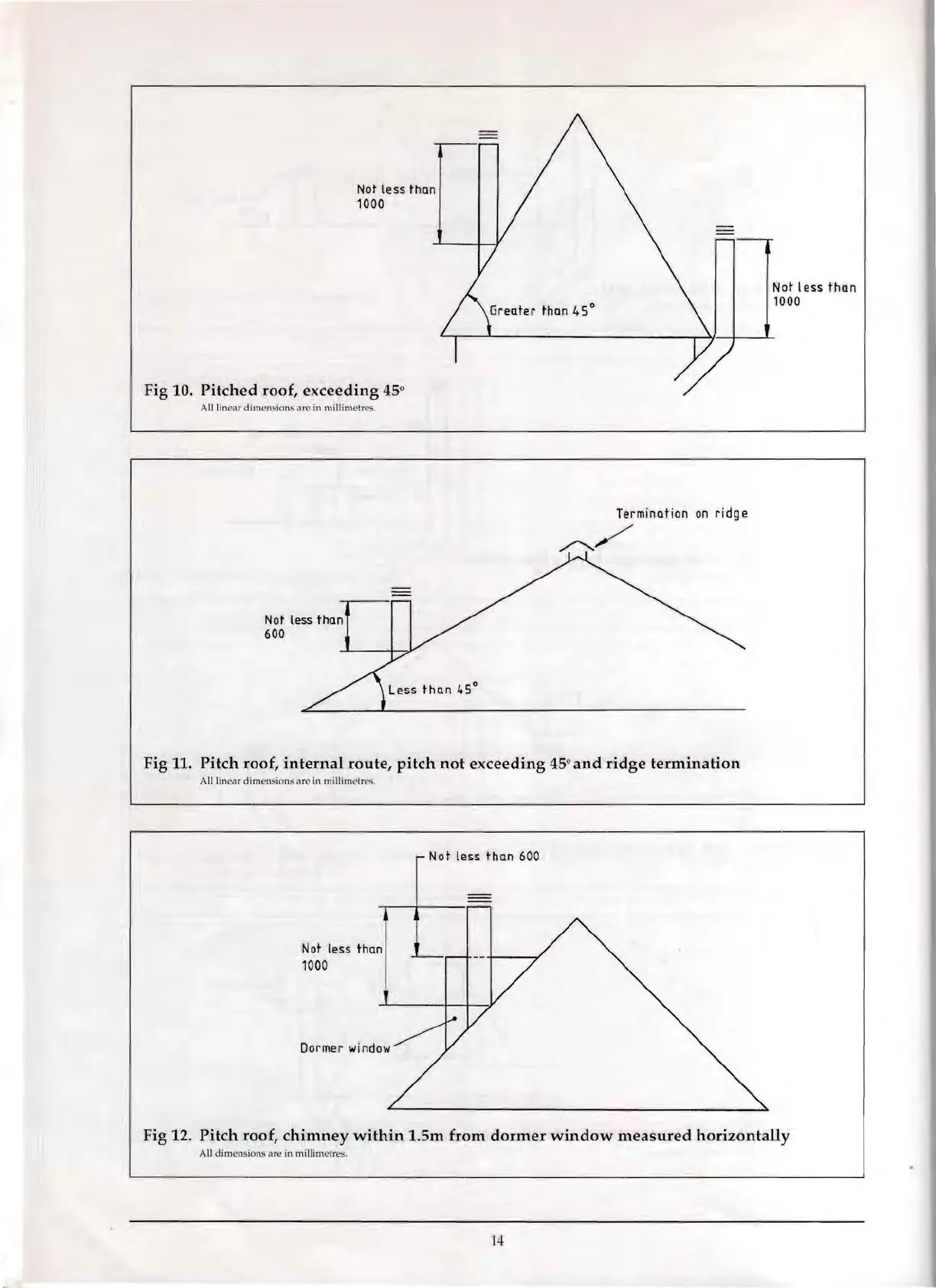

Fig 10. Pitched roof, exceeding 45°
A ll lin cnr dimensions tl re in millimctrcs.
Termination on ridge
/""'-./
Fig 11. Pitch roof, internal route, pitch not exceeding 45° and ridge termination
Ailiin eM di m (,ll~ i o n s arc in mill im etn .. 's.
Not less than
600
less than 45
0
Not less than
1000
Dormer window
Not less than 600
Fig 12. Pitch roof, chimney within 1.5m from dormer window measured horizontally
A ll dimens ions are in millimetr e's .
14
