C
32

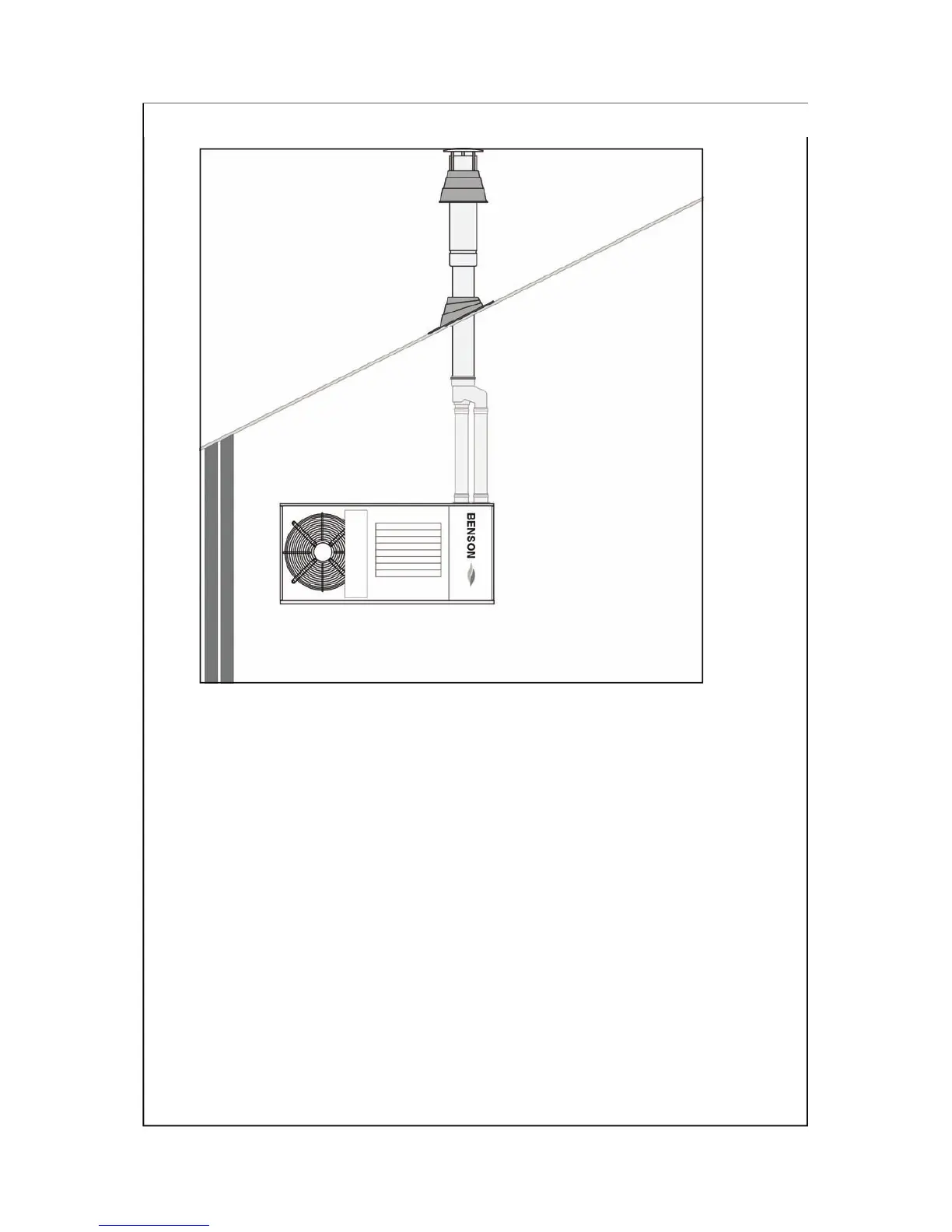

Vertical Co axial flue Kit options
L1 maximum combined flue length 10 metres
Coaxial Terminal
Extra pipes to extend the flue are available as an option
Pipe Ø 130 x 1000 mm
Pipe Ø 130 x 500 mm
Pipe Ø 130 x 250 mm
Bend
Ø 130 x 45
0
Bend Ø 130 x 90
0
Part No
33-55-207
33-54-201
33-54-202
33-54-203
33-54-204
33-54-205
Option C
12
Not Illustrated Contact Benson Technical Dept
In this configuration the heater is connected to a horizontal flue system discharging the
products of combustion and bringing in the combustion air from outside the building in
which the heater is located.
The outlet / inlet must be through the wall and may be made with two separate pipes or
with a horizontal coaxial concentric terminal.
Not always practical in the Bi Directional configuration.
