Section 1 – Operating Information
15
PART NUMBER 330533 - AXX (SEE NOTE)
NOTE
ORDER IN INCREMENTS OF 1.0 FOOT (0.30 m)
EXAMPLE:
0 2 2 FEET (0.61 m)
2 5 25 FEET (7.6 m)
MINIMUM LENGTH = 2 FEET (0.61 m)
MAXIMUM LENGTH = 99 FEET (30 m)

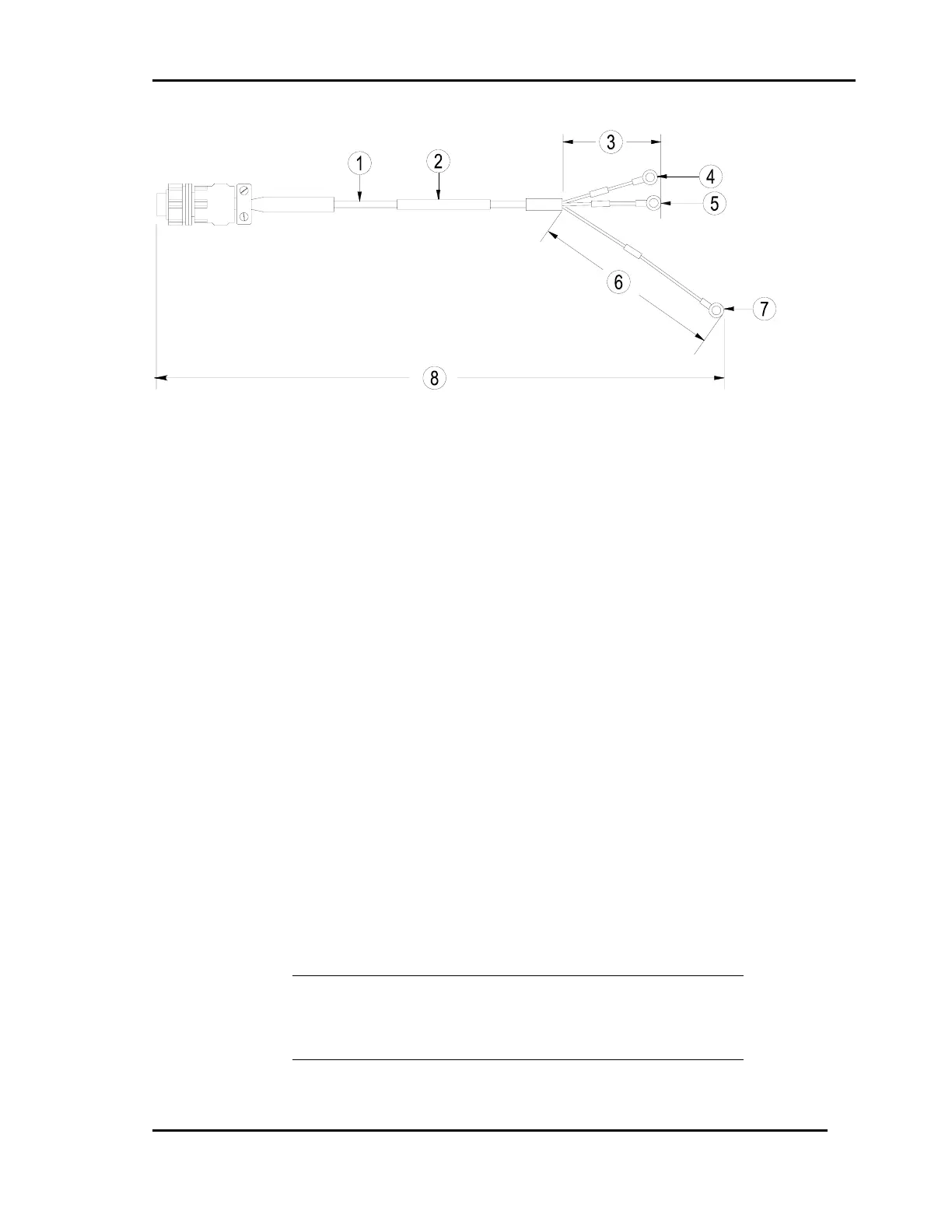

(1) Cable 2-18 AWG conductor shielded, Tefzel insulated
(2) Clear shrink tubing, 63.5 mm (2.5 in)
(3) 51 mm ± 13 mm (2.00 in ± 0.5 in)
(4) “A”, white
(5) “B”, black
(6) 126 mm ± 13 mm (5.00 in ± 0.5 in)
(7) SHLD, green
(8) Overall length ± 150 mm (± 6.0 in)
Figure 1-9. 330533 Cable for use with 330530 Velomitor® Sensor
Application Advisory: This cable is not like most other Velomitor
cables in that the shield and drain wire are connected to the sensor’s
connector. The sensor is connected to the machine that should be
correctly grounded. So the sensor is the primary shield grounding point.
See the special installation details in the section below.
