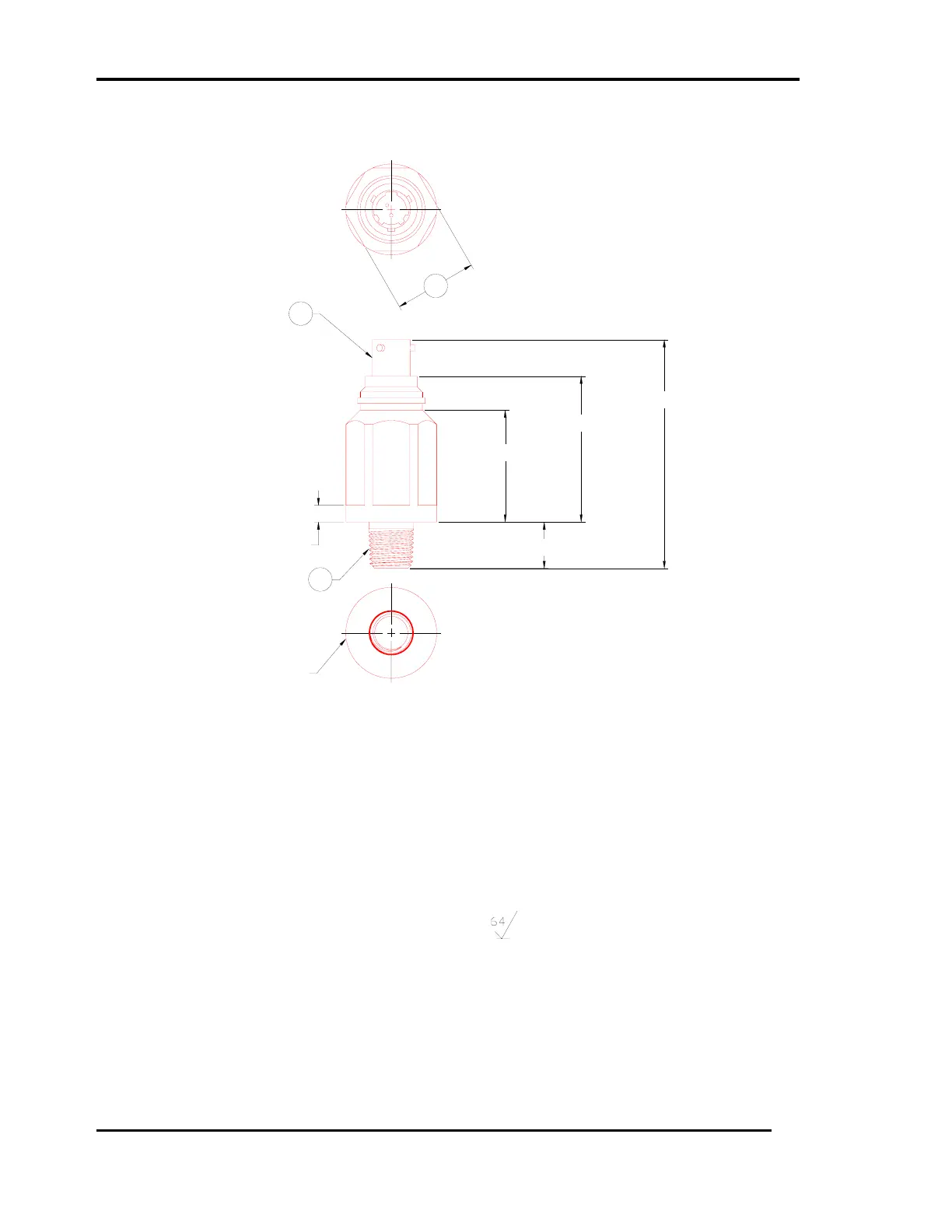

5.4 Mechanical Drawing (330525)
44.7mm [1.76]
34.3mm [1.35]
5.1mm [0.20]
14.2mm [0.56]
70.1mm [2.76]
Ø27.8mm [Ø1.10]
11
2
3
(1) 25.4 mm [1.00] hexagonal
(2) MIL-C-26482 stainless steel receptacle, 2-pin
(3) 1/4 – 18 NPT
Notes:
1. Dimensions are in millimetres [inches]
2. Finished machine surfaces
3. Tolerances:
Decimal .XX = ±0.3 mm [0.01]
.XXX = ±.13 mm [.005]
Figure 5-2
