8
Tractors with angled transaxle:
Install the mounting brackets (item 2), the angled end
towards the front of the tractor and the hole (item 4)
towards the center of the tractor as shown.
If needed, shim with flat washers (item 3) between the
mounting brackets and the transaxle so that the
mounting brackets are parallel with the transaxle.
Secure with the appropriate length bolts and nuts as
shown.
Do not tighten.
ASSEMBLY
View of back of tractor
Install mounting brackets
View of back of tractor
Install mounting brackets

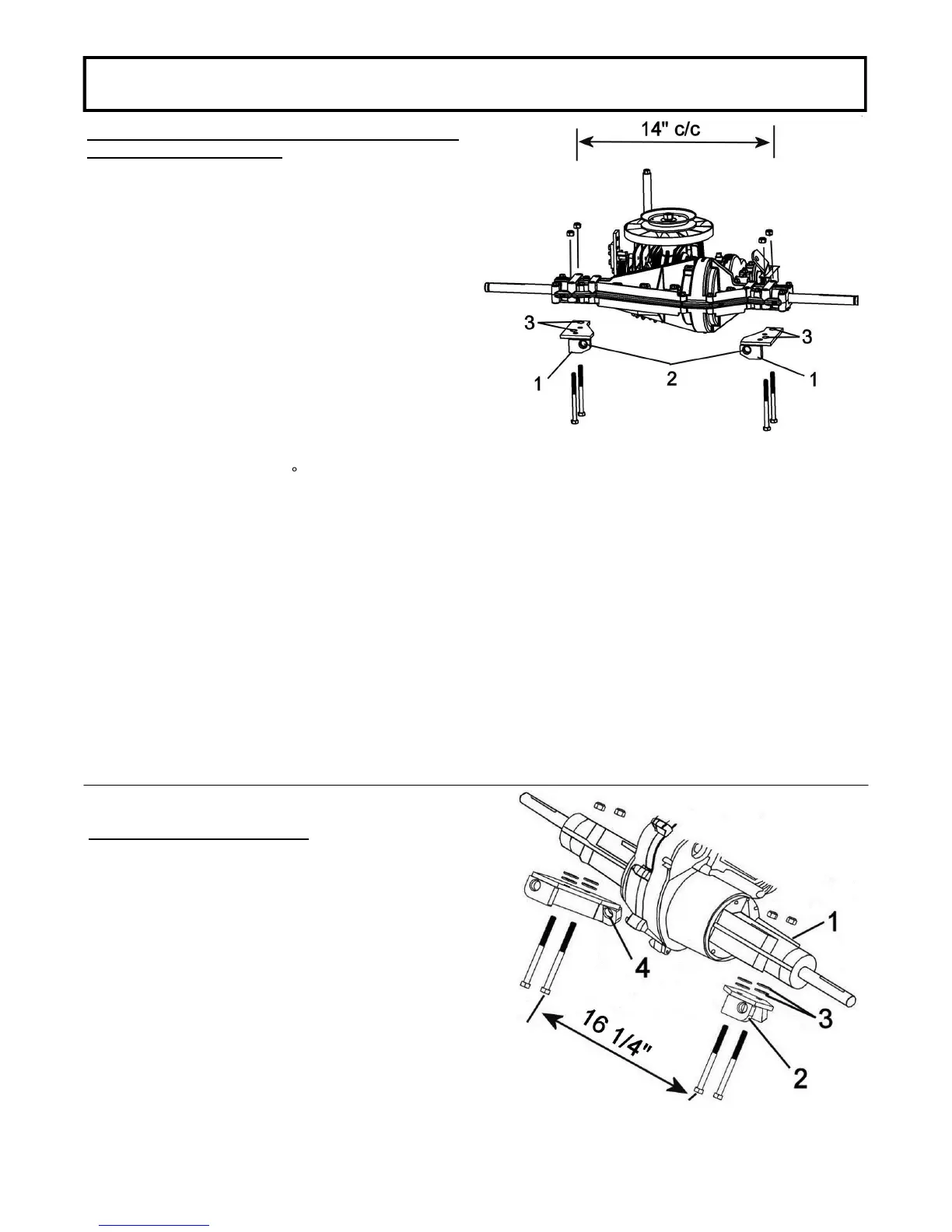

For tractors with a set of holes on the transaxle that
measure 14" center to center.
Install the mounting supports (item 1), the holes (item 2)
towards the back and towards the center of the tractor.
If necessary , reverse the position of the supports in
order to be able to bolt on the transmission.
Secure with the 5/16" x 3 1/2" or 5/16" x 4" hex bolts and
nuts.
NOTE: If your tractor is equipped with 1/2" bolts, use
these bolts in the holes (item 3) on the mounting
brackets.
Do not tighten.
NOTE:
If there is less than 6’’ between the rear bolts of the
transaxle and the hole on the rear tow hitch, turn the
mounting brackets (item 3) 180 (holes item 2, towards
the front) and install the brackets with the holes towards
the inside of the tractor.
There must be a distance of 12 1/4’’ center to center
between the holes (item 2).
