16
ASSEMBLY

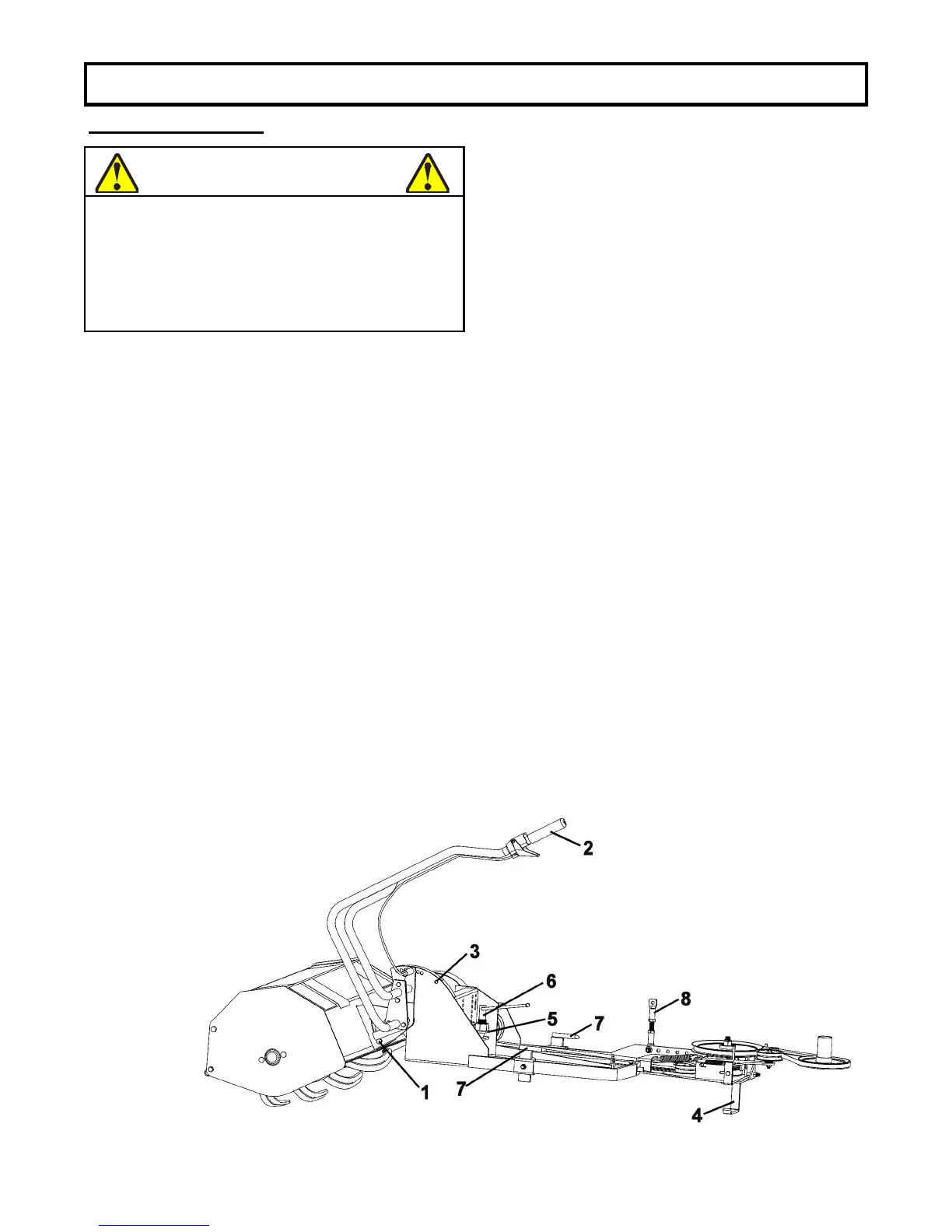

On a level surface remove the mower deck from tractor.
Remove the pin (item 1) from the working position and
install it in the locked position. Secure with the hair pin.
(see next page).
Place the rotary tiller’s frame flat on the ground by
lowering the lift arm.
Slide the rotary tiller under the tractor.
Lower the lift arm (item 2) until it locks into the "UP"
position (item 3) to lift the front portion then lower the
support (item 4) to rest the tiller’s frame on the ground.
WARNING
TO PREVENT INJURIES:
Stop the motor.
Apply parking brake.
Remove the ignition key.
Disconnect the wire from the spark plug(s) and
keep away from spark plug(s) to prevent accidental
starting.
RE-INSTALLATION:
Re-installation
Raise the lift arm until the rotary tiller’s hitch (item 5) is
even with the tractor’s tow hitch. Slide the rotary tiller
hitch onto the tractor’s tow hitch (the holes must be
aligned) and make sure the mounting pins (item 7) slide
into the mounting bracket’s holes (both sides left on
tractor frame).
Secure by screwing firmly the hitch pin (item 6).
Install the link (item 8) on the special bolt left on the
tractor.
Secure with a 2.5 mm hair pin.
