Bercomac 700312-5 - Assembly; Overall View & Required Tools

6
ASSEMBLY
IMPORTANT: TORQUE ALL BOLTS ACCORDING TO TORQUE SPECIFICATION TABLE WHEN STATED:
TIGHTEN FIRMLY. REFER TO PARTS BREAKDOWN SECTION FOR PART IDENTIFICATION.
CONVERSION TABLE
1’’ (po, in) 25.4 mm
1’ (pi, ft) 0.3 m
1 psi (lb/in
2
) 6.89 kPa
1 lb 0.45 kg
1 lbf 4.4 N
1 m/h (mi/h) 1.61 km/h
1 hp (cv) 0.75 kW
GLOSSARY
Quad = V.T.T., A.T.V.
Véhicule tout terrain V.T.T.
All terrain vehicle A.T.V.
P.T.O. = P.D.F
Power take-off (P.T.O)
Prise de force (P.D.F)
TOOLS REQUIRED:
1 Jack
2 Axel stands
1 Pair of pliers
1 Flat screwdriver
5 Wrenches, 3/8", 7/16", 1/2", 9/16", 3/4"
1 Ratchet
3 Sockets 7/16", 1/2", 9/16"
1 Measuring tape
1 Drill
1 Bit 13/32"

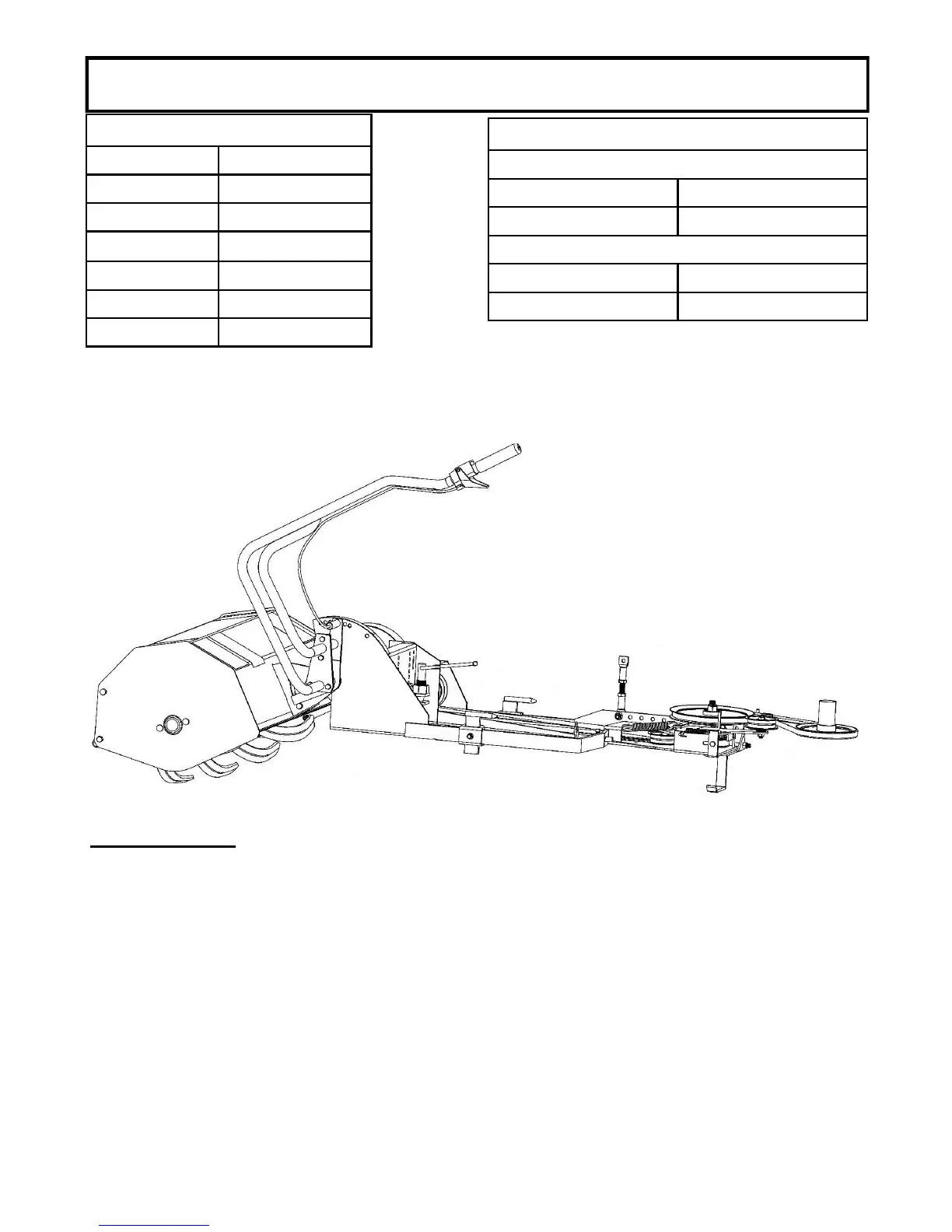

Overall view
