ASSEMBLY

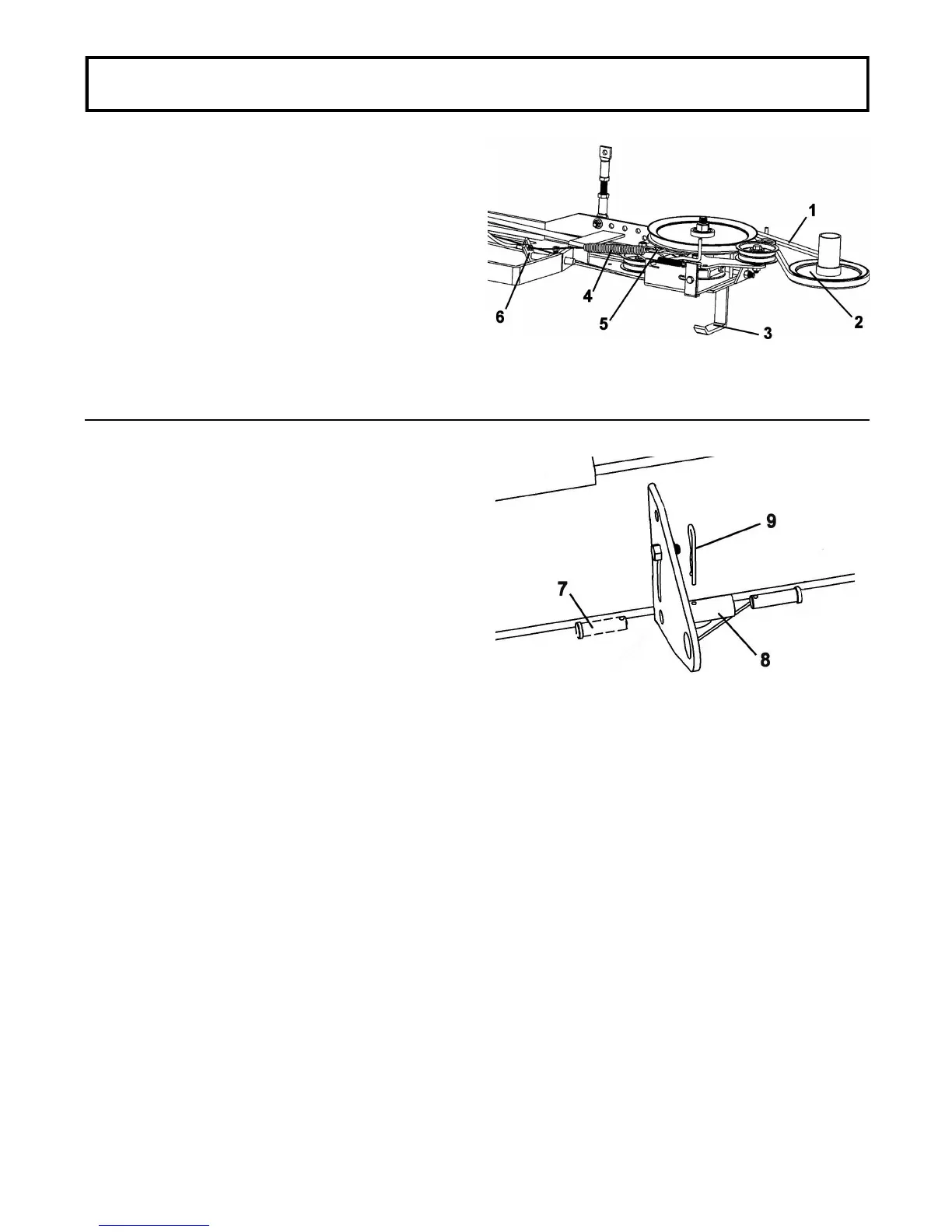

Install the drive belt (item 1) on the engine pulley (item
2).
Lift the support (item 3).
If your tractor is equipped with a manual clutch, install
the spring (item 4) at the end of cable to the extension
bar (Item 5). Attach the cable shield to the adjustable
tension rod (item 6).
Secure in place with a hair pin.
Install belt and cable
Raise the tiller and remove the pin (item 7) from locked
position and insert it in the working position (item 8)
inside of the plate.
Secure with a hair pin (item 9).
Move the pin to working position
Locked position Working position
