7
ASSEMBLY

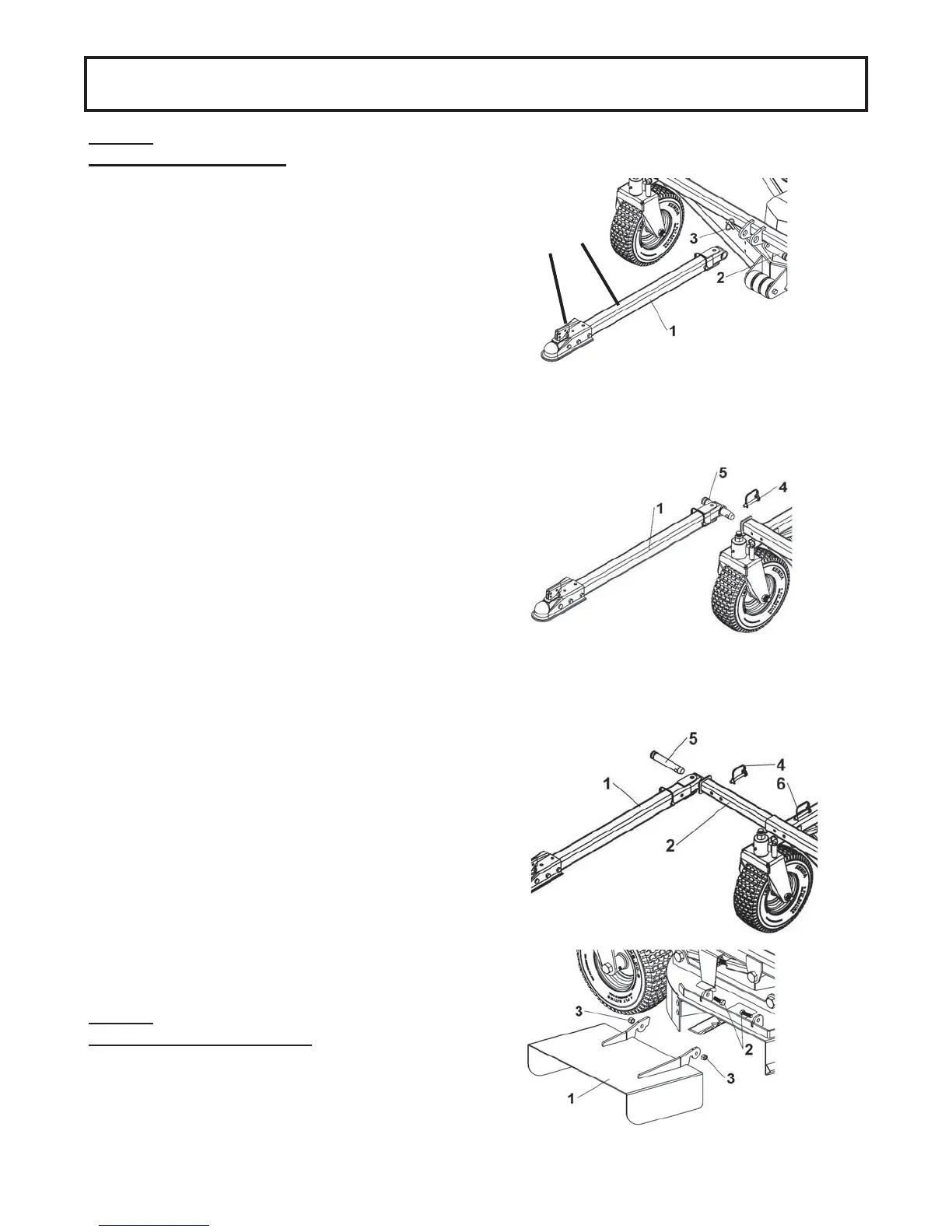

STEP 3
TOW BAR ASSEMBLY
NOTE: If you do not want to use the 2’’ ball on
your vehicle, it is possible to remove the hitch
(item A) and turn around the hitch arm (item B) to
use an attaching system with a plate instead of
using a ball.
Central position:
Put the tow bar in place (item 1) with the help of a pin
(item 2) and the lynch pin (item 3).
Left or right partial offset position:
Remove the lock pin (item 4), insert the pin (item 5) in
the tow bar (item 1) then reinsert the pin (item 5) in
place.
Left or right offset position:
Remove the lock pin (item 4) and remove the pin
(item 5). Pull the extension arm (item 2) and secure
as shown with the lock pin (item 6) from the other side
of the frame (original location not shown). Complete
the assembly by installing the tow bar (item 1) to the
extension arm with the pin (item 5) and the lock pin
(item 4)
A
B
STEP 4
DEFLECTOR ASSEMBLY
Install the deflector (item 1) with two bolts (item 2)
and two nuts (item 3).
